Control Units
CONTROL UNITS LOCATION
| Component | Location |
|---|---|

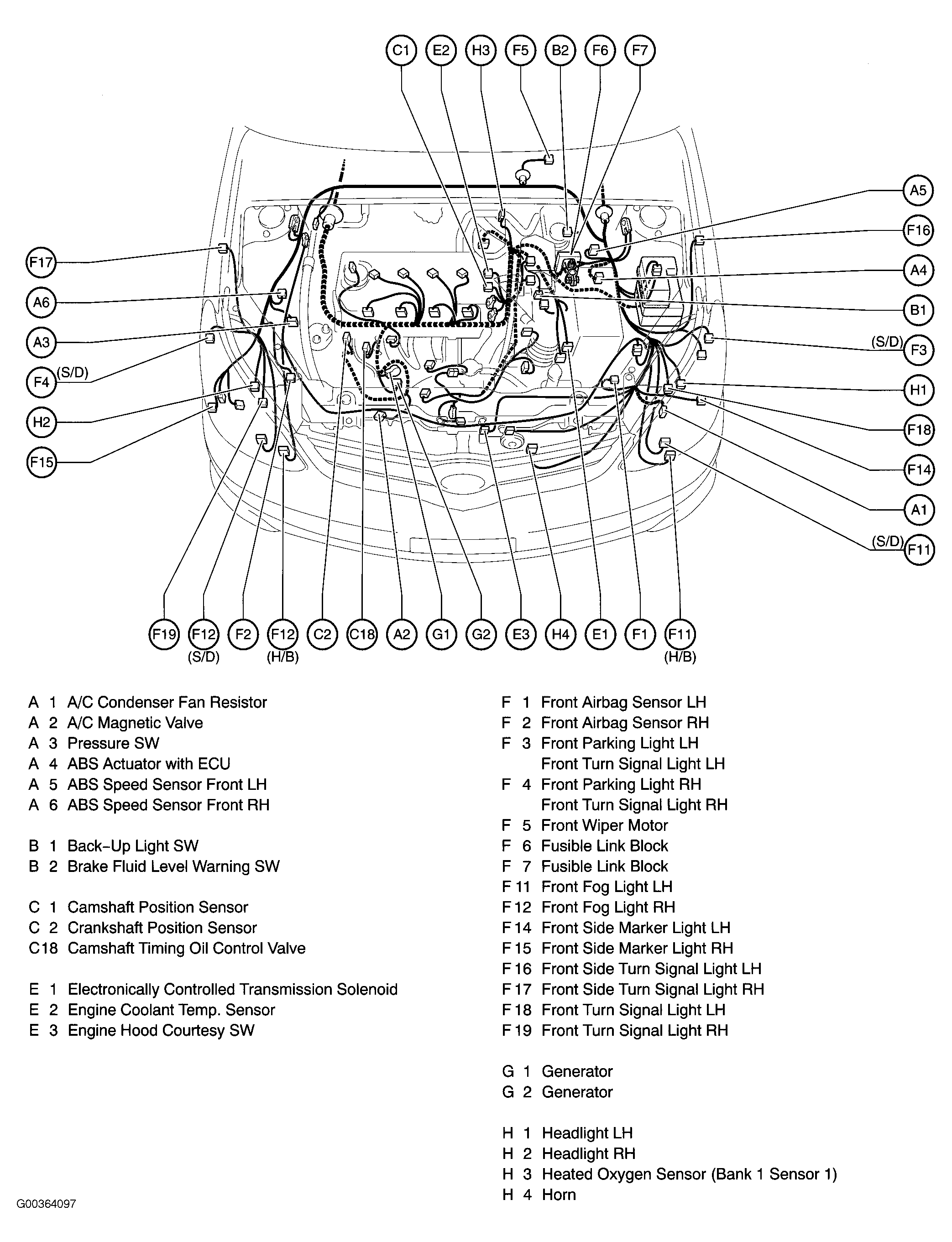

| ABS Actuator W/ECU | On left side of engine compartment, near brake master cylinder. See Figure. |
| Engine Control Module (ECM) | Behind lower right side of dash. See Figure. |
| PTC Amplifier | Behind upper right side of dash, near instrument cluster. See Figure. |
| Theft Deterrent ECU | Behind upper left side of dash. See Figure. |
| Wireless Door Lock Control Receiver | Behind upper left side of dash. See Figure. |
