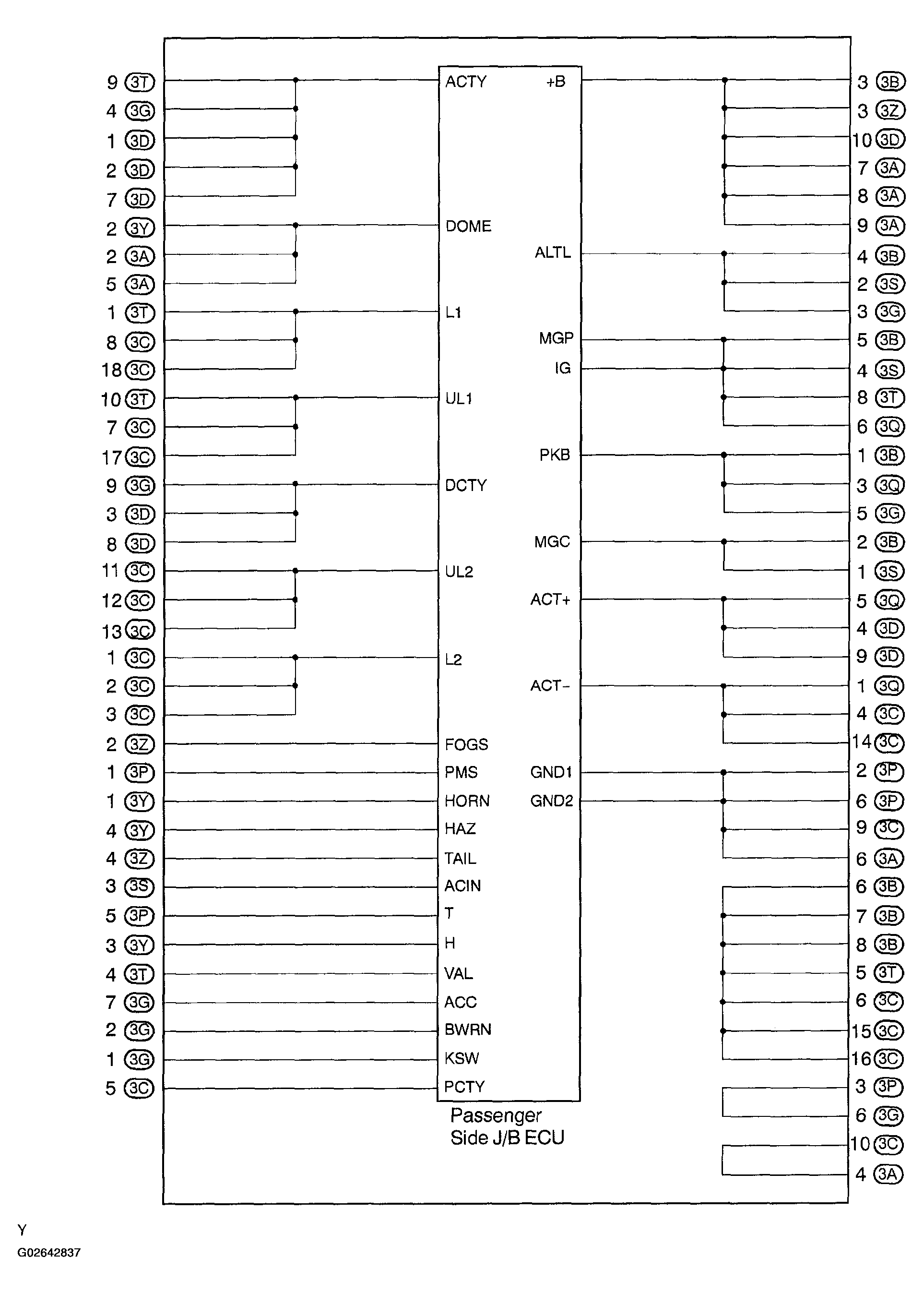

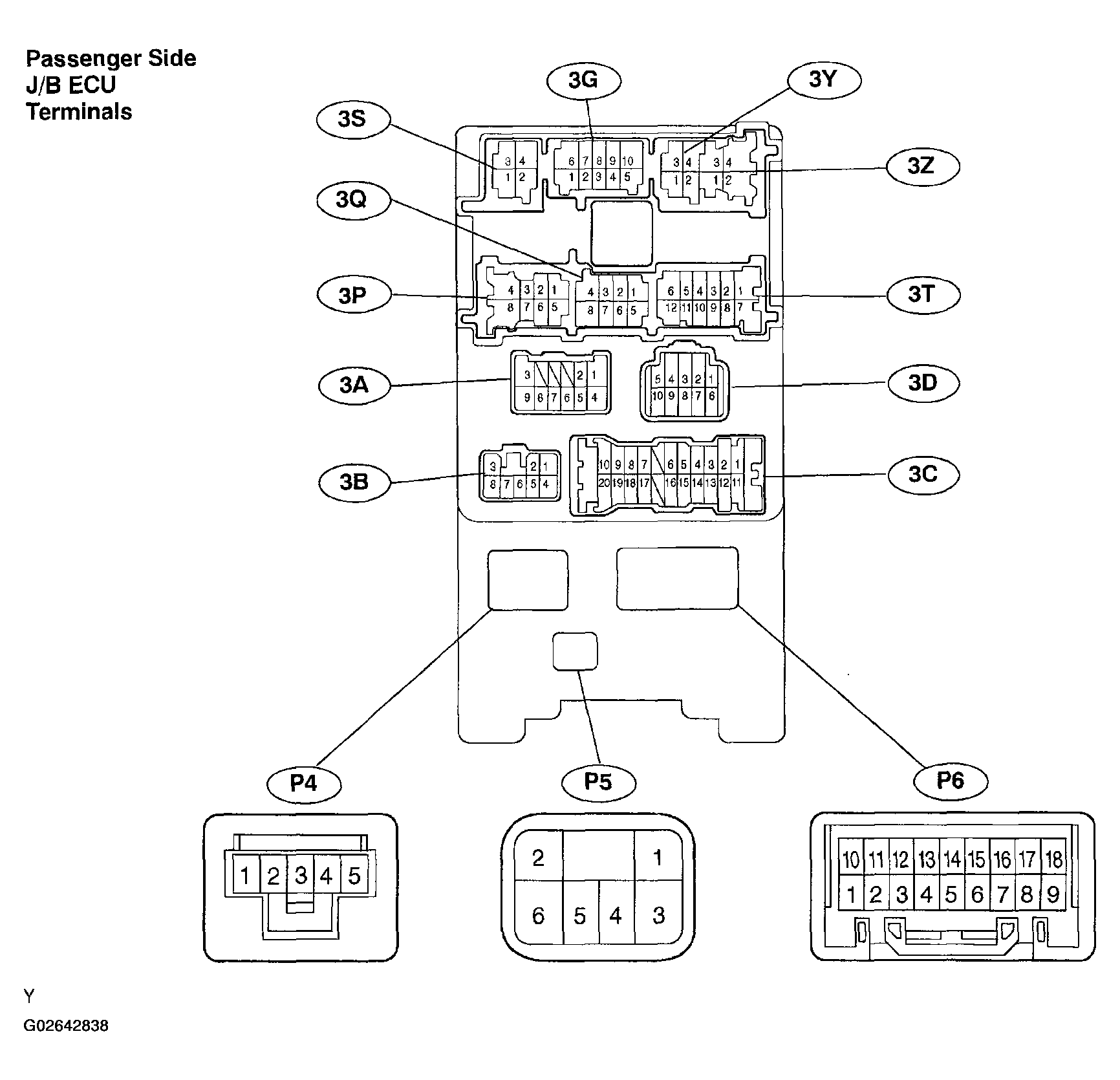

Terminals Of Ecu
WARNING: This page is about a different car, the 2005 Toyota RAV4. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002 TERMINAL NUMBER AND SPECIFIED CONDITION
| Symbols (Terminal No.) |
Wiring Color |
Condition |
Specified Condition |
| +B (3B-3) - GND1 (3C-9) |
L-Y - W-B |
Always |
9 to 14 V |
| IG (3Q-6) - GND1 (3C-9) |
R-L(SB) - W-B |
Ignition switch OFF |
Below 1 V |
| Ignition switch ON |
9 to 14 V |
| T (3P-5) - GND1 (3C-9) |
G(W) - W-B |
Light control switch OFF |
9 to 14 V |
| Light control switch TAIL or HEAD |
Below 1 V |
| KSW (3G-1) - GND1 (3C-9) |
W - W-B |
Key is inserted |
Below 1 V |
| Key is not inserted |
9 to 14 V |
| BDL (P6-18) - GND1 (3C-9) |
W-R - W-B |
Always |
9 to 14 V |
| BDL2 (P4-4) - GND1 (3C-9) |
W-L - W-B |
Always |
9 to 14V |
| LSWD (P6-1) - GND1 (3C-9) |
L-R - W-B |
Driver door is unlocked |
Below 1 V |
| Driver door is locked |
Approx. 5.7 V |
| L1 (3C-8) - GND1 (3C-9) |
L-W - W-B |
Door lock manual switch OFF or UNLOCK |
Below 1 V |
| Door lock manual switch LOCK |
Approx. 5.0 V |
| UL1 (3C-17) - GND1 (3C-9) |
L - W-B |
Door lock manual switch OFF |
Below 1 V |
| Door lock manual switch UNLOCK |
Approx. 5.0 V |
| L2 (3C-3, 3C-1) - GND1 (3C-9) |
L-O - W-B |
Door key lock and unlock switch OFF |
Approx. 5.0 V |
| Door key lock and unlock switch ON |
Below 1 V |
| UL2 (3C-12) - GND1 (3C-9) |
L-Y - W-B |
Passenger door key lock and unlock switch OFF |
Approx. 5.0 V |
| Passenger door key lock and unlock switch ON |
Below 1 V |
| ACT + (3Q-5) - GND1 (3C-9) |
L-W-B |
Door lock is operating to lock |
9 to 14 V |
| ACT - (3Q-1) - GND1 (3C-9) |
L-Y(W) - W-B |
Door lock is operating to unlock |
9 to 14 V |
| DCTY (3D-3) - GND1 (3C-9) |
R-Y - W-B |
Driver door open |
Below 1 V |
| Driver door closed |
9 to 14 V |
| PCTY (3C-5) - GND1 (3C-9) |
R-W - W-B |
Passenger door open |
Below 1 V |
| Passenger door closed |
9 to 14 V |
| ACTY (3D-2) - GND1 (3C-9) |
R-W - W-B |
Back and rear door open |
Below 1 V |
| Back and rear door closed |
9 to 14 V |
| PRG (P6-8) - GND1 (3C-9) |
L-W-B |
Wireless door control ECU communication circuit |
- |
| RDA (P6-9) - GND1 (3C-9) |
L-B - W-B |
Wireless door control ECU communication circuit |
- |
| PKB (3G-5)-GND1 (3C-9) |
W - W-B |
Parking brake is used |
Below 1 V |
| Parking brake is not used |
9 to 14 V |
| TAIL (3Z-4) - GND1 (3C-9) |
G-R(W) - W-B |
Light control switch OFF |
9 to 14 V |
| Light control switch TAIL or HEAD |
Below 1 V |
| PMS (3P-1) - Body Ground |
P(W) - Body Ground |
Always |
Below 1 V |
| GND1 (3C-9) - Body Ground |
W-B - Body Ground |
Always |
Below 1 V |
