Vapor Pressure Sensor: Inspection

INSPECT POWER SOURCE VOLTAGE OF VAPOR PRESSURE SENSOR

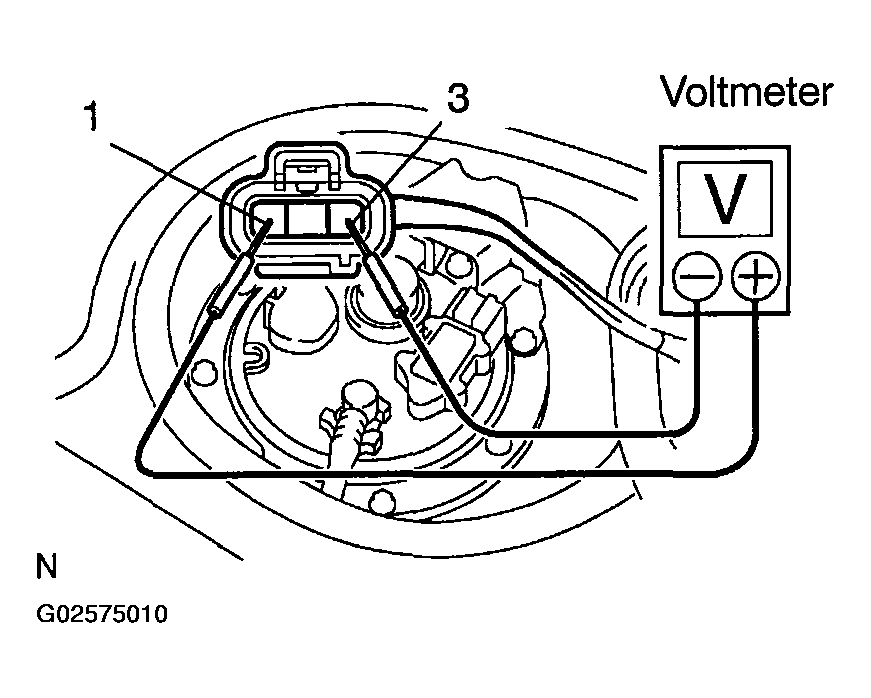

Fig 1: Measuring Voltage Between Connector Terminals Of Wire Harness Side
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Disconnect the vapor pressure sensor connector.
  NOTE: Near the fuel tank.
2. Turn the ignition switch ON.
3. Using a voltmeter, measure the voltage between connector terminals 1 and 3 of the wire harness side.
  Voltage:

  4.5 to 5.5 V

  If the volage is not as specified, the see DTC P0451, P0452, P0453: EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR/SWITCH RANGE/PERFORMANCE LOW/HIGH INPUT .
4. Turn the ignition switch to LOCK position.
5. Reconnect the vapor pressure sensor connector.
INSPECT POWER OUTPUT OF VAPOR PRESSURE SENSOR
1. Turn the ignition switch ON.
2. Remove the fuel tank cap.

  Fig 2: Measuring Output Voltage
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect a voltmeter to terminals 2 and 3, and measure the output voltage.
  Voltage:

  3.0 to 3.6 V

  If the volage is not as specified, see DTC P0451, P0452, P0453: EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR/SWITCH RANGE/PERFORMANCE LOW/HIGH INPUT .
4. Reinstall the fuel tank cap.
