On-Vehicle Inspection

Check that the throttle linkage moves smoothly.

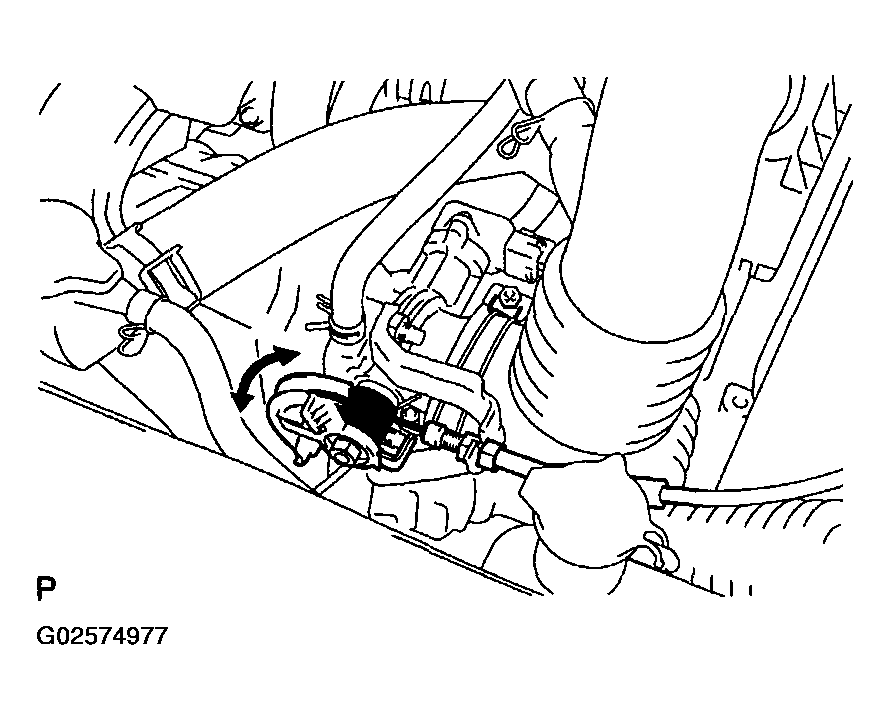

Fig 1: Checking Throttle Linkage Moves Smoothly

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the throttle position sensor connector.
2. Using an ohmmeter, measure the resistance between each terminal.
   TERMINALS RESISTANCE CHART



   Clearance between lever and stop screw	Between terminals	Resistance
   0 mm (0 in.)	VTA - E2	0.2 - 5.7 kΩ
   Throttle valve fully open	VTA - E2	2.0 - 10.2 kΩ
   Always	VC - E2	2.5 - 5.9 kΩ

3. Reconnect the throttle position sensor connector.

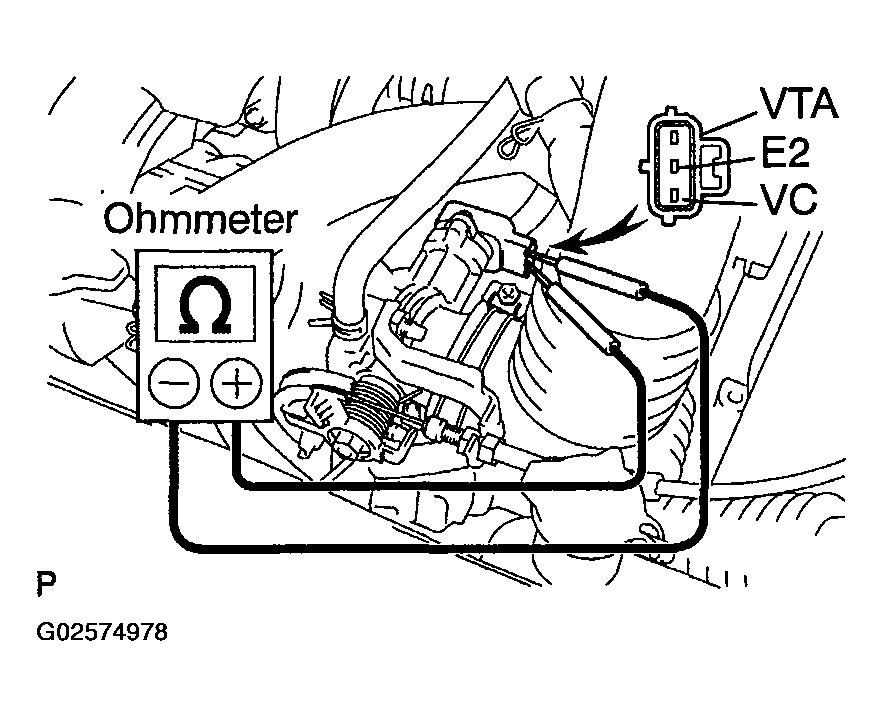

Fig 2: Measuring Resistance Between Each Terminal

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
