Throttle Body: Components

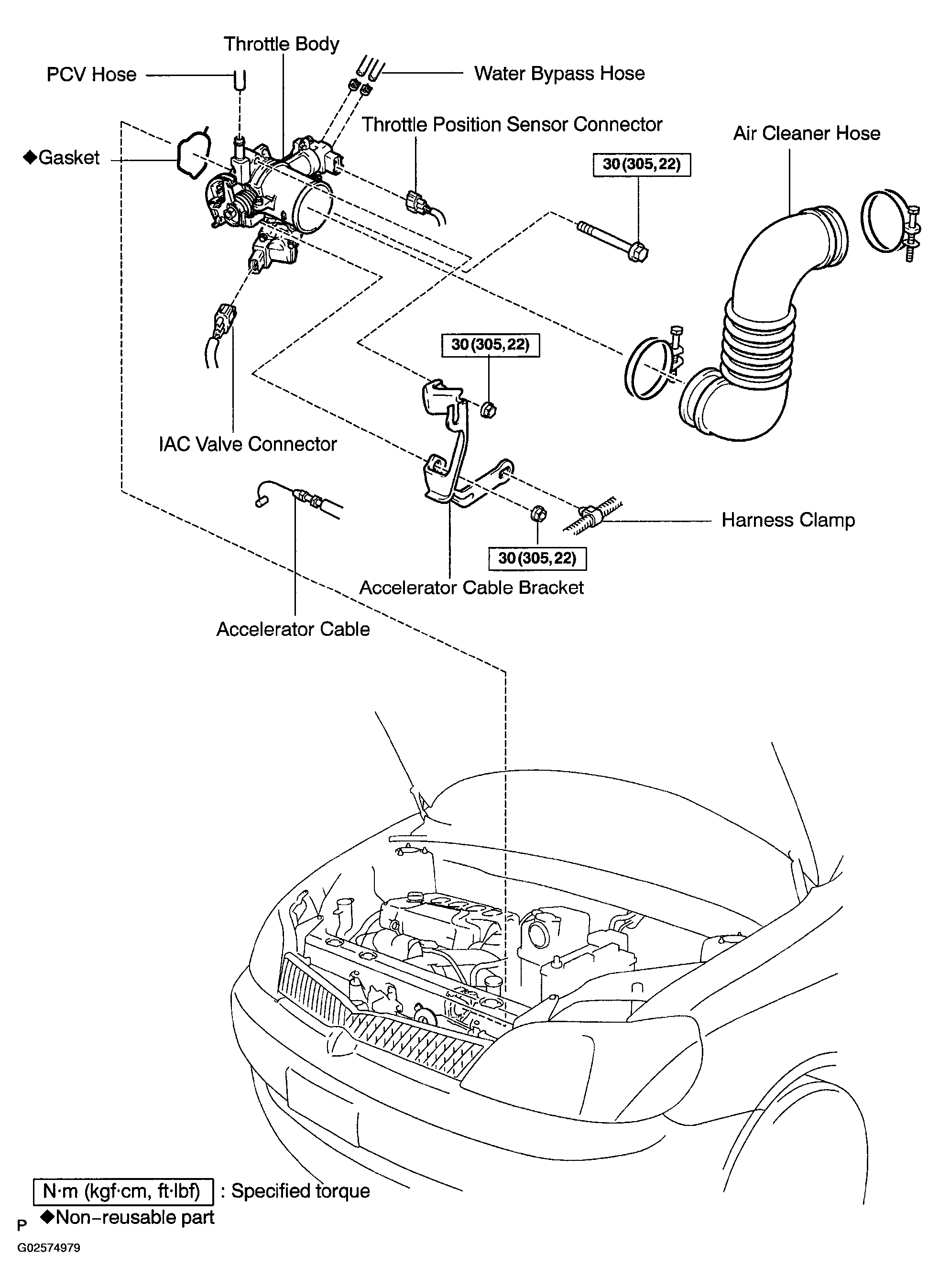

Fig 1: Identifying Throttle Body Components

G02574979

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
