Mass Air Flow (MAF) Meter: Components

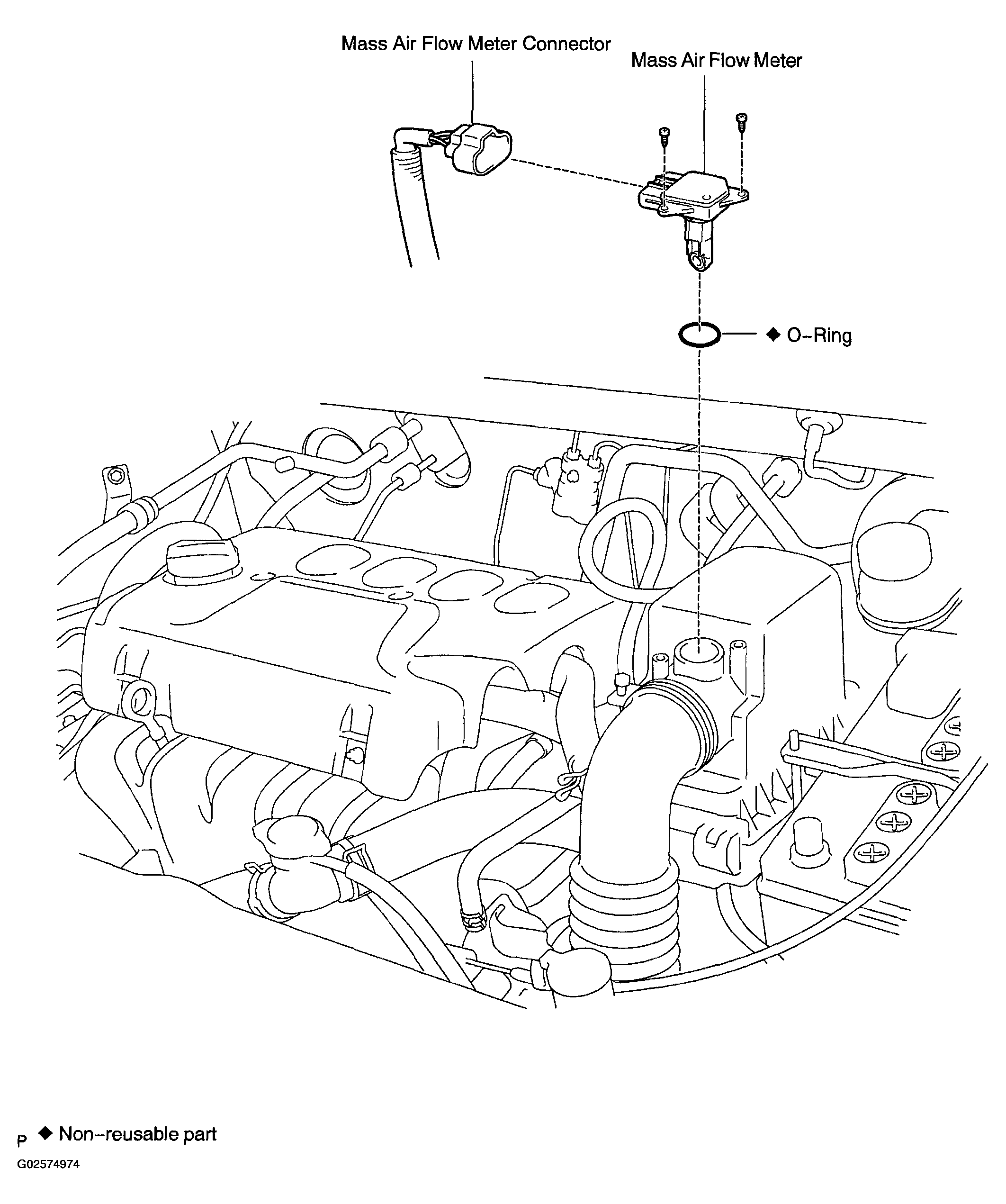

Fig 1: Identifying Mass Air Flow (MAF) Meter Components

G02574974

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
