Camshaft Timing Oil Control Valve: Components

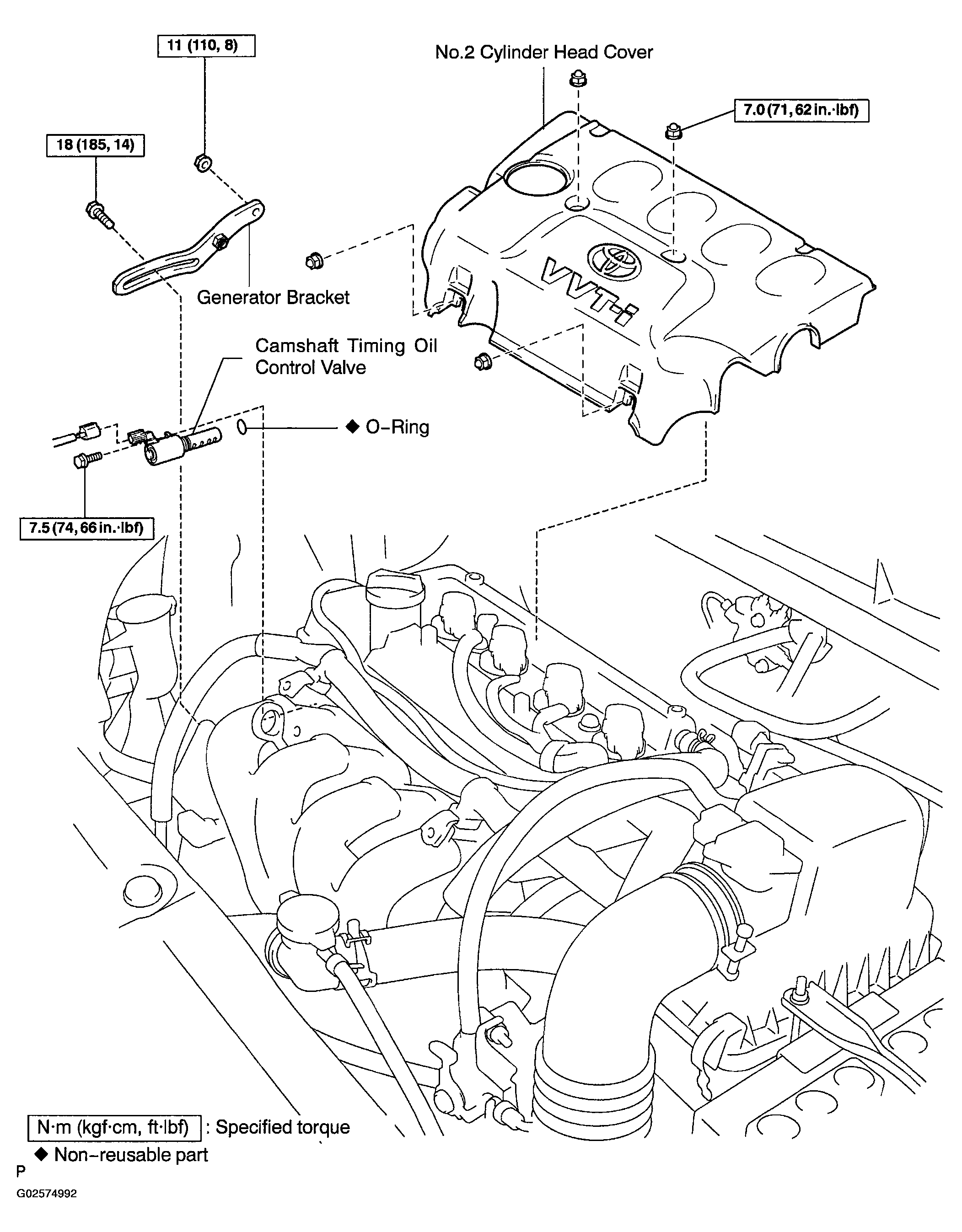

Fig 1: Identifying Camshaft Timing Oil Control Valve Components

G02574992

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
