Engine - Diagnostics
>>
Parts Location
Parts Location

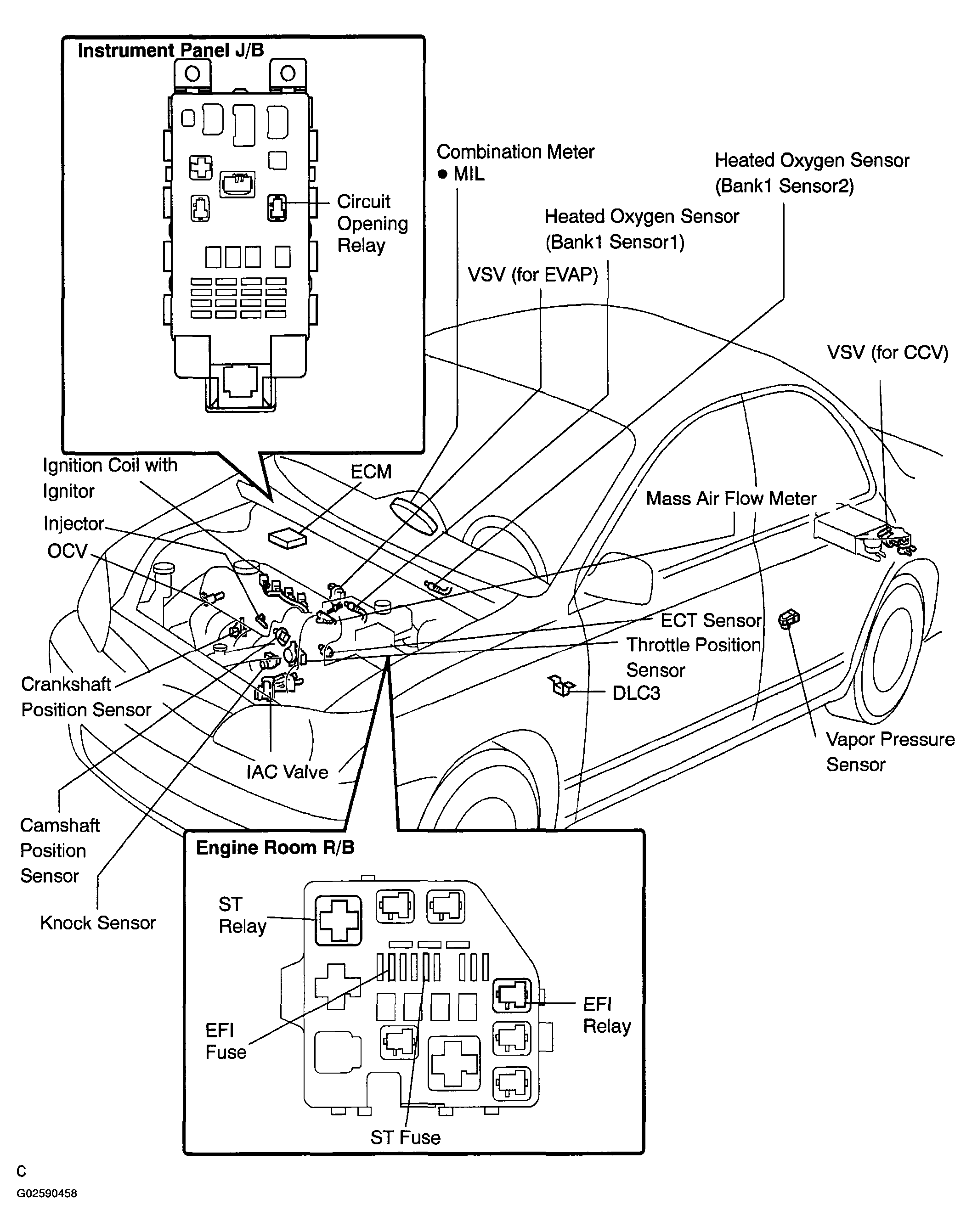

Fig 1: Identifying Parts Location (Instrument Panel J/B And Engine Room R/B)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
