Charging System: Generator: Removal

  1. Disconnect the wire clamp from the wire clip on the rectifier end frame.
  2. Remove the rubber cap and nut, and disconnect the generator wire.
  3. Disconnect the generator connector.
  4. Disconnect the harness clamp from the generator.

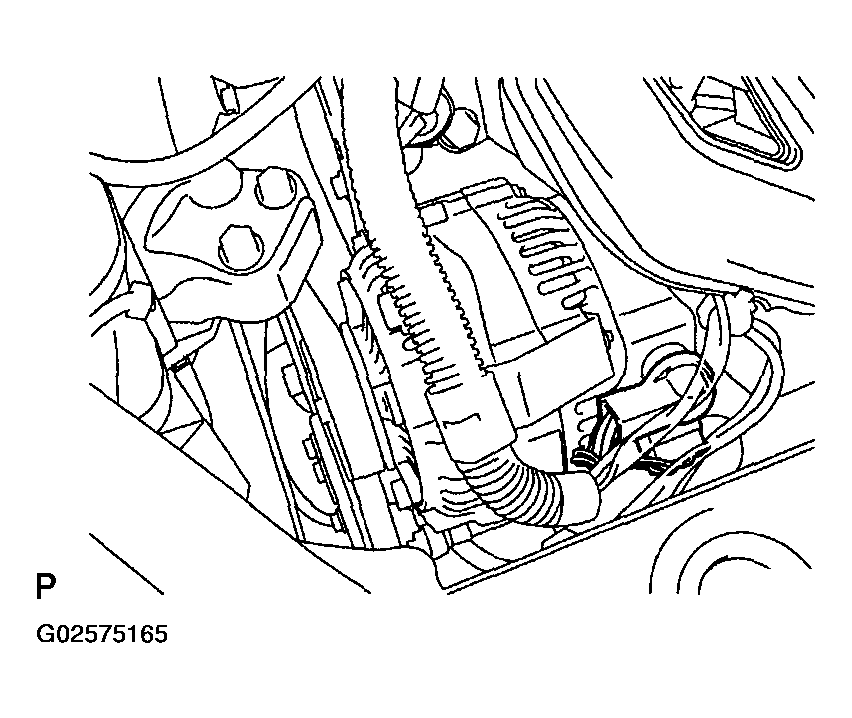

    Fig 1: Disconnecting Wire Clamp From Wire Clip On Rectifier End Frame
    G02575165Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. Loosen the 2 bolts and remove the drive belt.
  6. Remove the 2 bolts and generator.

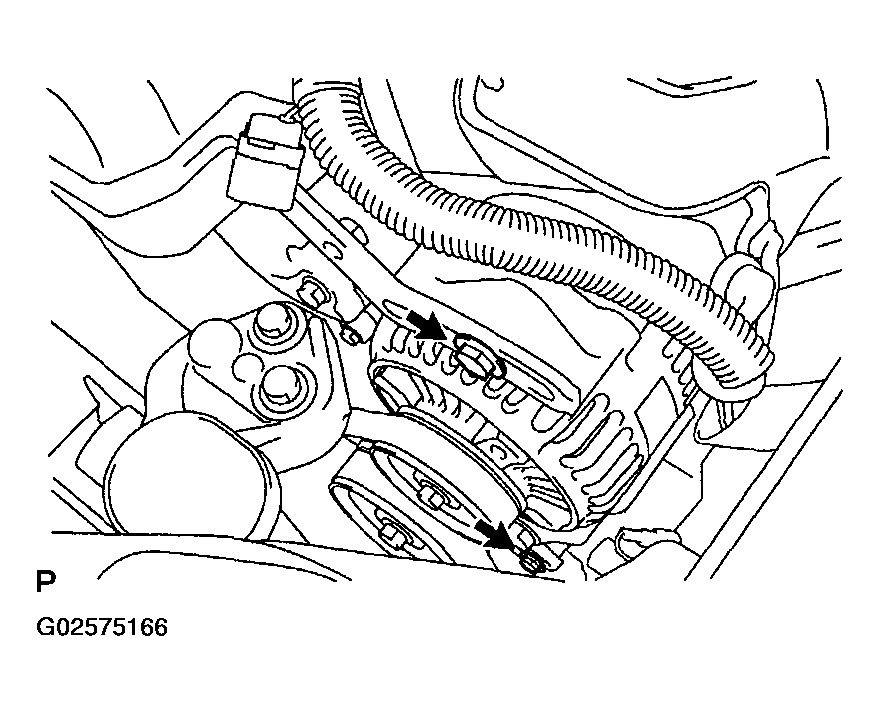

    Fig 2: Removing Bolts Of Generator
    G02575166Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
