Charging System: Generator: Installation

  1. Install the generator and temporally tighten the 2 bolts.
  2. Install the drive belt and adjust the belt tension (See ON-VEHICLE INSPECTION  ).
  3. Tighten the 2 bolts.

    Torque:

    14 mm head 18 N.m (185 kgf.cm, 14 ft.lbf)

    17 mm head 54 N.m (550 kgf.cm, 40 ft.lbf)

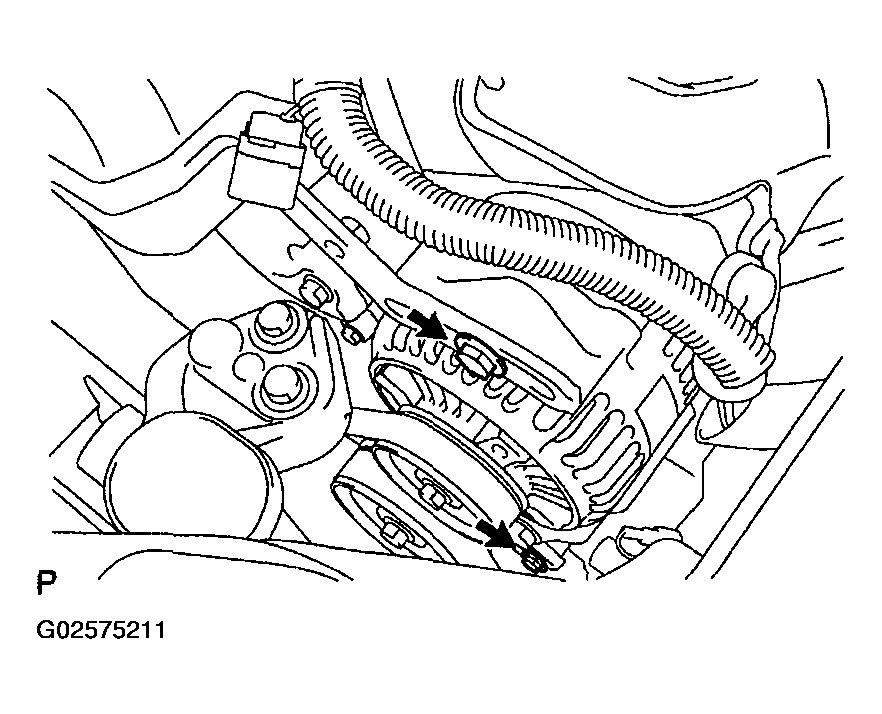

    Fig 1: Installing Generator Bolt
    G02575211Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Connect the generator connector.
  5. Connect the harness clamp.
  6. Connect the generator wire, and install the nut and rubber cap.
  7. Connect the generator wire, and install the rubber cap and nut.
