Charging System: Generator: Disassembly

  1. REMOVE REAR END COVER
    1. Remove the nut and terminal insulator.

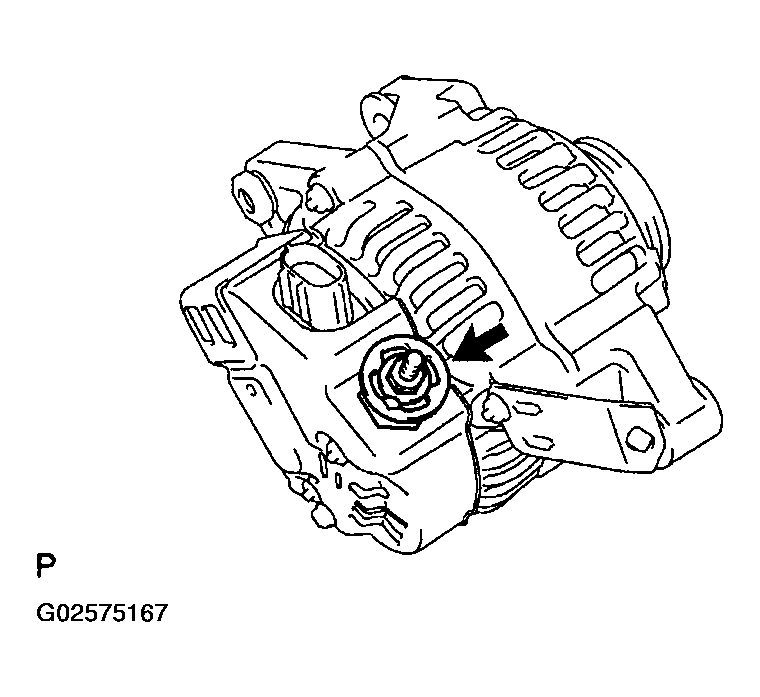

      Fig 1: Removing Nut Of Terminal Insulator
      G02575167Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the bolt, 3 nuts, plate terminal and end cover.

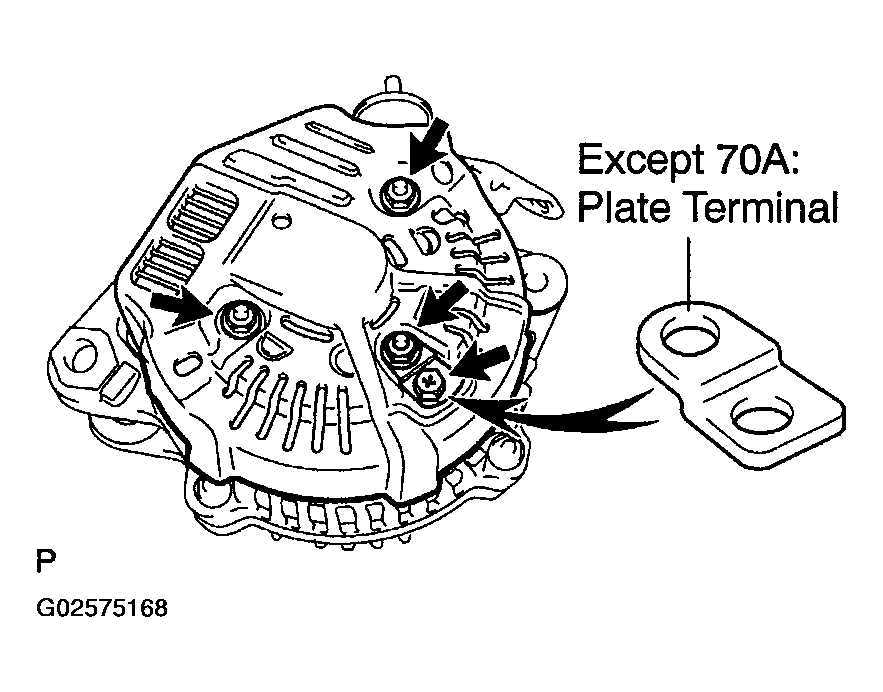

    Fig 2: Removing Plate Terminal And End Cover
    G02575168Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE BRUSH HOLDER AND VOLTAGE REGULATOR
    1. Remove the brush holder cover from the brush holder.
    2. Remove the 5 screws, brush holder and voltage regulator.
    3. Remove the seal plate from the rectifier end frame.

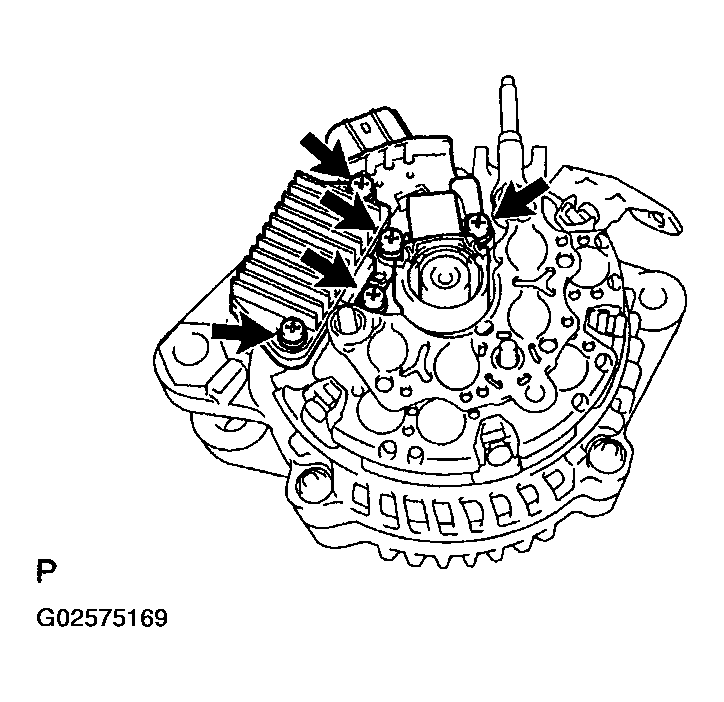

    Fig 3: Removing Screws
    G02575169Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE RECTIFIER HOLDER
    1. Remove the 4 screws and rectifier holder.
    2. Remove the 4 rubber insulators.

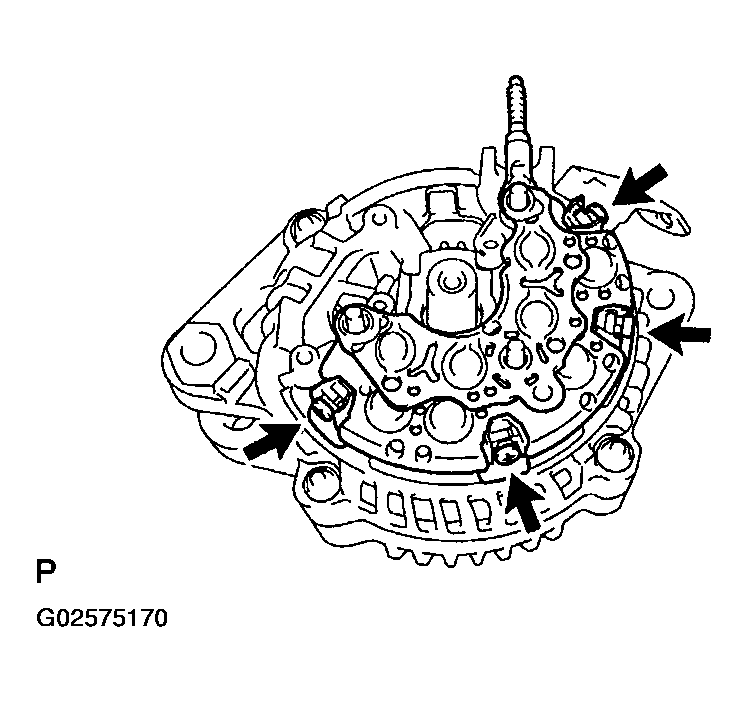

    Fig 4: Removing Rubber Insulators
    G02575170Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE PULLEY
    1. Hold SST (A) with a torque wrench, and tighten SST (B) clockwise to the specified torque.

      SST 09820-63011

      Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

    2. Check that SST (A) is secured to the rotor shaft.

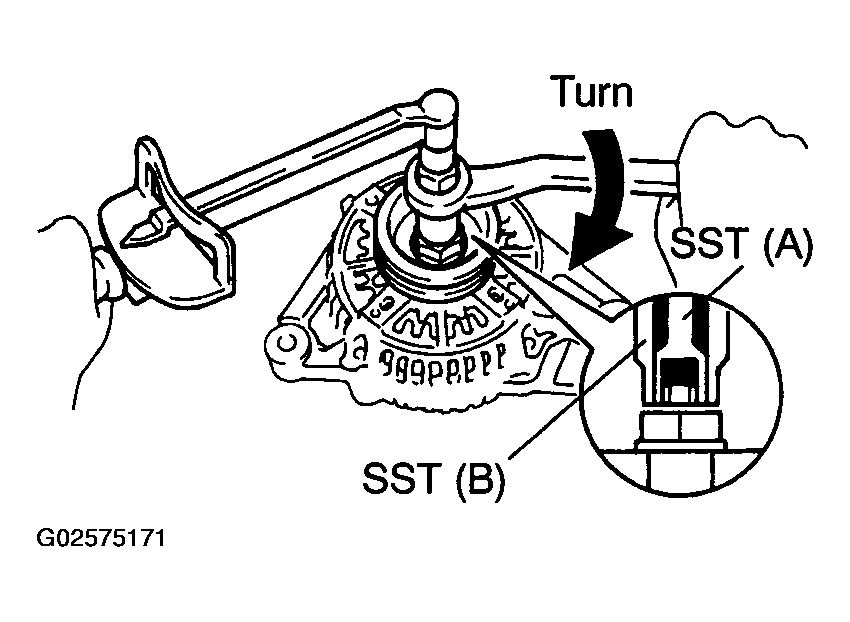

      Fig 5: Tightening SST Clockwise
      G02575171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Mount SST (C) in a vise.
    4. Insert SST (B) into SST (C), and attach the pulley nut to SST (C).
      Fig 6: Inserting SST Into SST
      G02575172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. To loosen the pulley nut, turn SST (A) in the direction shown in the illustration.
      NOTE: To prevent damage to the rotor shaft, do not loosen the pulley nut more than one-half of a turn.
    6. Remove the generator from SST (C).
      Fig 7: Turning SST
      G02575173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Turn SST (B), and remove SST (A and B).
    8. Remove the pulley nut and pulley.

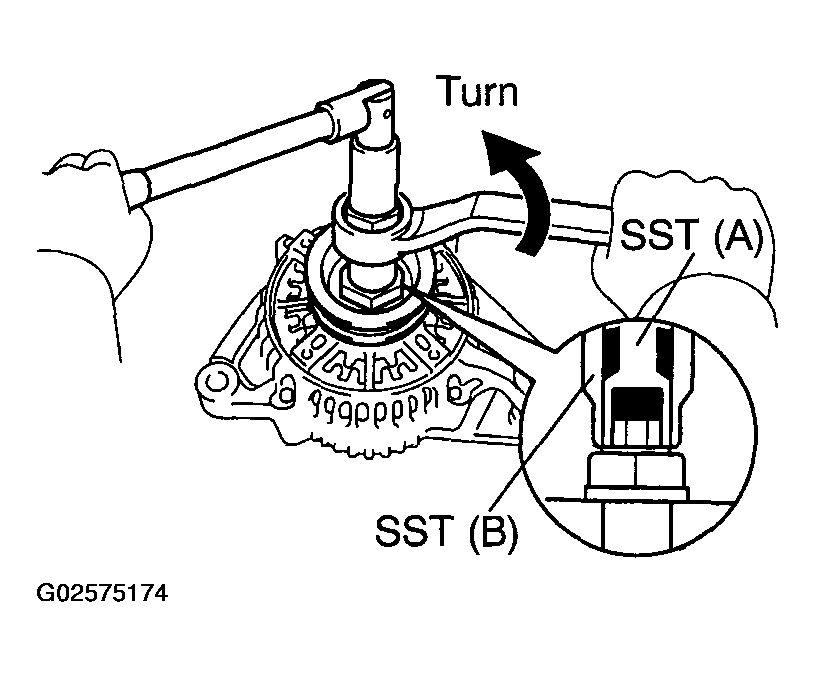

    Fig 8: Removing SST
    G02575174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. REMOVE RECTIFIER END FRAME
    1. Remove the 4 nuts and wire clip.

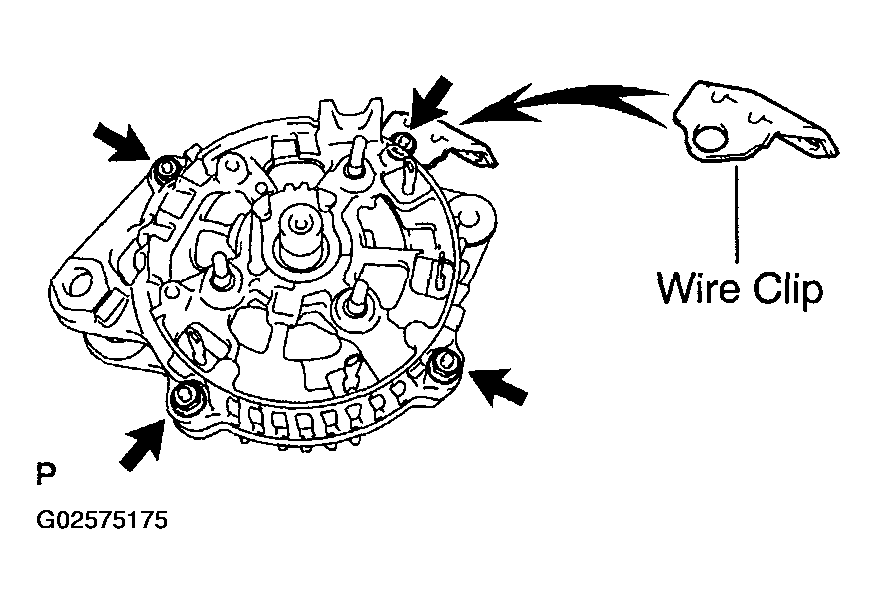

      Fig 9: Removing Nuts Of Wire Clip
      G02575175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the rectifier end frame.

      SST 09286-46011

    3. Remove the generator washer from the rotor
  6. REMOVE ROTOR FROM DRIVE END FRAME
    Fig 10: Removing Rectifier End Frame
    G02575176Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
