Body & Frame: Windows: Windshield: Removal

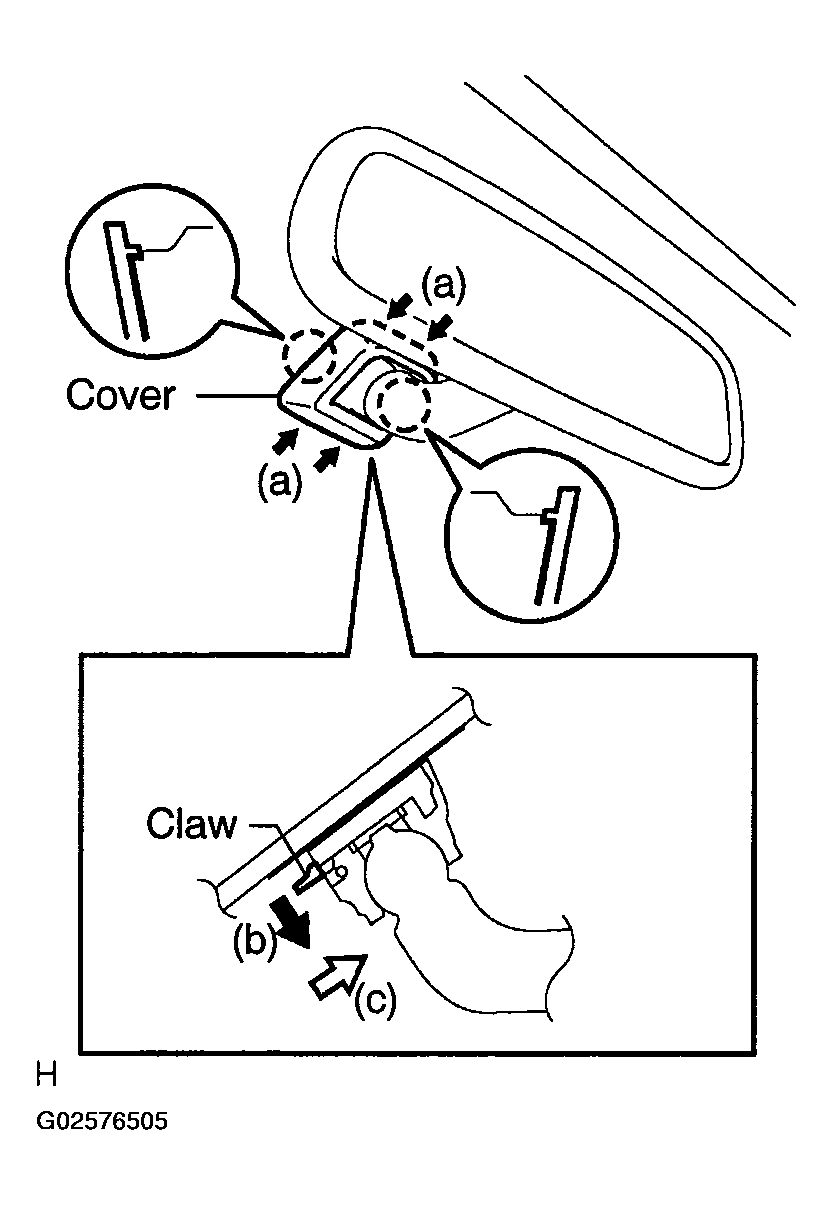

1. Push the (a) part in the direction indicated by the arrow marks and remove the cover.
2. Pushing the claw in the (b) direction, slide the inner rear view mirror in the (c) direction and remove it.

1. Pry out the clips by your hand.
2. Pull the garnish upward to remove it.
3. Remove the other using the same procedures described above.

Remove the 2 wiper arm head caps, 2 nuts and 2 wiper arms.

1. Remove the hood to cowl top seal.
2. Remove the cowl top ventilator center.
   Fig 2: Identifying Front Pillar Garnish

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 7 clips, then pull out the cowl top ventilator louver RH and LH.

Sedan model: (See  REMOVAL - SEDAN W/2DOOR TYPE  or  REMOVAL - SEDAN W/4DOOR TYPE  )

Hatchback model: (See  REMOVAL  )

1. Using a knife, cut off the moulding as shown in the illustration.
   NOTE: Do not damage the body with the knife.
2. Remove the remaining moulding.

Fig 3: Cutting Off Moulding

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Push piano wire through between the body and glass from the interior.
2. Tie objects that can serve as handle (for example, wooden blocks) to all wire ends.
   NOTE: Apply protective tape to the outer surface to prevent the surface from being scratched.

Fig 4: Pushing Piano Wire Through Between Body And Glass From Interior

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

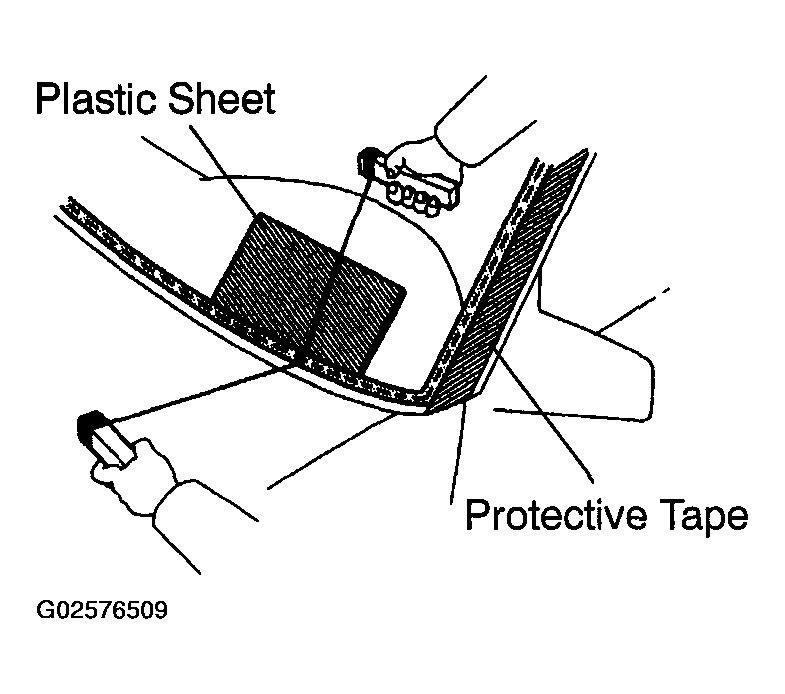

Fig 5: Applying Protective Tape To Outer Surface To Prevent

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
