Home >> Toyota >> 2005 >> ECHO 2D Sedan, Standard >> Repair and Diagnosis >> Body & Frame >> Windows >> Windshield >> Components

Body & Frame: Windows: Windshield: Components

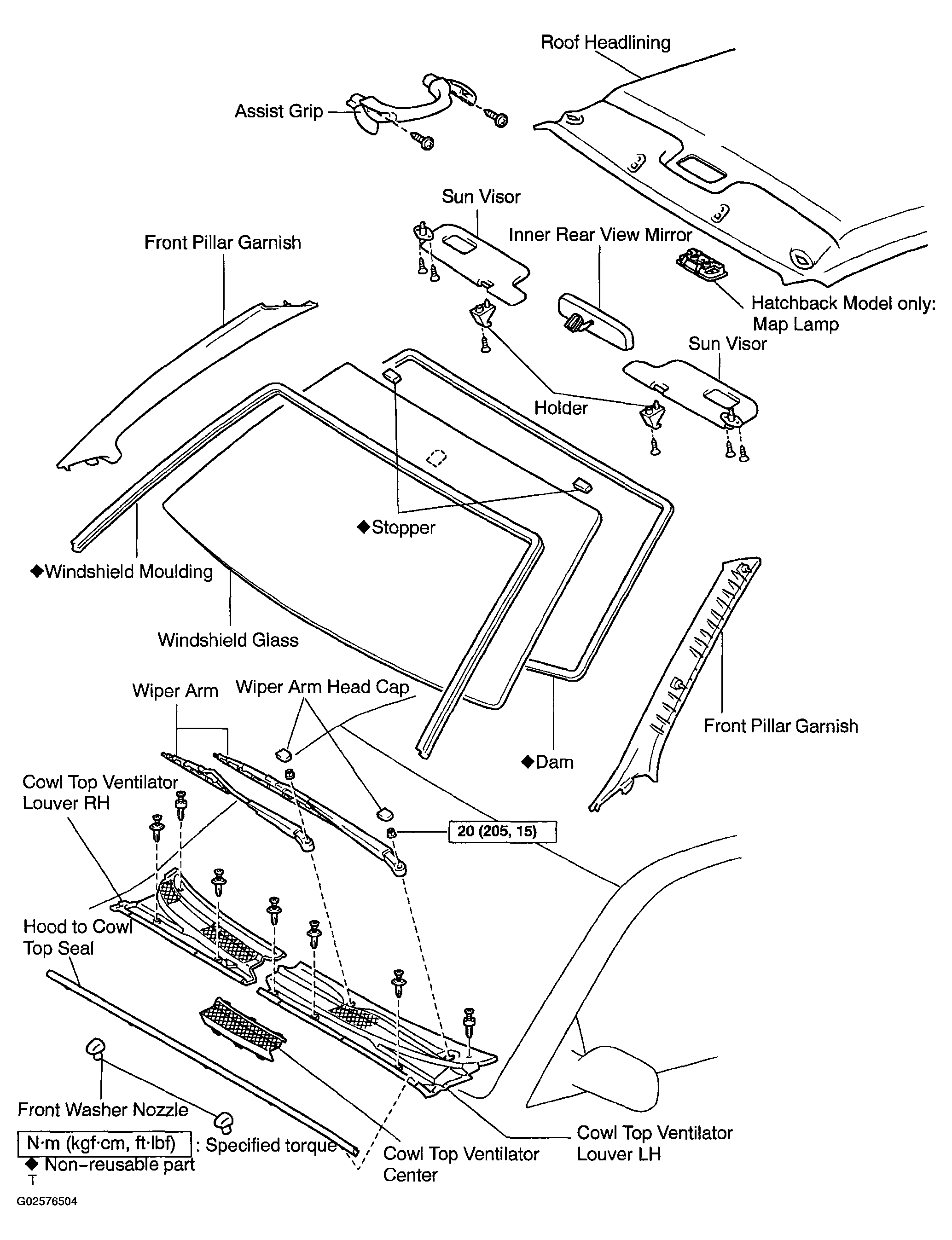

Fig 1: Identifying Components Of Windshield

G02576504

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
