Power Mirror Control System: Inspection

INSPECT MIRROR SWITCH CONTINUITY

MIRROR SWITCH CONTINUITY (LEFT SIDE FOR LEFT/RIGHT ADJUSTMENT SWITCH)

Switch position	Tester connection	Specified condition
OFF	-	No continuity
UP	3 - 7 5 - 6	Continuity
DOWN	3 - 6 5 - 7	Continuity
LEFT	4 - 7 5 - 6	Continuity
RIGHT	5 - 7 4 - 6	Continuity

MIRROR SWITCH CONTINUITY (RIGHT SIDE FOR LEFT/RIGHT ADJUSTMENT SWITCH)

Switch position	Tester connection	Specified condition
OFF	-	No continuity
UP	2 - 7 5 - 6	Continuity
DOWN	2 - 6 5 - 7	Continuity
LEFT	1 - 7 5 - 6	Continuity
RIGHT	1 - 6 5 - 7	Continuity

If continuity is not as specified, replace the switch.

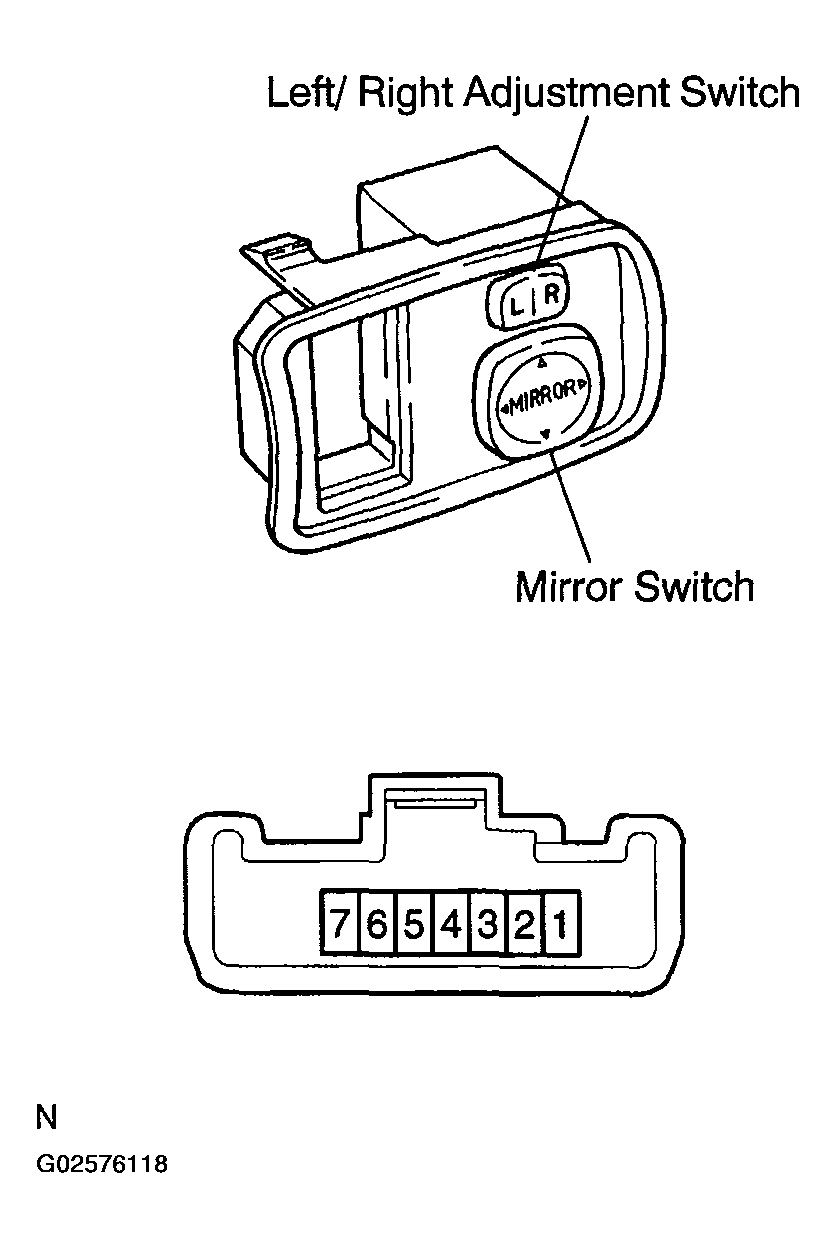

Fig 1: Inspecting Mirror Switch Continuity

G02576118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT MIRROR MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 1, and check that the mirror turns to the right side.

  Fig 2: Inspecting Mirror Motor Operation (Mirror Turns To Right Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, and check that the mirror turns to the left side.

  Fig 3: Inspecting Mirror Motor Operation (Mirror Turns To Left Side)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 5, and check that the mirror turns downward.

  Fig 4: Inspecting Mirror Motor Operation (Mirror Turns Downwards)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Reverse the polarity, and check that the mirror turns upward.
If operation is not as specified, replace the mirror assembly.

Fig 5: Inspecting Mirror Motor Operation (Mirror Turns Upwards)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
