Automatic Transaxle System: Operation

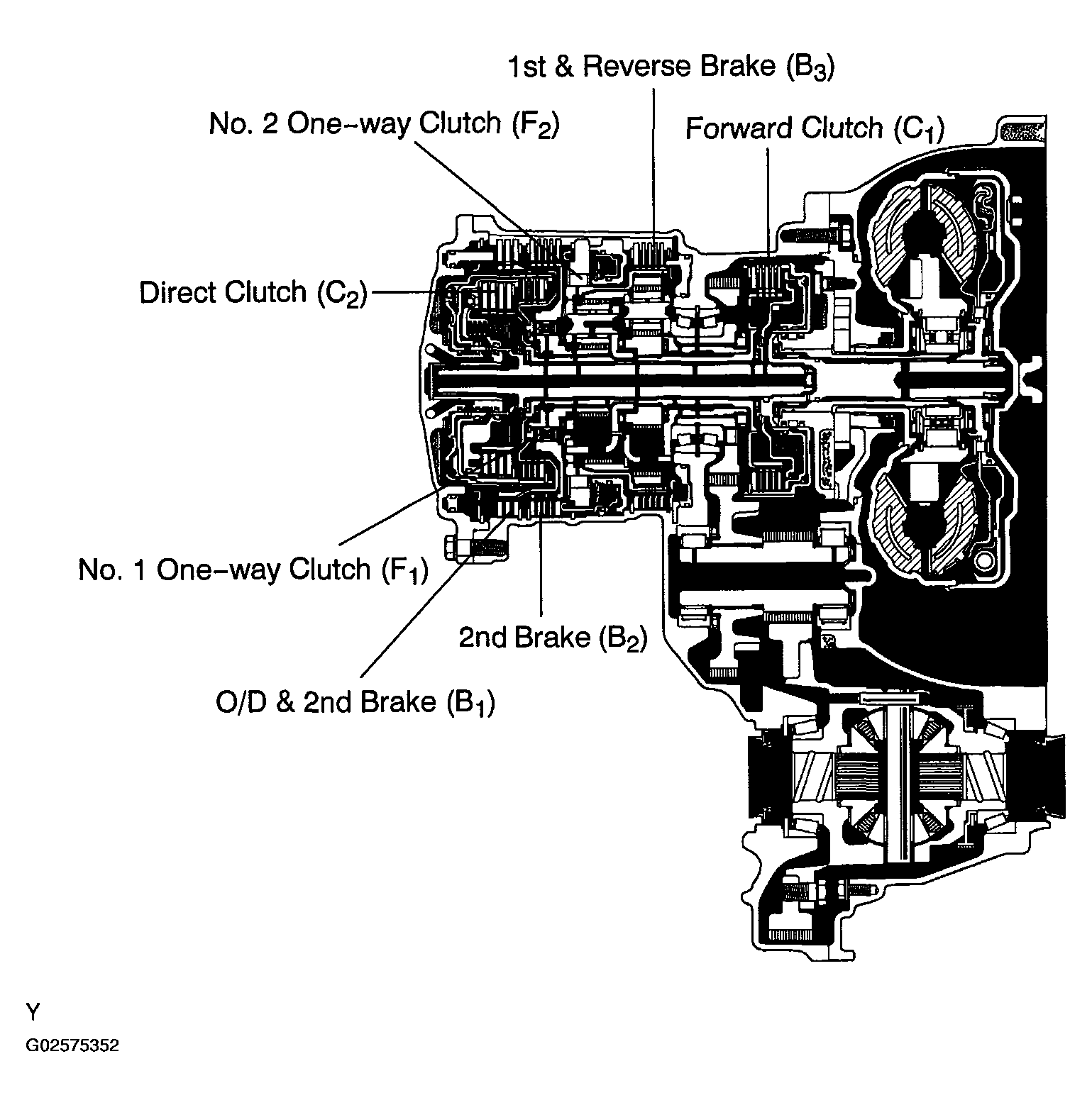

Fig 1: Identifying Clutch System Operation
G02575352Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

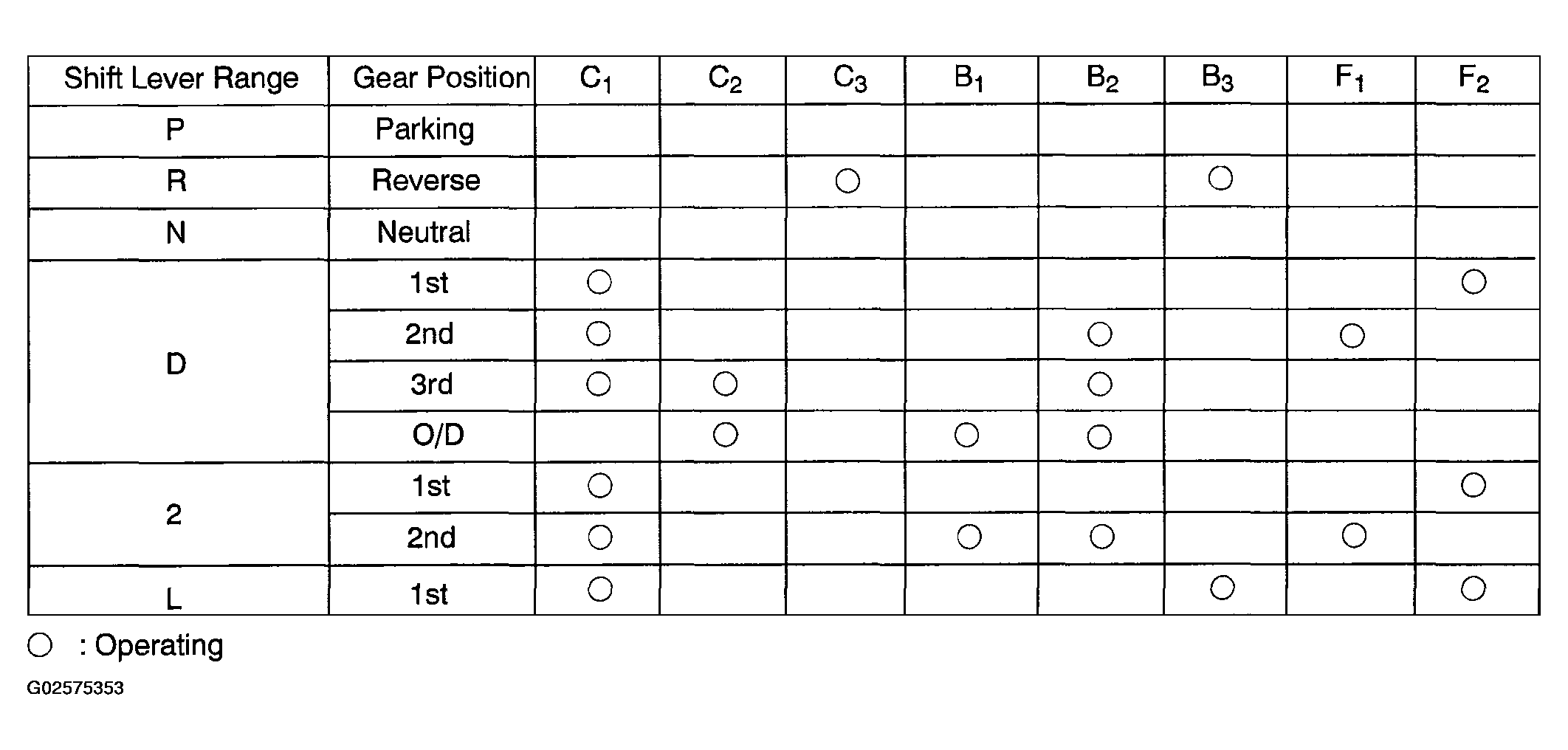

Fig 2: Shift Leave Chart
G02575353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
