SST (Special Service Tools)

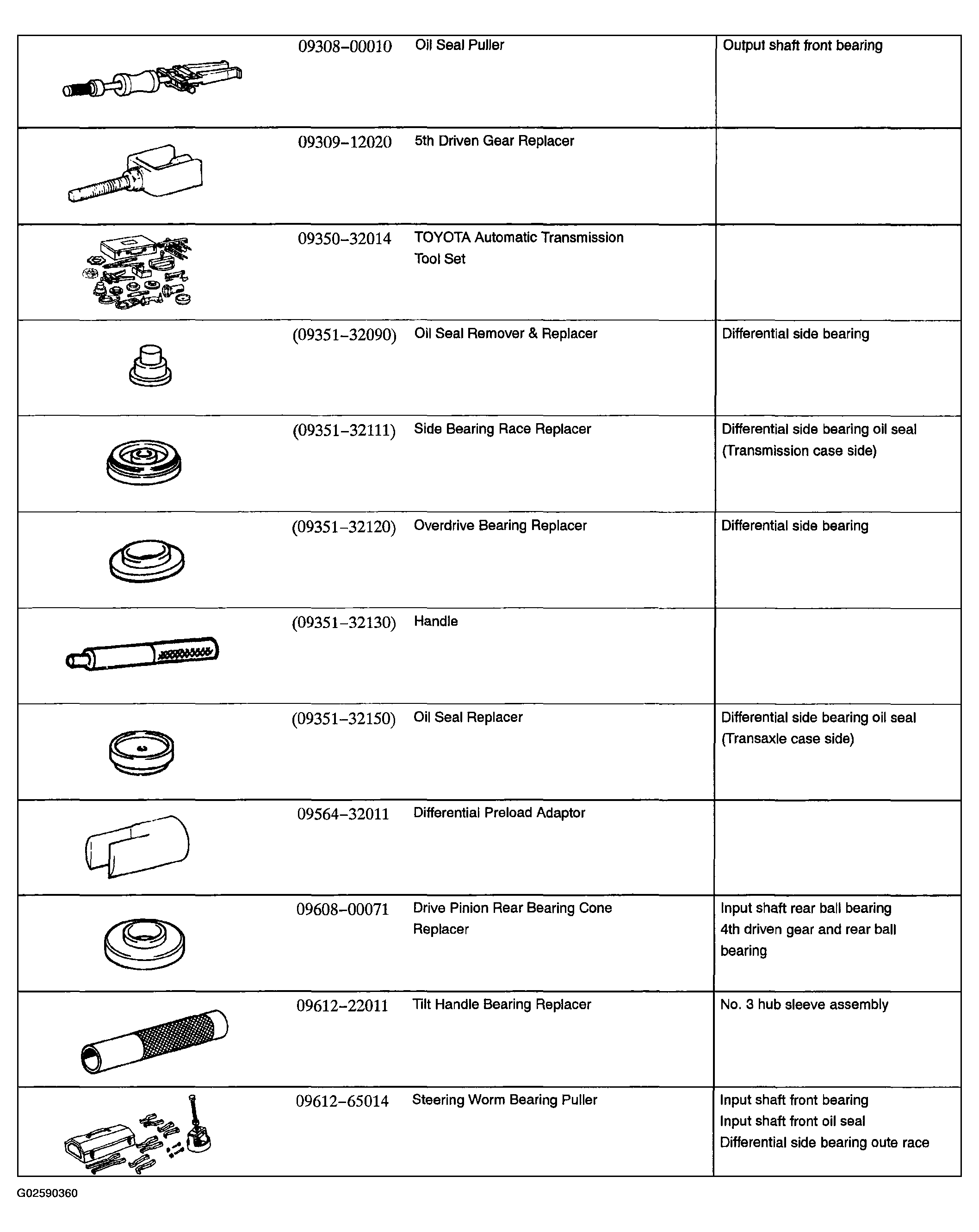

Fig 1: Identifying Manual Transaxle Special Service Tools (1 of 2)
G02590360Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

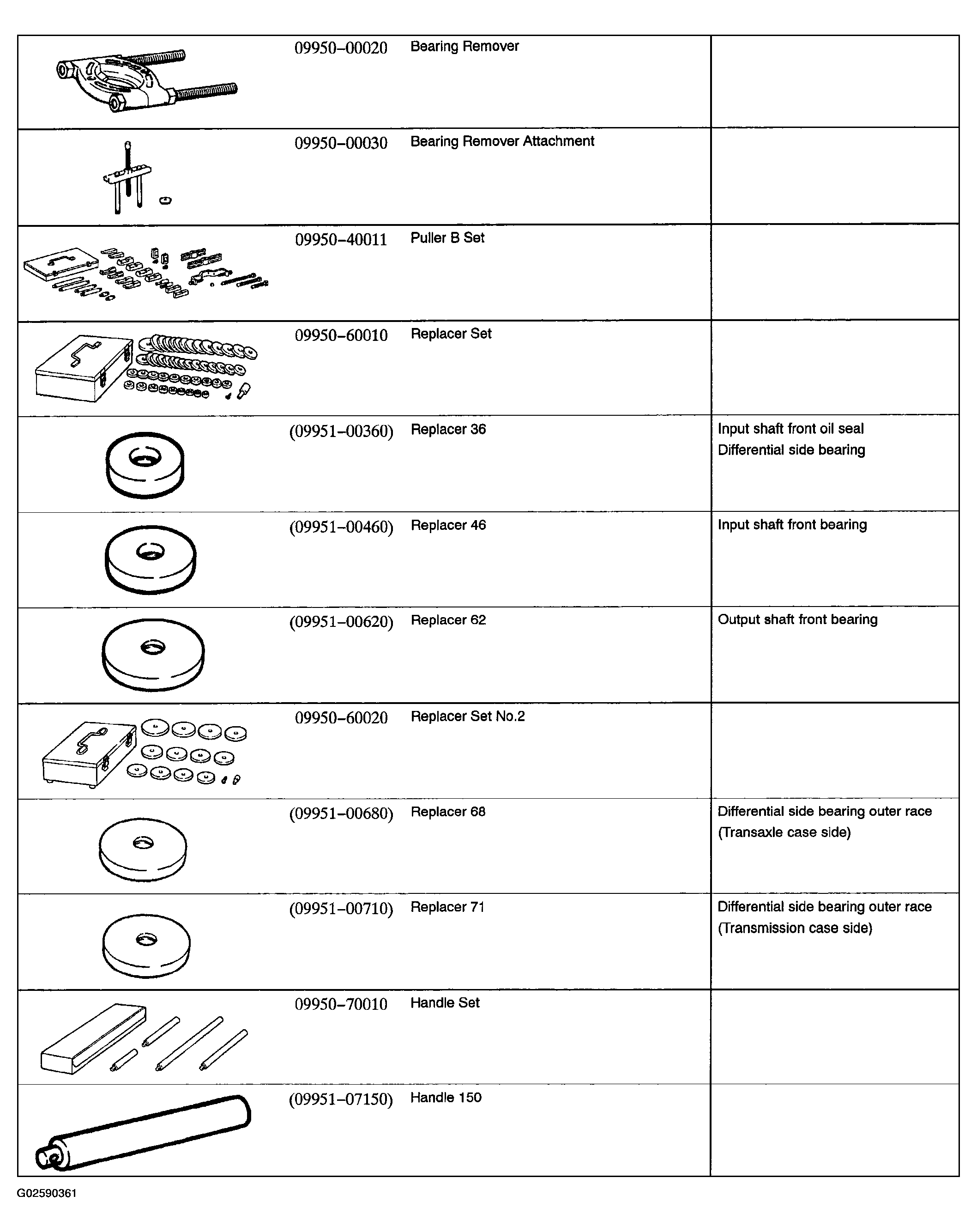

Fig 2: Identifying Manual Transaxle Special Service Tools (2 of 2)
G02590361Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
