ECM Power Source Circuit: Wiring Diagram

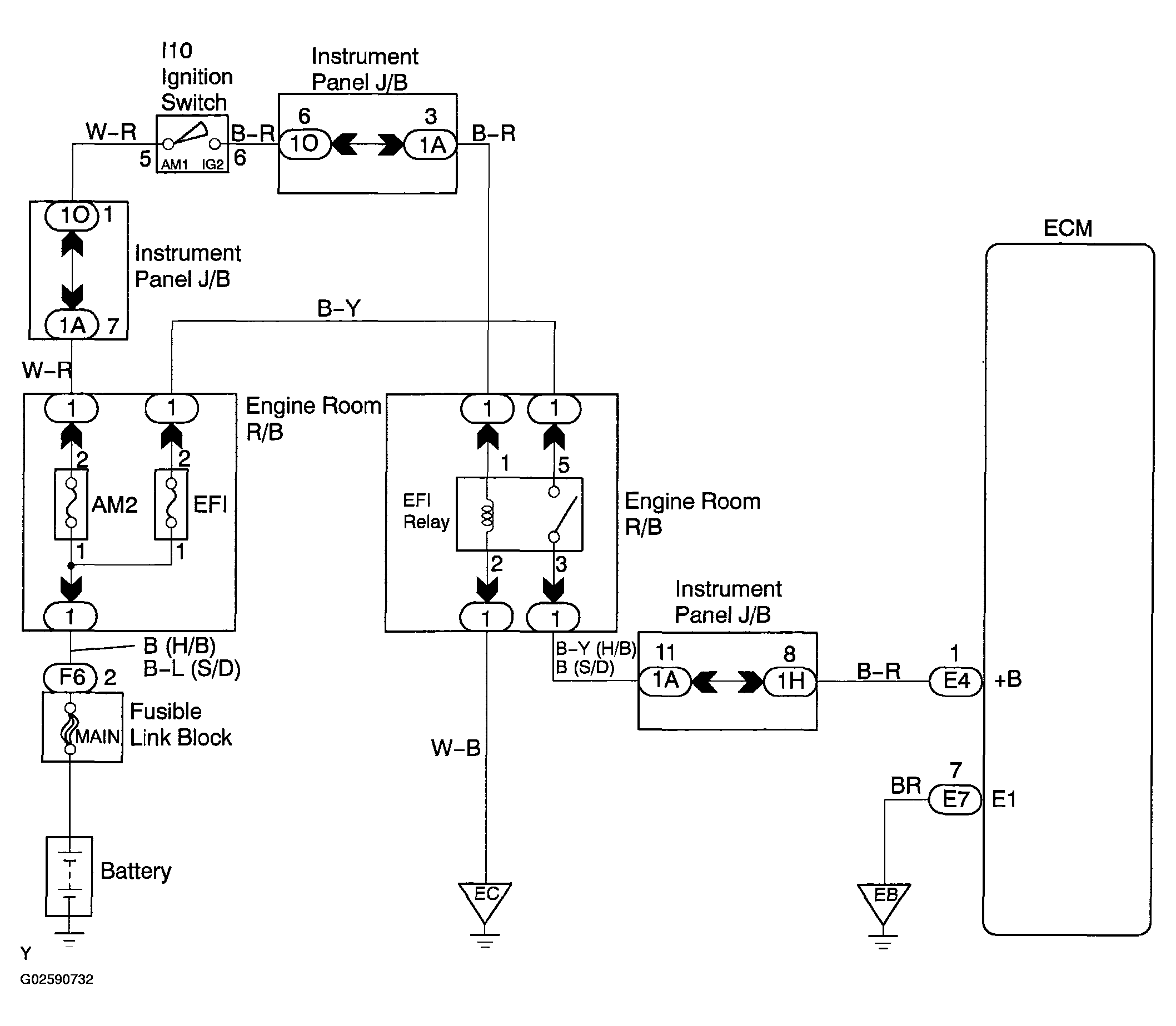

Fig 1: ECM Power Source Circuit Diagram

G02590732

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
