Inspection Procedure

NOTE: Read freeze frame data using the hand-held tester or the OBD II scan tool. Freeze frame data record the engine condition when malfunctions are detected. When troubleshooting, freeze frame data can help determine if the vehicle was moving or stationary, if the engine was warmed up or not, if the air-fuel ratio was lean or rich, and other data from the time the malfunction occurred.

Hand-held tester:

  1. Connect hand-held tester, and check STA signal.

    PREPARATION;

    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch to ON and turn the hand-held tester ON.
    3. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL / STARTER SIG.

    CHECK:

    Read the STA signal on the hand-held tester while the starter operates.

    OK:

    TESTER CONNECTION AND SPECIFIED CONDITION

    Ignition Switch Position ON START
    STA Signal OFF ON
    1. OK Check for intermittent problems (See  PRE-CHECK  ).
    2. NG GO TO NEXT STEP
  2. Check park/neutral position switch (A/T) or clutch start switch (M/T).

    A/T models:

    Inspect the park/neutral position switch.

    PREPARATION:

    Disconnect the P1 park/neutral position switch connector.

    CHECK:

    Measure the resistance between each terminal shown below when the shift lever is moved to each range.

    OK:

    Fig 1: Identifying P1 Park/Neutral Position Switch Connector Terminals
    G02590725Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    TESTER CONNECTION AND SPECIFIED CONDITION

    Shift Range Tester Connection Specified Condition
    P 1 - 3, 6 - 9 Below 1 Ω
    R 2-3
    N 3-5,6-9
    D 3-7
    2 3-4
    L 3-8

    M/T models:

    Inspect the clutch start switch.

    PREPARATION:

    Disconnect the C12 clutch start switch connector.

    CHECK:

    Check the resistance between terminals when the switch is ON and OFF.

    OK:

    Fig 2: Identifying C12 Clutch Start Switch Connector Terminals
    G02590726Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    STA SIGNAL RESULT

    Switch Position Tester Connection Specified Condition
    ON (pushed) 1 -2 Below 1 Ω
    OFF (free) 10 kΩ or higher
    1. OK Go to   4 .
    2. NG GO TO NEXT STEP
  3. Replace park/neutral position switch (A/T) or clutch start switch (M/T).
  4. Connect hand-held tester, and check STA signal.

    PREPARATION:

    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch to ON and turn the hand-held tester ON.
    3. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL / STARTER SIG.

    CHECK:

    Read the STA signal on the hand-held tester.

    RESULT:

    TESTER CONNECTION AND SPECIFIED CONDITION

    Ignition Switch Position ON START
    STA Signal OFF ON
    1. OK System OK.
    2. NG GO TO NEXT STEP
  5. Check ignition switch.

    CHECK:

    Check the resistance between the connector terminals shown in the chart below.

    OK:

    STA SIGNAL RESULT

    Switch Position Tester Connection Specified Condition
    LOCK All Terminals 10 kΩ or higher
    ACC 1-3 Below 1 Ω
    ON 1-2, 1-3, 2-3, 5-6 Below 1 Ω
    START 4-5, 4-6, 5-6, 1-2 Below 1 Ω
    Fig 3: Identifying Ignition Switch Connector Terminals
    G02590727Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG Replace ignition switch.
    2. OK GO TO NEXT STEP
  6. Connect hand-held tester, and check STA signal.

    PREPARATION:

    1. Connect the hand-held tester to the DLC3.
    2. Turn the ignition switch to ON and turn the hand-held tester ON.
    3. Select the following menu items: DIAGNOSIS / ENHANCED OBD II / DATA LIST / ALL / STARTER SIG.

    CHECK:

    Read the STA signal on the hand-held tester.

    RESULT:

    IGNITION SWITCH CONNECTOR TERMINALS RESISTANCE

    Ignition Switch Position ON START
    STA Signal OFF ON
    1. OK System OK.
    2. NG Repair or replace harness and connector.

OBD II scan tool (excluding the hand-held tester):

  1. Check voltage between terminal STA of ECM connector and body ground.

    PREPARATION:

    1. Turn the ignition switch to ON.

    CHECK:

    Measure the voltage between terminal STA of the ECM connector and body ground while the engine is cranking.

    OK:

    Voltage: 6 V or more

    1. OK Replace ECM (See  INSPECTION  ).
    2. NG GO TO NEXT STEP

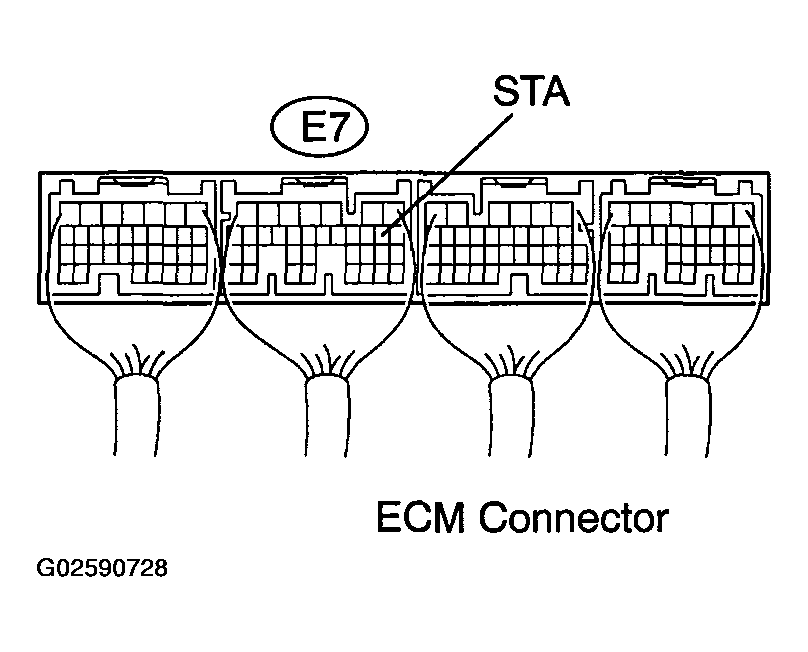

    Fig 4: Identifying ECM Connector Terminal STA
    G02590728Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Check park/neutral position switch or clutch start switch.
    1. Inspect the park/neutral position switch (A/T).
    2. Inspect the clutch start switch (M/T) (see CLUTCH PEDAL ).
    1. NG Replace park/neutral position switch and go to next step.
    2. OK GO TO NEXT STEP
  3. Check voltage between terminal STA of ECM connector and body ground.

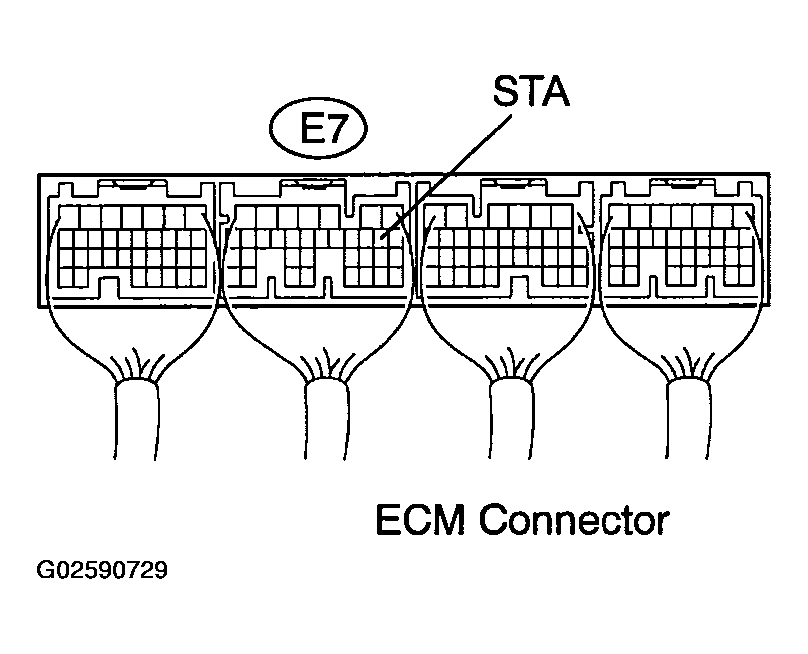

    Fig 5: Identifying ECM Connector Terminal STA
    G02590729Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

    PREPARATION:

    1. Turn the ignition switch to ON.

    CHECK:

    Measure the voltage between terminal STA of the ECM connector and body ground while the engine is cranking.

    OK:

    Voltage: 6 V or more

    1. OK System OK.
    2. NG GO TO NEXT STEP
  4. Check ignition switch.

    Check the resistance between the connector terminals shown in the table below.

    TESTER CONNECTION AND SPECIFIED CONDITION

    Switch Terminal No. Resistance
    LOCK All Terminals to Terminals 1 M Ω or more
    ACC 1 - 3 1 Ω or less
    ON 1 - 2 - 3 5-6 1 Ω or less
    START 1 -2 4-5-6 1 Ω or less
    Fig 6: Identifying Ignition Switch Connector Terminals
    G02590730Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. NG Replace ignition switch and go to next step.
    2. OK GO TO NEXT STEP
  5. Check voltage between terminal STA of ECM connector and body ground.

    PREPARATION:

    1. Turn the ignition switch to ON.

    CHECK:

    Measure the voltage between terminal STA of the ECM connector and body ground while the engine is cranking.

    OK:

    Voltage: 6 V or more

    Fig 7: Identifying ECM Connector Terminal STA
    G02590731Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    1. OK System OK.
    2. NG GO TO NEXT STEP
  6. Repair or replace harness or connector between ECM and starter relay (Marked: ST) (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
    1. NG Repair or replace harness or connector.
    2. OK System OK.
