Oil Pump: Removal

  1. DRAIN ENGINE OIL
  2. REMOVE TIMING CHAIN COVER (See  REMOVAL  )
  3. REMOVE OIL PUMP
    1. Remove the 2 bolts, 3 screws and oil pump cover from the timing chain cover.
    2. Remove the drive and driven rotors.

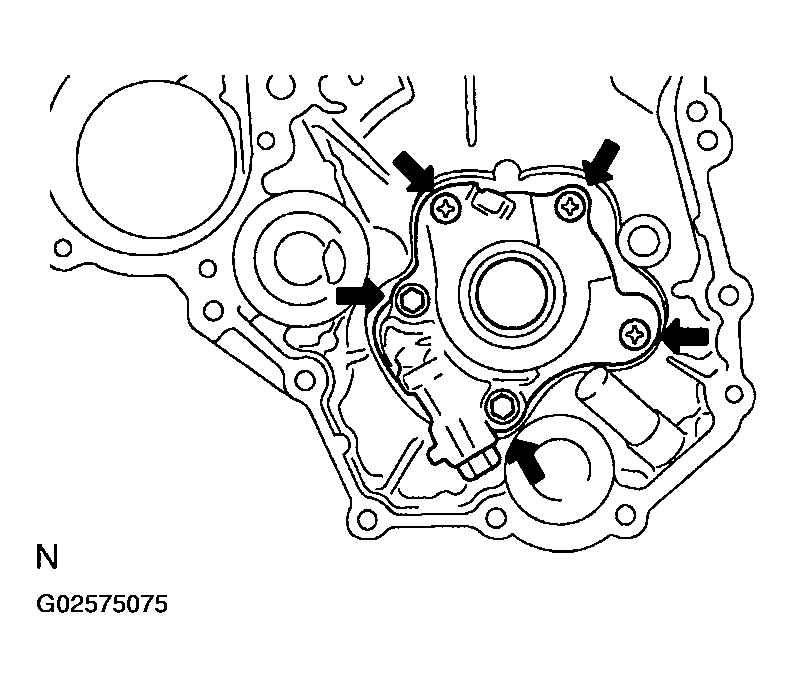

    Fig 1: Removing Oil Pump Cover From Timing Chain Cover
    G02575075Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
