Parts Layout And Schematic Drawing: Drawing

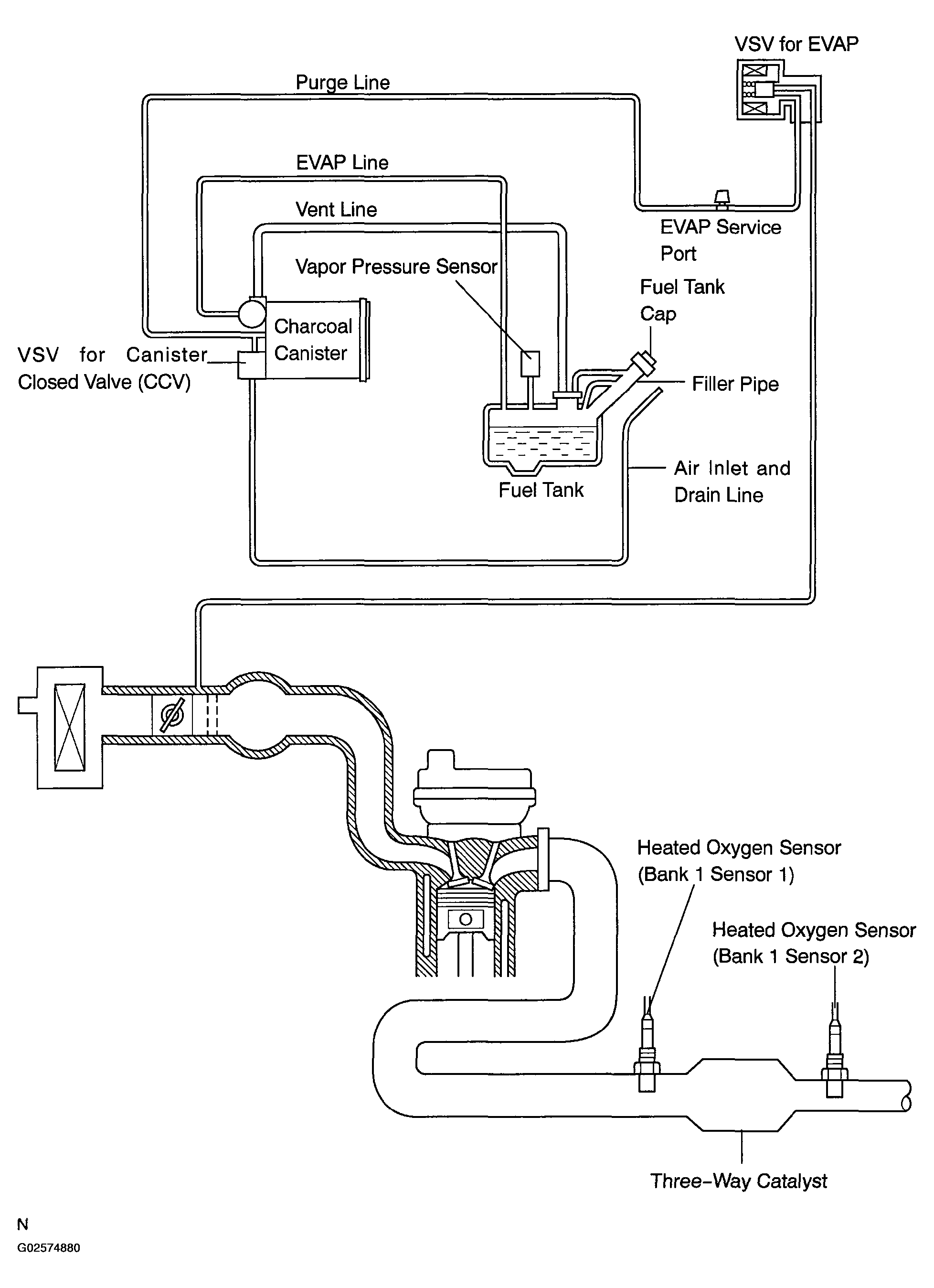

Fig 1: Locating Parts Layout And Schematic Drawing (2 Of 2)

G02574880

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
