Cruise Control System (W/ETCS-I) - Diagnostics
>>
Terminals Of ECM
Terminals Of ECM

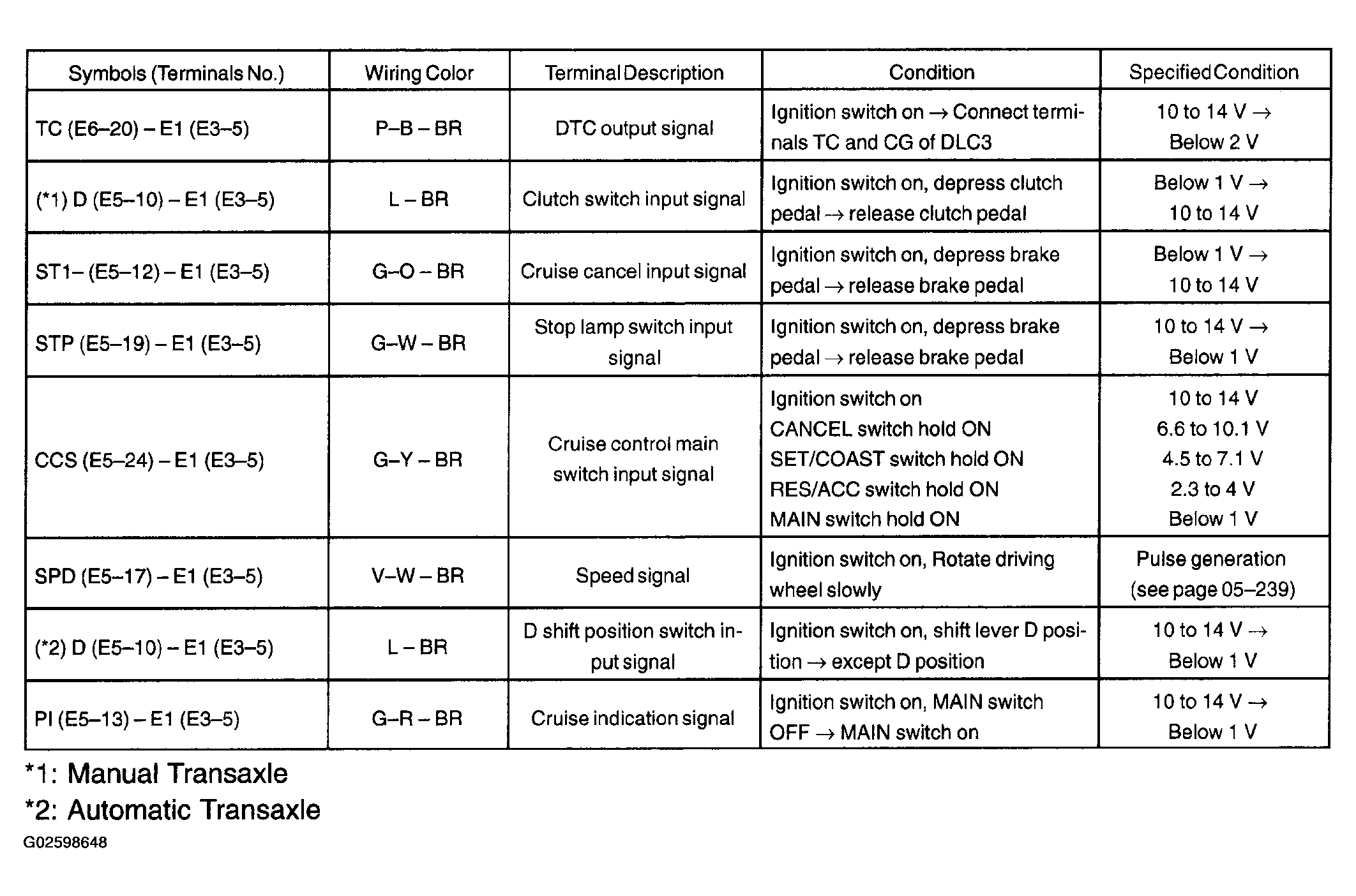

Fig 1: ECM Pin Voltage Chart
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
