Speedometer Sensor (A245E): Replacement

1. Disconnect the connector.
2. Remove the bolt and speedometer sensor assembly.
3. Remove the clip and driven gear from the speedometer sensor.

1. Coat a O-ring with ATF and install it to the speedometer sensor.
2. Install the driven gear to the speedometer sensor with the clip.
3. Install the speedometer sensor assembly with the bolt.

   Torque: 11.N.m (115 kgf.cm, 9 ft.lbf)

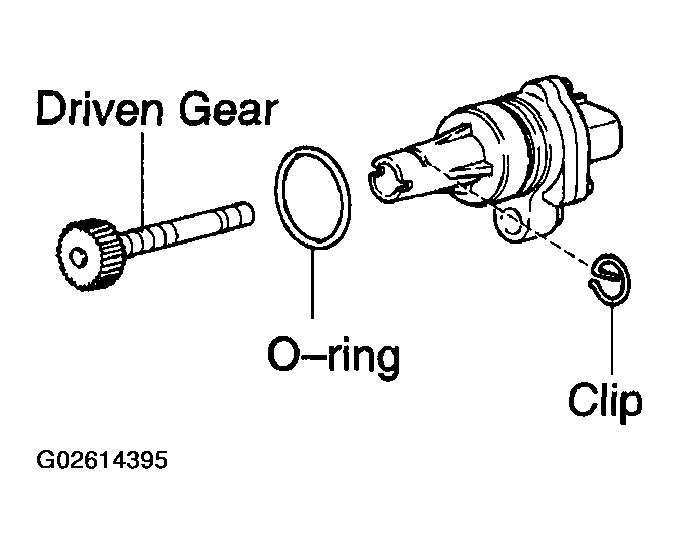

   Fig 1: Installing Speedometer Sensor O-Ring

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Connect the connector.

Torque: 7.0 N.m (71 kgf.cm, 62 in..lbf)
