Manual Transaxle ASSY: Components

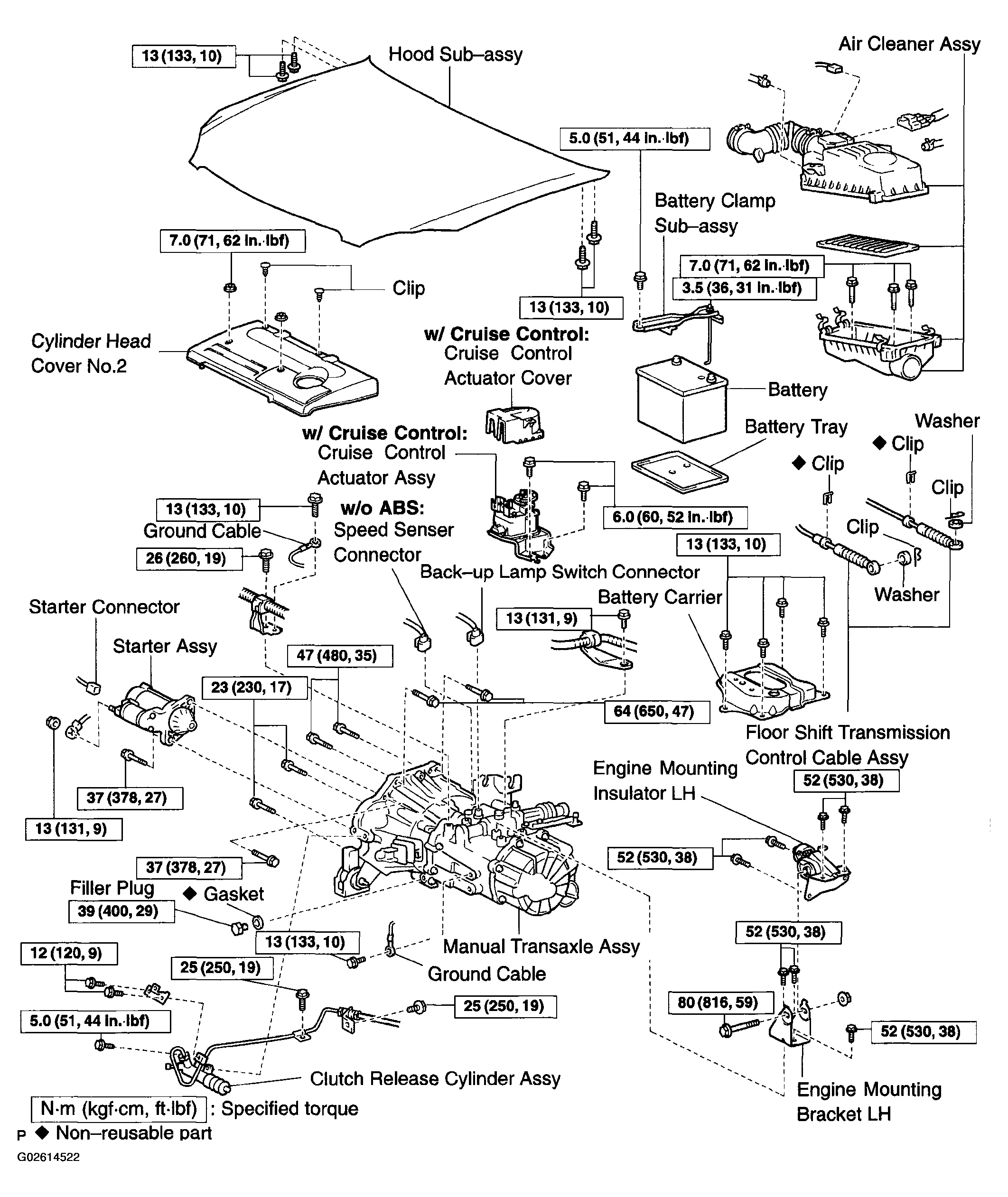

Fig 1: Identifying Components Manual Transaxle Assy (1 Of 2)
G02614522Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

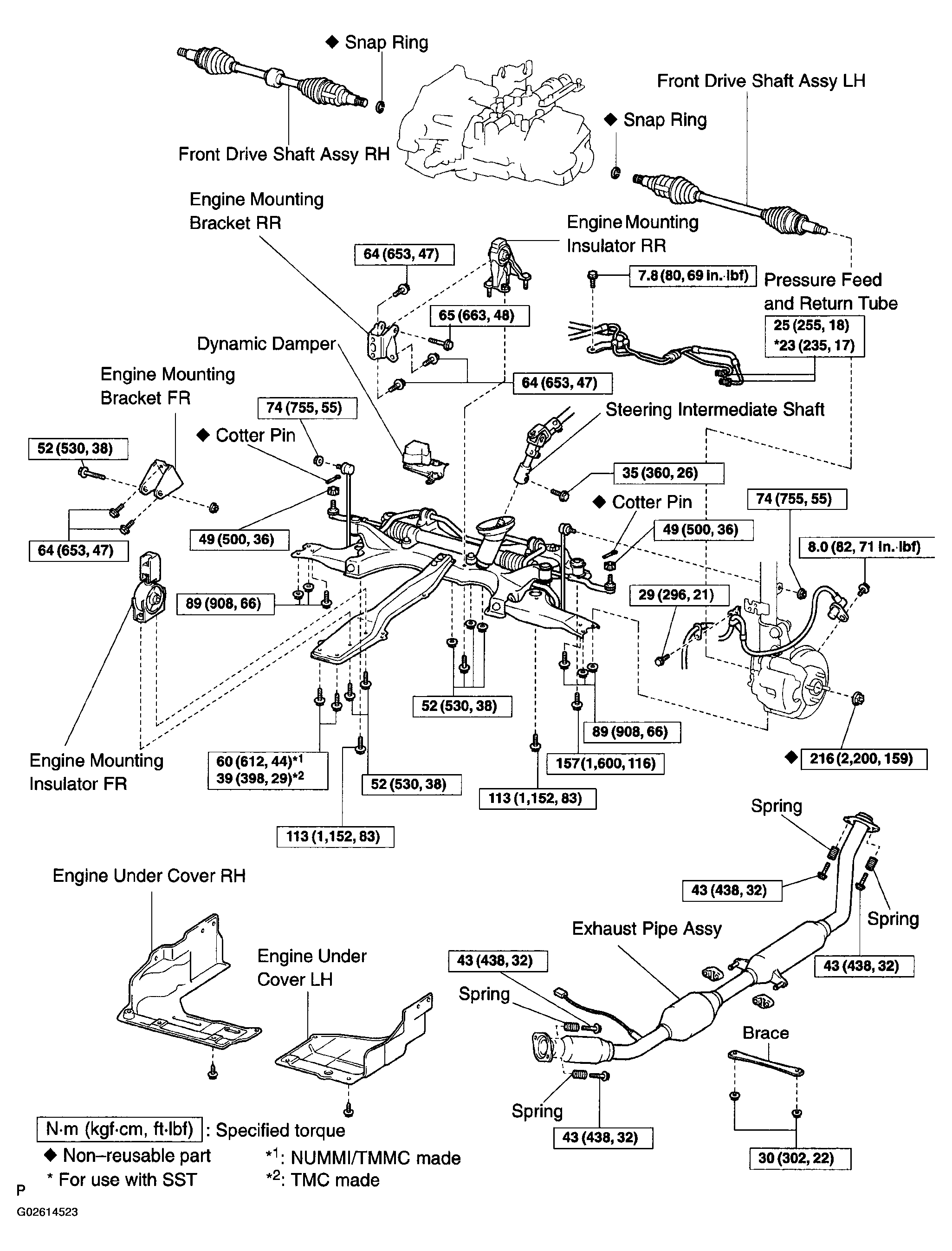

Fig 2: Identifying Components Manual Transaxle Assy (2 Of 2)
G02614523Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
