Front Shock Absorber With Coil Spring: Overhaul

HINT:

COMPONENTS: See COMPONENTS

REMOVE FRONT WHEEL
DISCONNECT FRONT STABILIZER LINK ASSY LH
1. Remove the nut and disconnect the front stabilizer link assy LH from the shock absorber assy front LH.
HINT:

If the ball joint turns together with the nut, use a hexagon (6 mm) wrench to hold the stud.

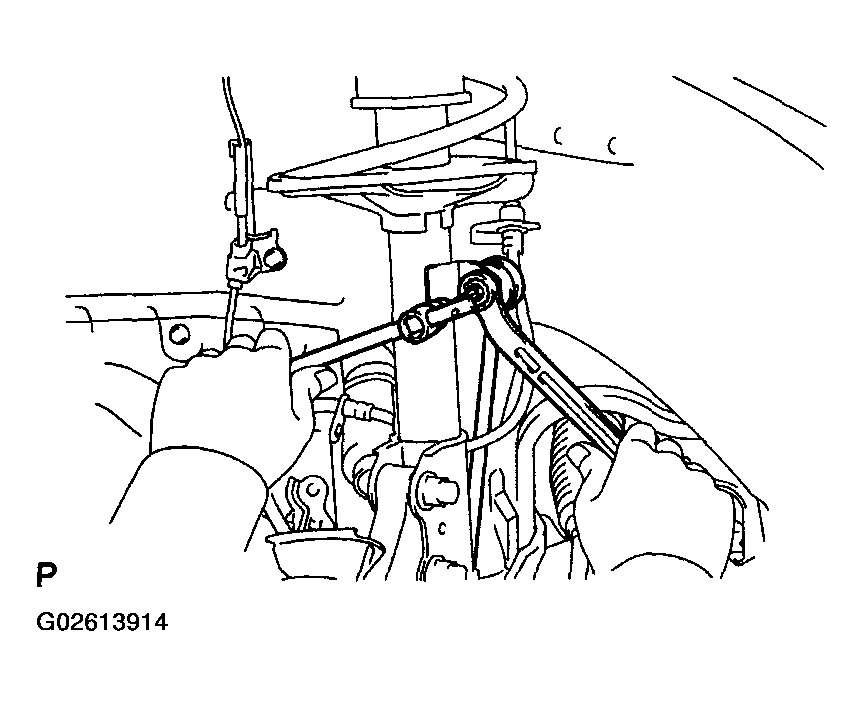

Fig 1: Disconnecting Front Stabilizer Link Assembly LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

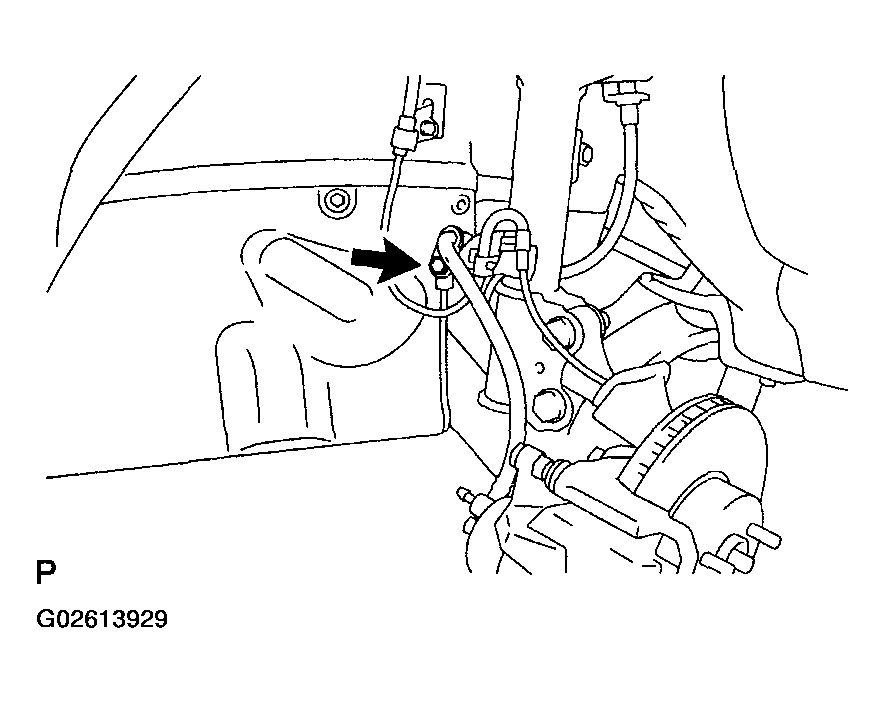

DISCONNECT FRONT FLEXIBLE HOSE
1. w/ ABS:
  Remove the bolt, disconnect the front flexible hose No. 1 and speed sensor front LH.
2. w/o ABS:
  Remove the bolt, disconnect the front flexible hose.

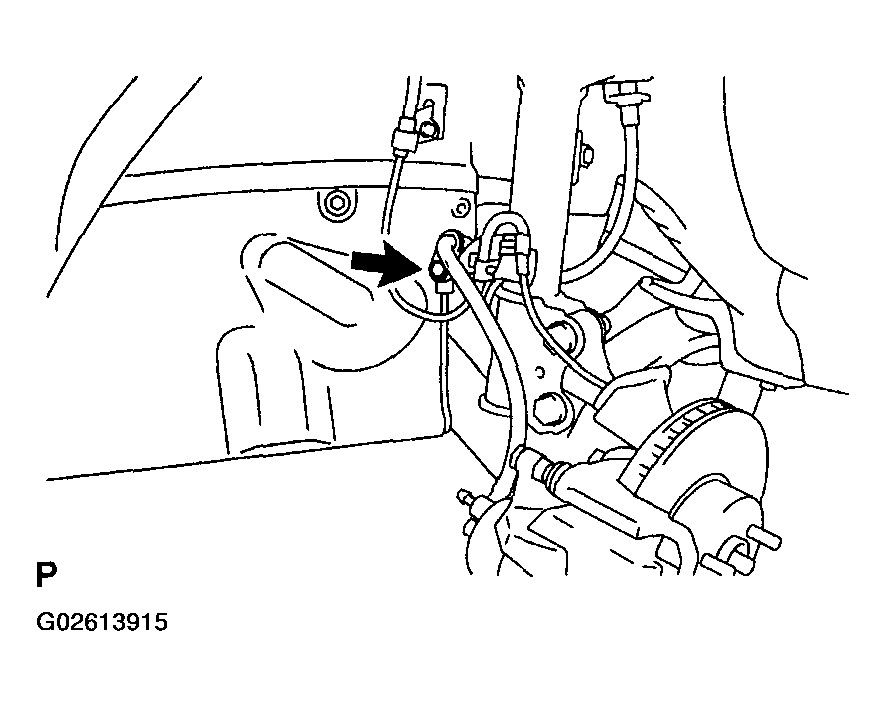

Fig 2: Disconnecting Front Flexible Hose
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT SHOCK ABSORBER WITH COIL SPRING

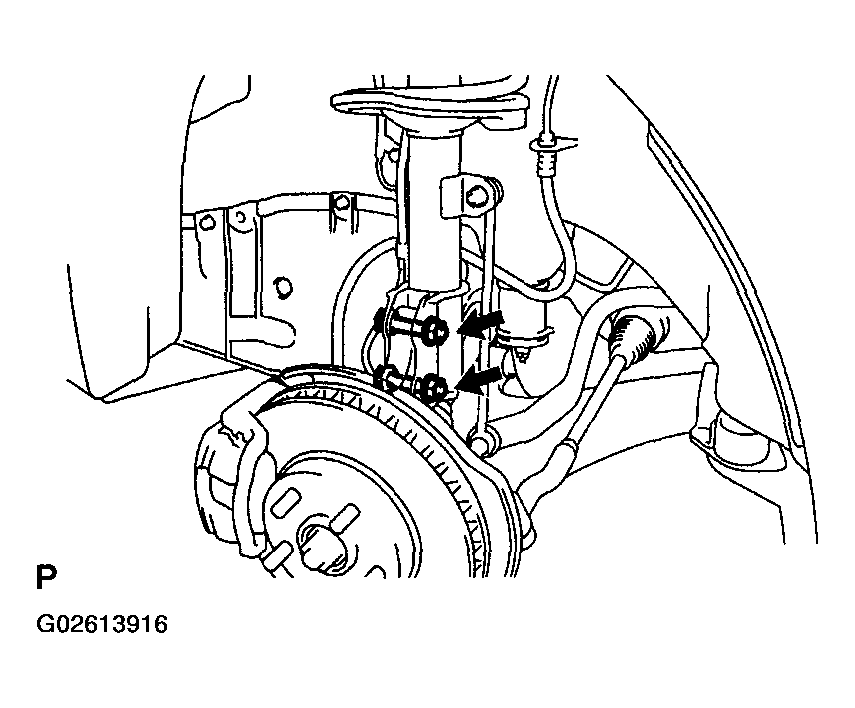

1. Remove the 2 bolts and nuts on the lower side of the shock absorber assy front LH.
  NOTE: When removing the bolt, stop the bolt from rotating and loosen the nut.

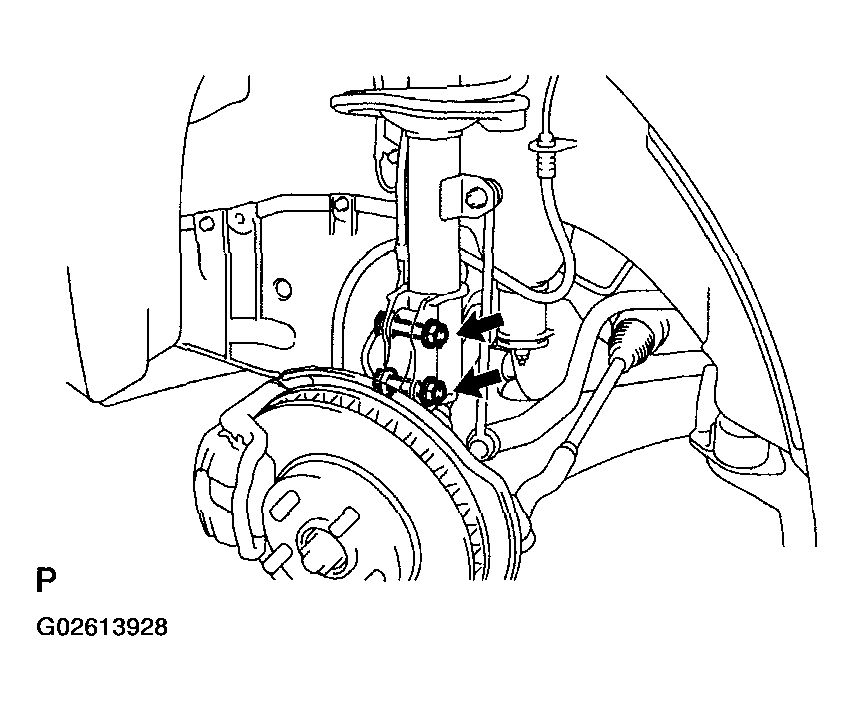

  Fig 3: Removing Bolts And Nuts On Lower Side Of Shock Absorber Assembly Front LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

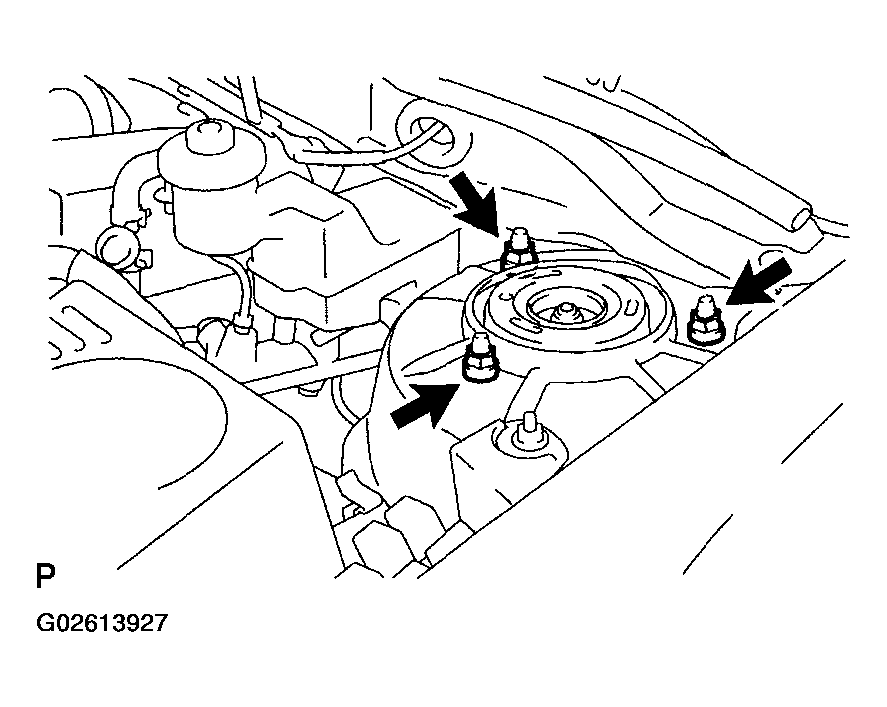

2. Remove the 3 nuts on the upper side of the shock absorber assy front LH.
3. Remove the front shock absorber with the coil spring.
Fig 4: Removing Front Shock Absorber With Coil Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
FIX FRONT SHOCK ABSORBER WITH COIL SPRING
1. Install 2 nuts and a bolt to the bracket at the lower side of the shock absorber assy front LH and secure it in a vise.

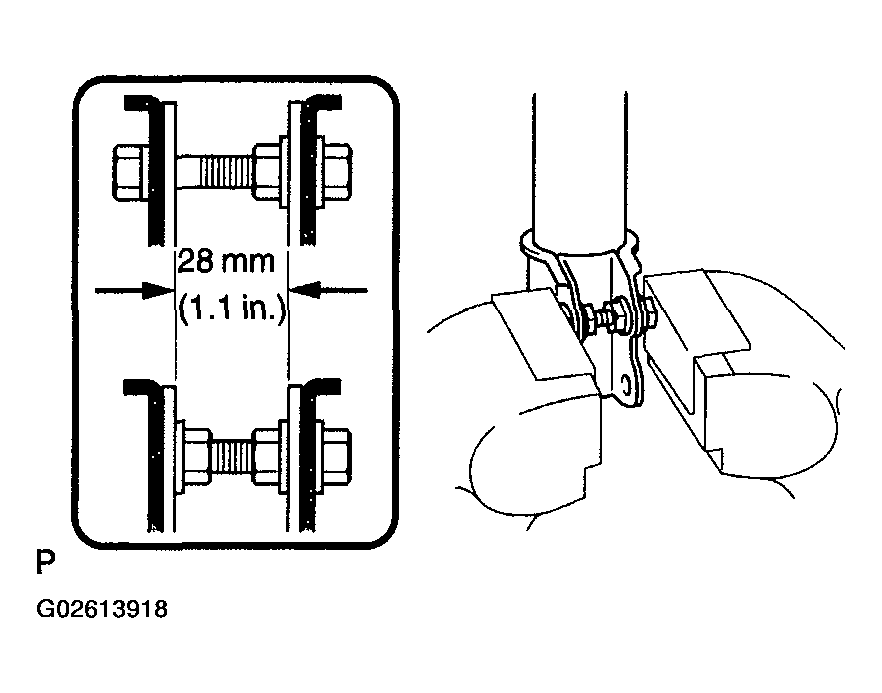

Fig 5: Fixing Front Shock Absorber With Coil Spring
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE SHOCK ABSORBER ASSY FRONT LH
1. Remove the front suspension support dust cover LH from the front suspension support sub-assy LH.
2. Using SST, compress the front coil spring LH.
  SST 09727-30021

  NOTE: Do not use an impact wrench. It will damage the SST.

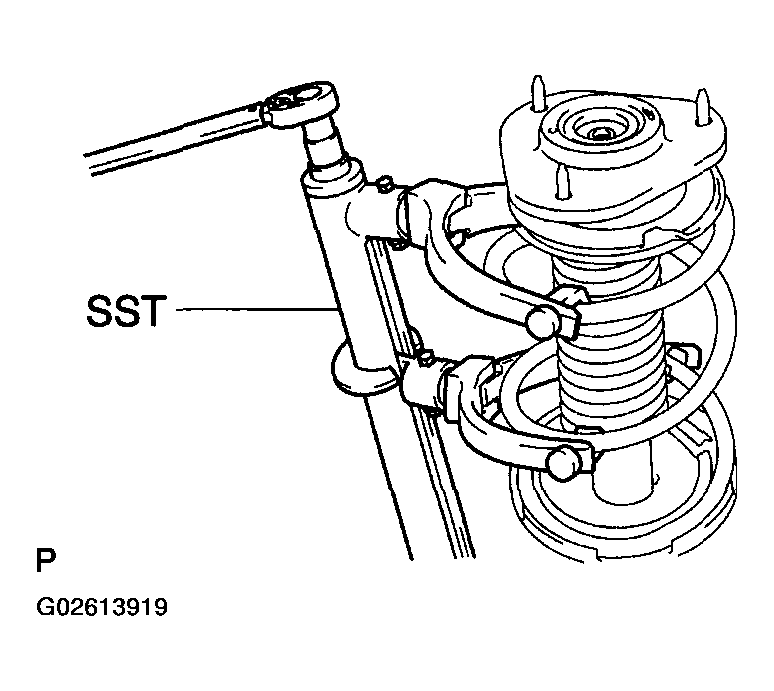

  Fig 6: Compressing Front Coil Spring LH Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

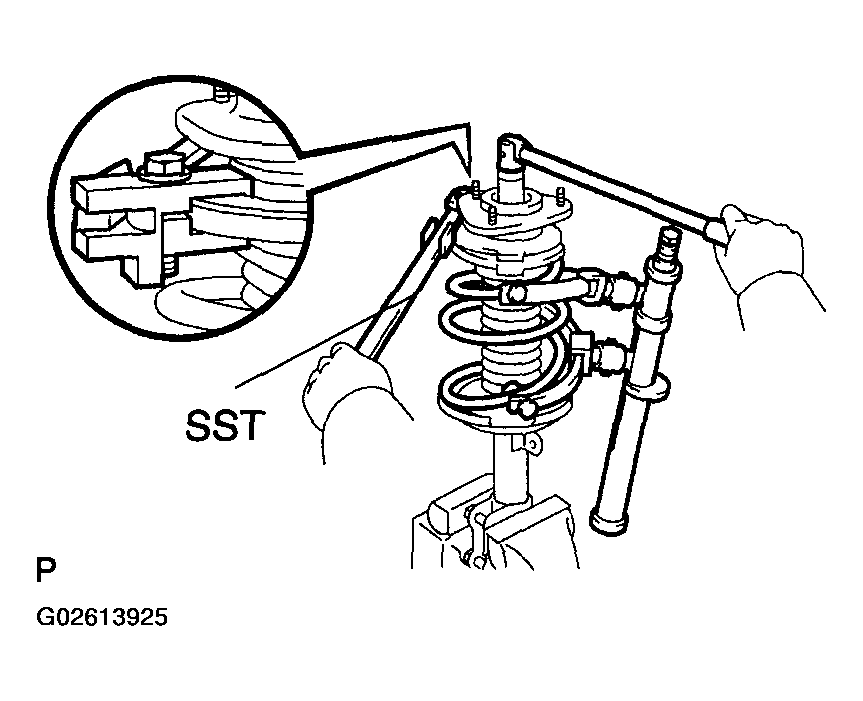

3. Using SST to hold the front coil spring seat upper LH, remove the nut.
  SST 09729-22031
4. Remove the front suspension support sub-assy LH, front suspension support LH dust seal, front coil spring seat upper LH, front coil spring insulator upper LH, front coil spring LH, front spring bumper LH and front coil spring insulator lower LH.
Fig 7: Holding Front Coil Spring Seat Upper LH, Removing Nut Using SST
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT SHOCK ABSORBER ASSY FRONT LH
1. Compress and extend the shock absorber rod and check that there is no abnormal resistance or unusual sound during operation.
If there is any abnormality, replace the shock absorber with a new one.

NOTE: When disposing of the shock absorber (see DISPOSAL ).

Fig 8: Checking Abnormal Resistance Or Unusual Sound During Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL SHOCK ABSORBER ASSY FRONT LH
1. Install the front coil spring insulator lower LH onto the shock absorber assy front LH.
2. Install the front spring bumper LH to the shock absorber piston rod.
3. Using SST, compress the front coil spring LH.
  SST 09727-30021

  NOTE: Do not use an impact wrench. It will damage the SST.
4. Install the front coil spring LH to the shock absorber assy front LH.
  HINT:

  Fit the lower end of the front coil spring LH into the gap of the spring lower seat.

  Fig 9: Compressing Front Coil Spring LH Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. Install the front coil spring insulator upper LH as shown in the illustration.

  Fig 10: Installing Front Coil Spring Insulator Upper LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

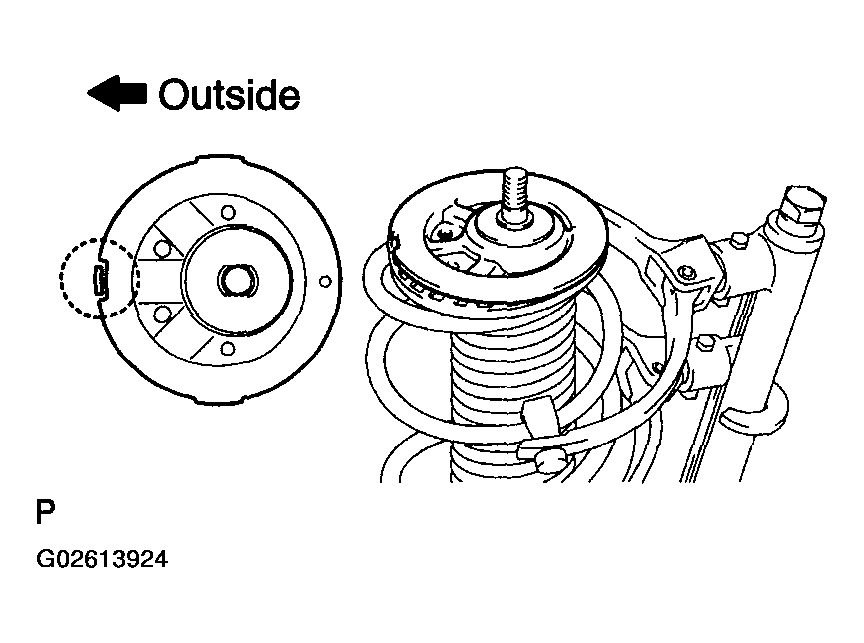

6. Install the front coil spring seat upper LH to the shock absorber assy front LH with the mark facing the outside of the vehicle.
7. Install the front suspension support LH dust seal and front suspension support sub-assy LH.

  Fig 11: Installing Front Suspension Support LH Dust Seal And Front Suspension Support Sub-Assy LH
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

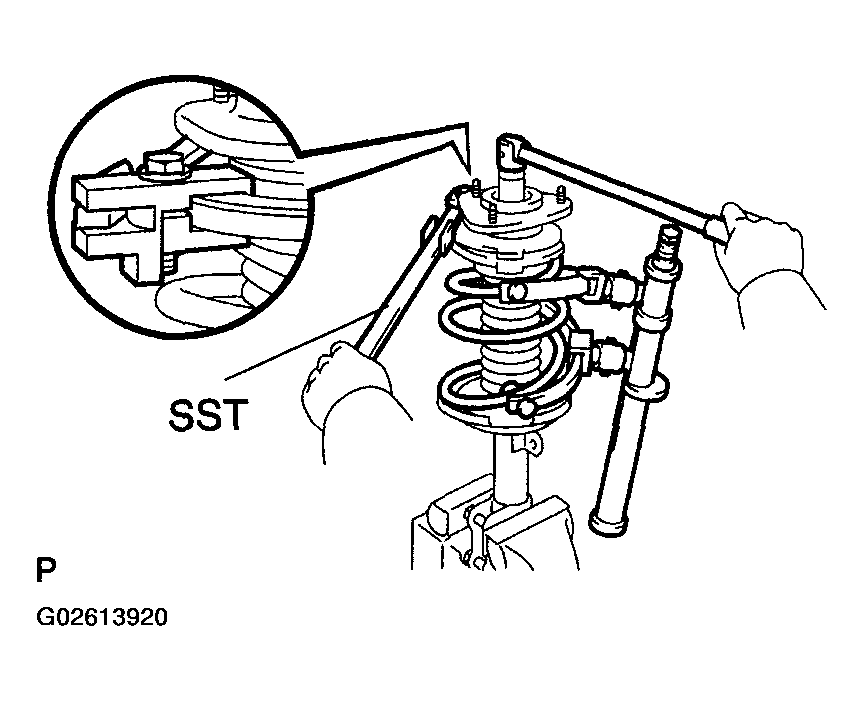

8. Using SST to hold the front coil spring seat upper LH, install a new nut.
  SST 09729-22031

  Torque: 47 N.m (479 kgf.cm, 35 ft.lbf)
9. Remove the SST.
10. Install the front suspension support dust cover LH.

  Fig 12: Holding Front Coil Spring Seat Upper LH, Installing Nut Using SST
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. Apply MP grease No. 2 into the suspension support sub-assy LH.
CAUTION: Do not touch grease on rubber surface of upper support.

Fig 13: Applying MP Grease Into Suspension Support Sub-Assy LH
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT SHOCK ABSORBER WITH COIL SPRING
1. Install the shock absorber with the 2 bolts.
2. Install the 3 nuts to the upper side of front shock absorber with coil spring.
  Torque: 39 N.m (398 kgf.cm, 29 ft.lbf)

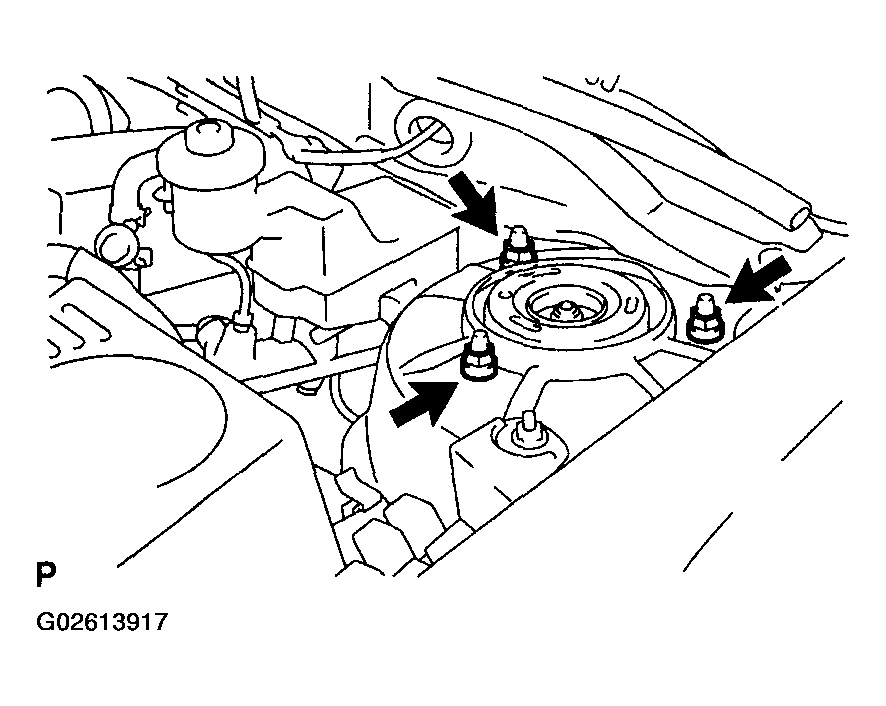

  Fig 14: Installing Nuts To Upper Side Of Front Shock Absorber
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Install the 2 bolts and nuts to the lower side of front shock absorber with coil spring.
  Torque: 153 N.m (1,560 kgf.cm, 113 ft.lbf)
NOTE: When installing bolt, stop the bolt from rotating and torque the nut.

Fig 15: Installing Lower Side Of Front Shock Absorber
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT FLEXIBLE HOSE
1. w/ ABS:
  Install the front flexible hose and speed sensor front LH with the bolt.

  Torque: 29 N.m (296 kgf.cm, 21 ft.lbf)
2. w/o ABS:
  Install the front flexible hose with the bolt.

  Torque: 29 N.m (296 kgf.cm, 21 ft.lbf)
Fig 16: Installing Front Flexible Hose With Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT STABILIZER LINK ASSY LH
1. Install the front stabilizer link assy LH with the nut.
  Torque: 74 N.m (755 kgf.cm, 55 ft.lbf)
HINT:

If the ball joint turns together with the nut, use a hexagon wrench (6 mm) to hold the stud.

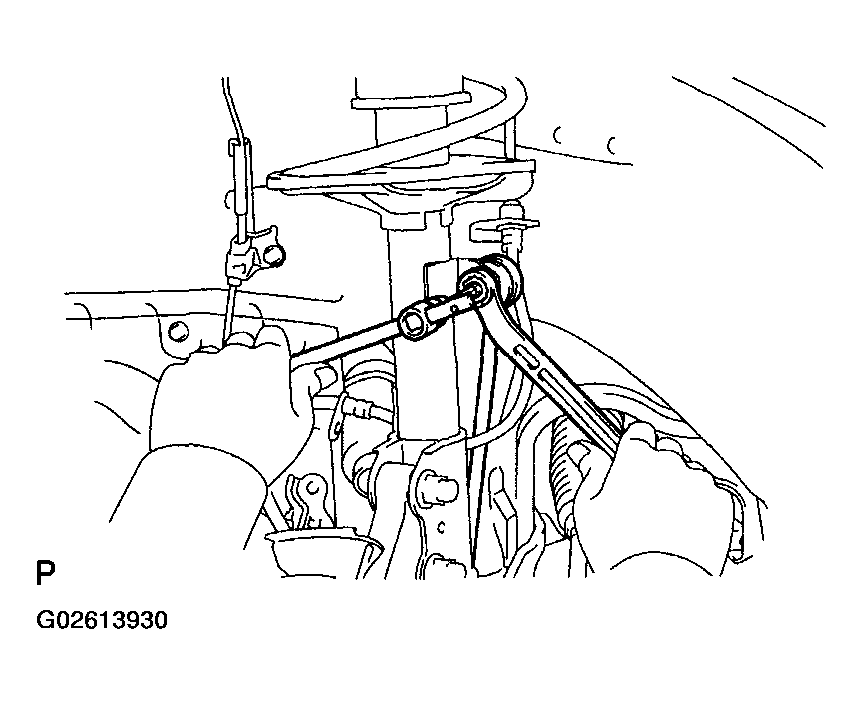

Fig 17: Installing Front Stabilizer Link Assembly LH With Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL FRONT WHEEL
Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)
INSPECT AND ADJUST FRONT WHEEL ALIGNMENT (See ADJUSTMENT )
