Fuel Injector ASSY (2ZZ-GE): Components

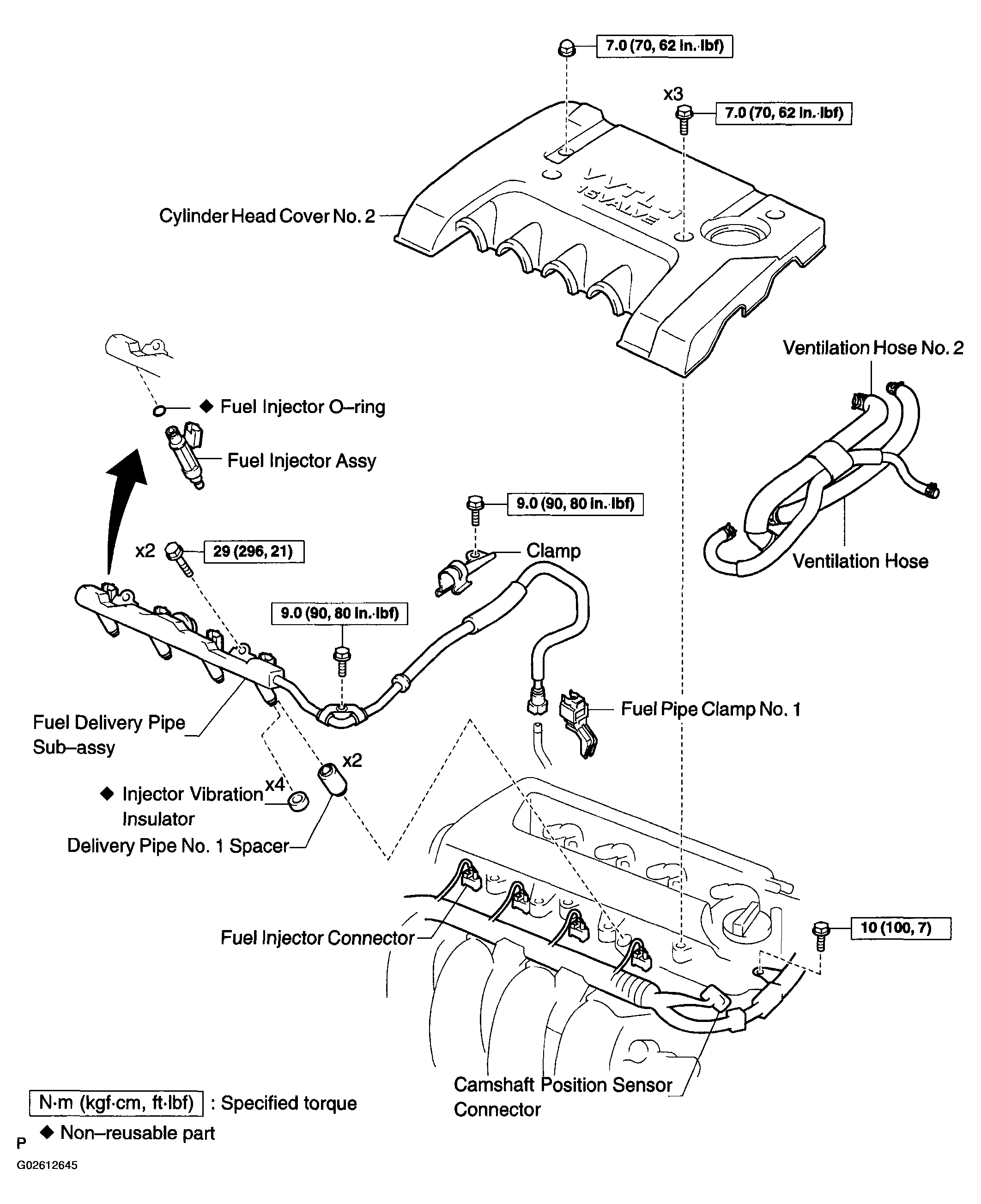

Fig 1: Identifying Fuel Injector Assy (2ZZ-GE) Components

G02612645

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
