Starting System: Starter: Components

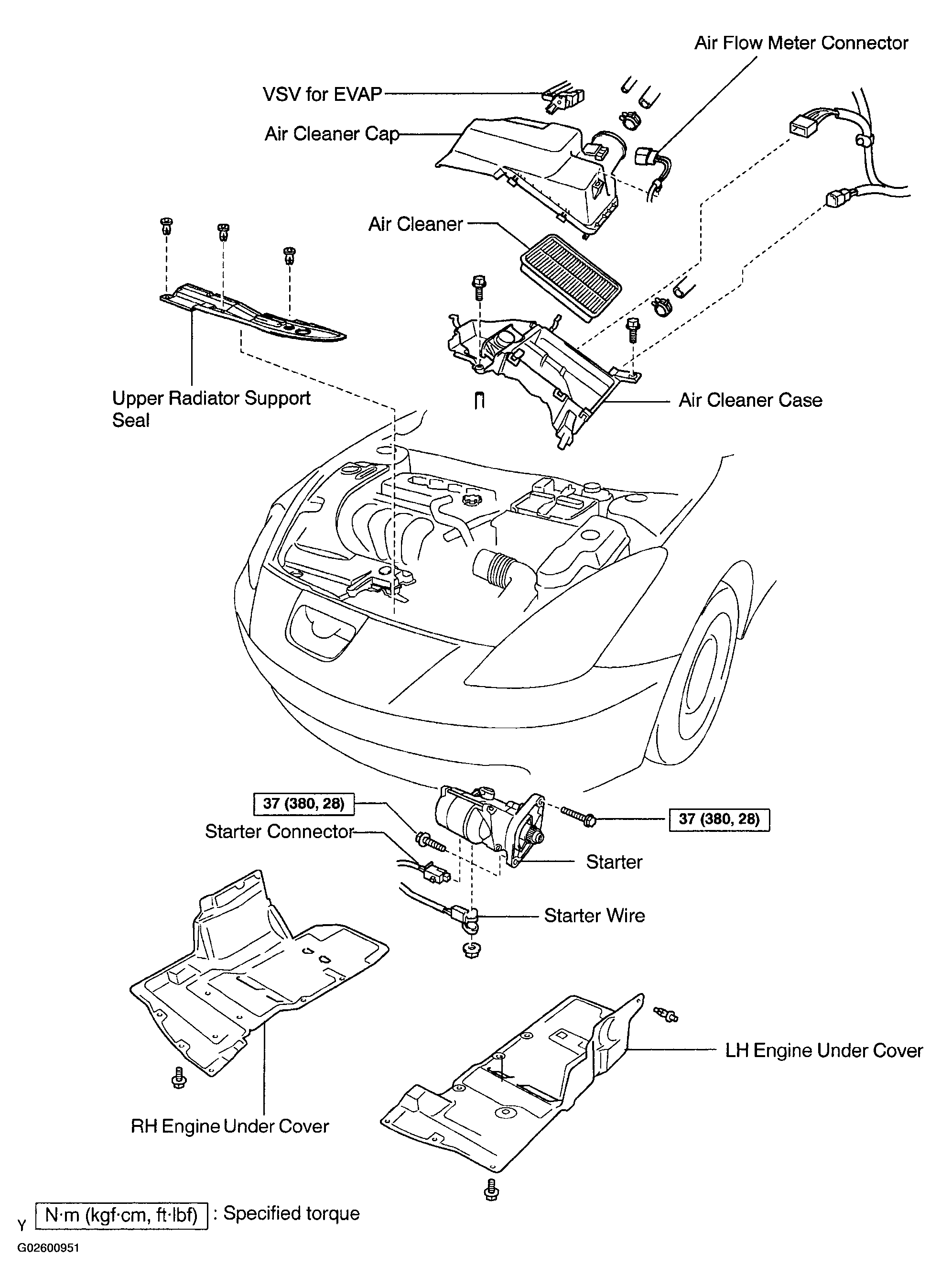

Fig 1: Identifying Starter Components (1 Of 2)
G02600951Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

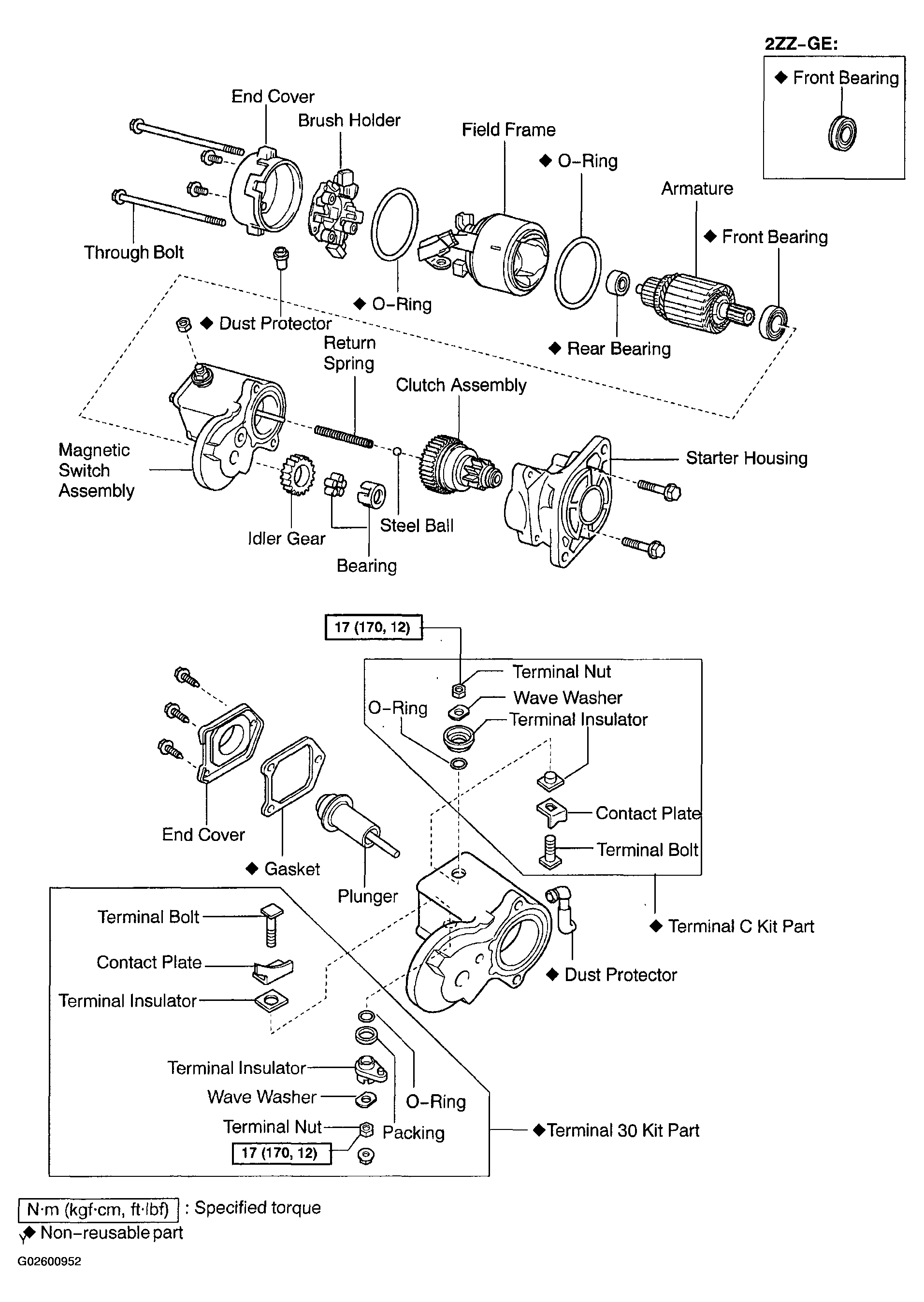

Fig 2: Identifying Starter Components (2 Of 2)
G02600952Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
