Combination Meter: Circuit

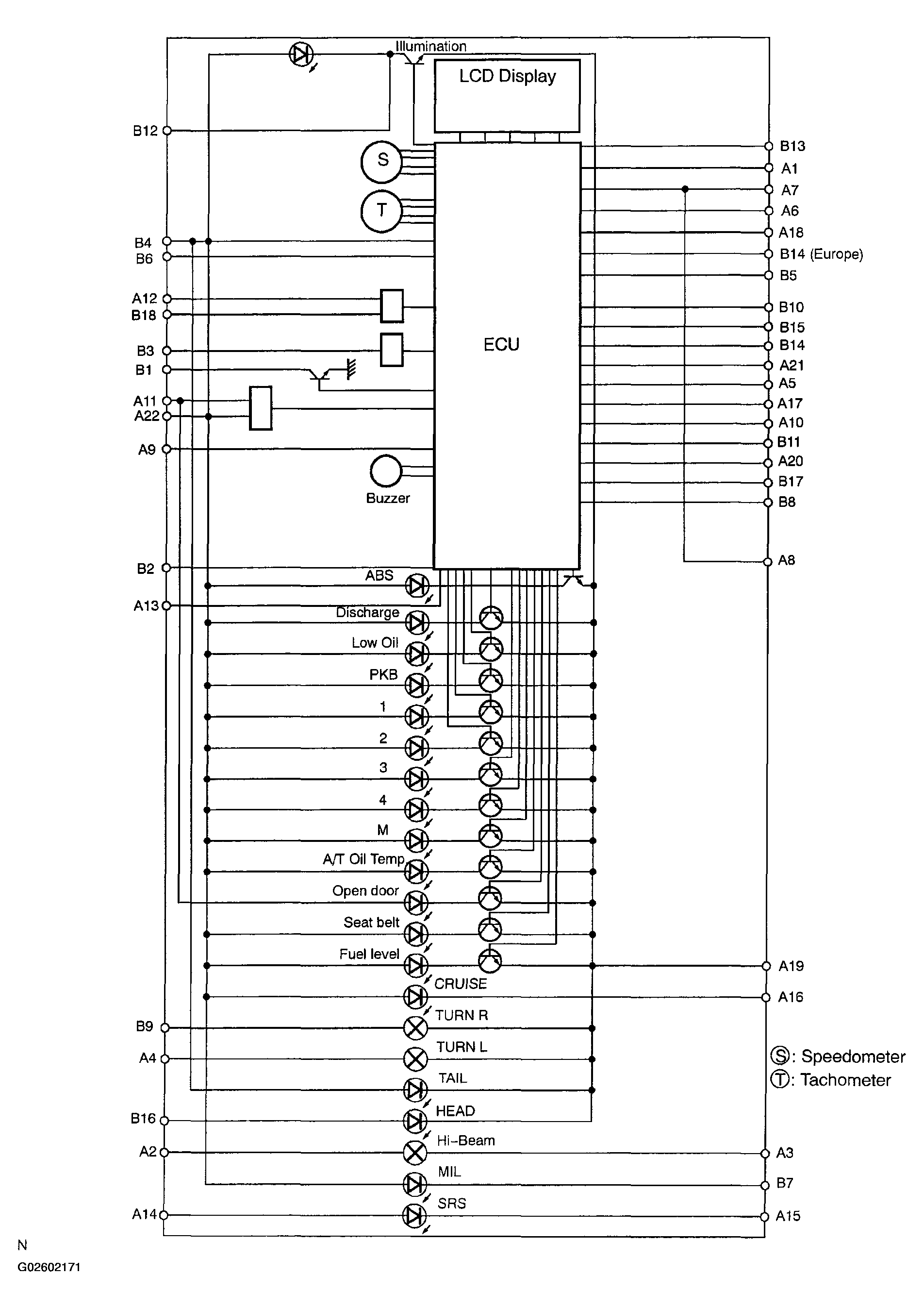

Fig 1: Combination Meter Circuit Diagram
G02602171Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

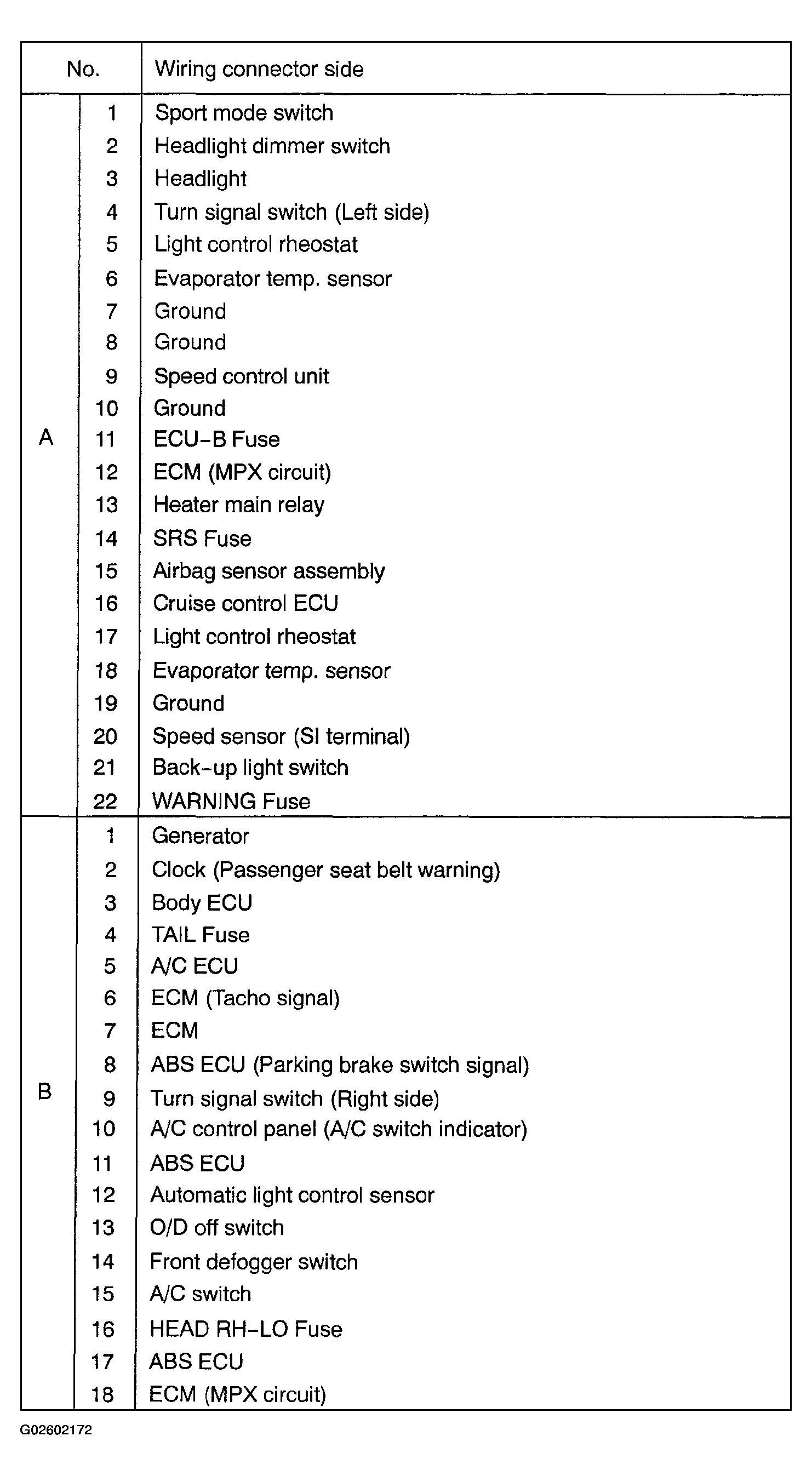

Fig 2: Identifying Combination Meter Wiring Connector Side
G02602172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
