Throttle Body (2ZZ-GE): Installation

  1. INSTALL THROTTLE BODY
    1. Install a new gasket on the intake manifold with the 4 bolts.

      Torque: 22 N.m (220 kgf.cm, 16 ft.lbf)

    2. Install the throttle body with the 4 nuts.

      Torque: 22 N.m (220 kgf.cm, 16 ft.lbf)

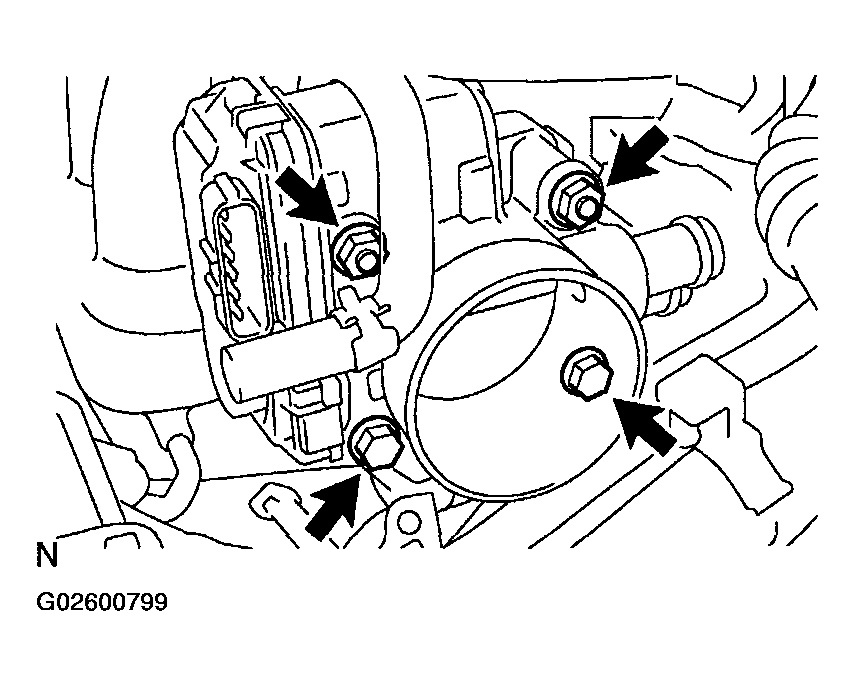

    Fig 1: Installing Throttle Body
    G02600799Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. CONNECT 2 WATER BYPASS HOSES

    Connect the 2 water bypass hoses with the clips.

  3. CONNECT PCV HOSE

    Connect the PCV hose with the clip.

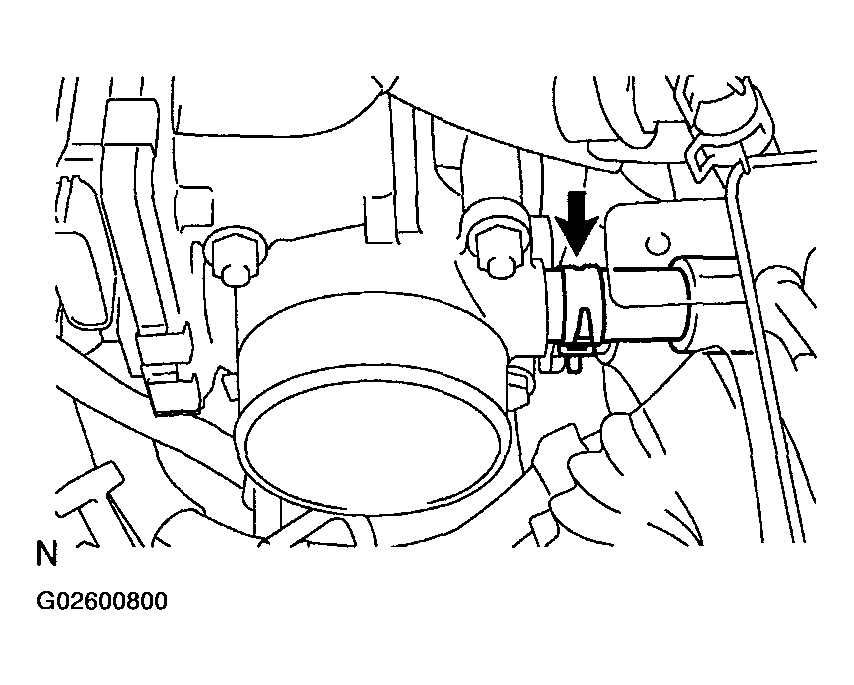

    Fig 2: Connecting PCV Hose
    G02600800Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL THROTTLE BRACKET

    Install the throttle bracket with the 2 bolts.

  5. CONNECT THROTTLE BODY WIRE HARNESS CLAMP

    Connect the throttle body wire harness clamp with the bolt to the throttle body.

    Torque: 5.0 N.m (51 kgf.cm, 44 in..lbf)

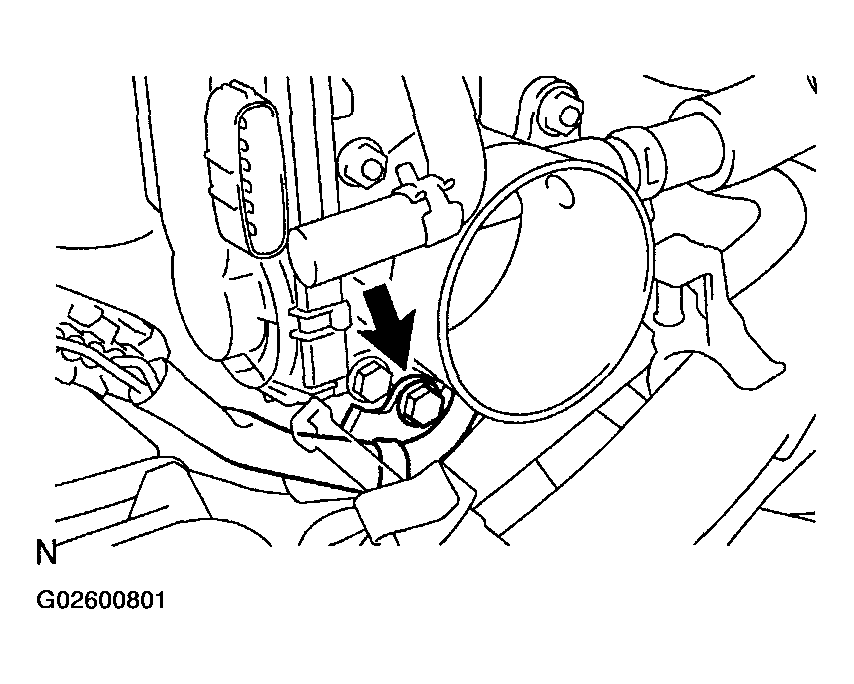

    Fig 3: Connecting Throttle Body Wire Harness Clamp
    G02600801Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  6. CONNECT THROTTLE BODY CONNECTOR

    Connect the throttle body connector.

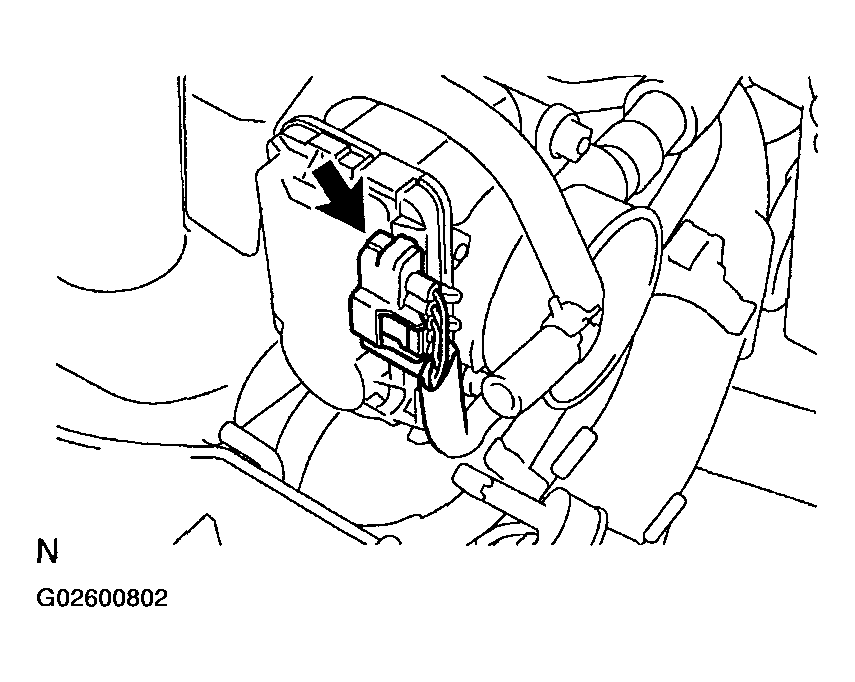

    Fig 4: Connecting Throttle Body Connector
    G02600802Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. INSTALL AIR CLEANER HOSE AND CAP WITH MAF METER
  8. INSTALL NO.2 CYLINDER HEAD COVER
  9. FILL RADIATOR WITH ENGINE COOLANT
  10. CONNECT BATTERY NEGATIVE TERMINAL
