Idle Air Control (IAC) Valve: Removal

  1. REMOVE THROTTLE BODY

    (See  REMOVAL   )

  2. REMOVE IAC VALVE

    Remove the 4 screws, IAC valve and gasket.

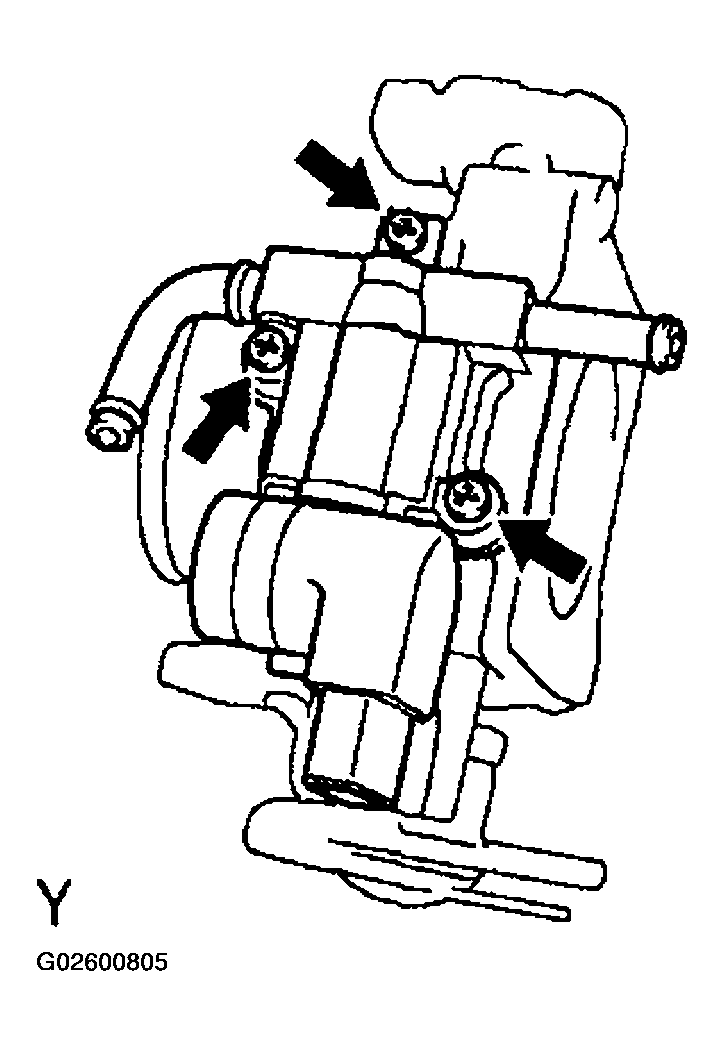

    Fig 1: Removing IAC Valve
    G02600805Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
