Combination Meter: Disassembly

COMBINATION METER COVER:

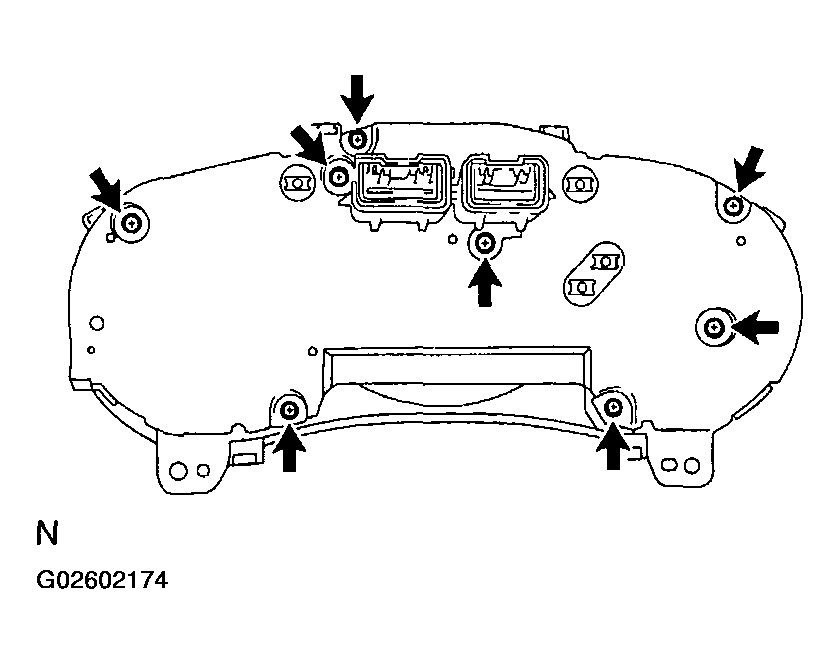

1. Remove the 8 screws.
2. Remove the combination meter cover.
   Fig 1: Removing Combination Meter Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

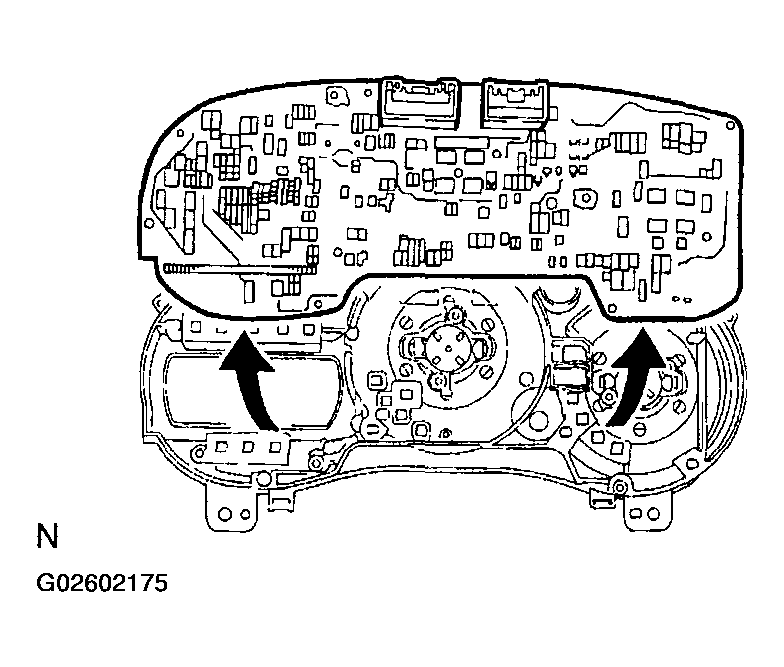

3. Remove the meter circuit plate.
   Fig 2: Removing Meter Circuit Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

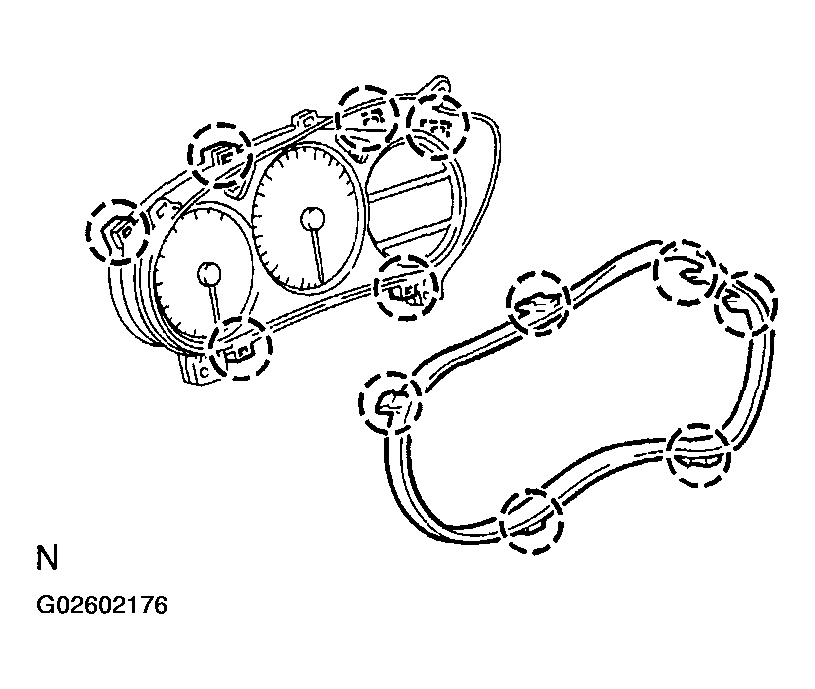

4. Remove the 6 clips and the meter glass.
   Fig 3: Removing Clips & Meter Glass

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

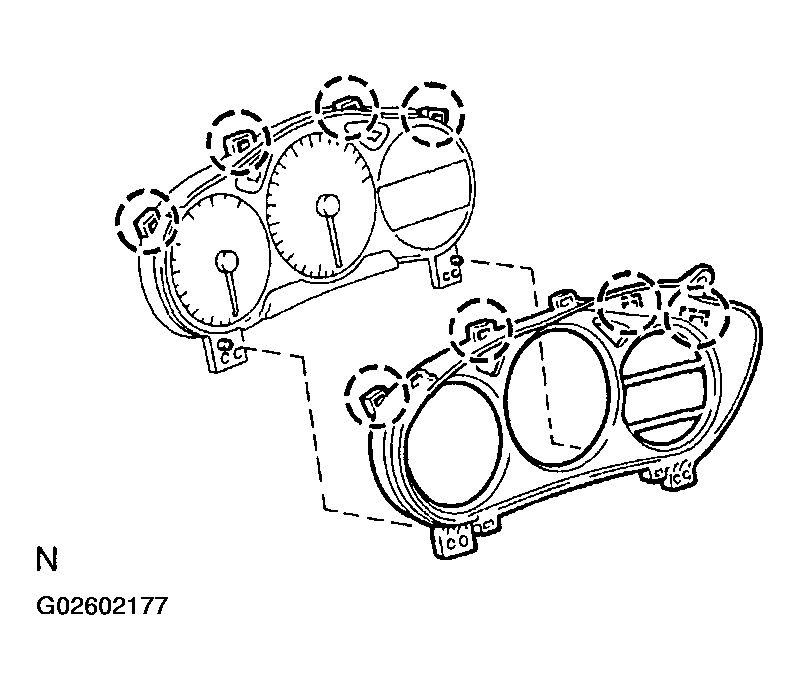

5. Remove the 4 clips and the meter plate.
   Fig 4: Removing Clips & Meter Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
