Front Door: Adjustment

HINT:

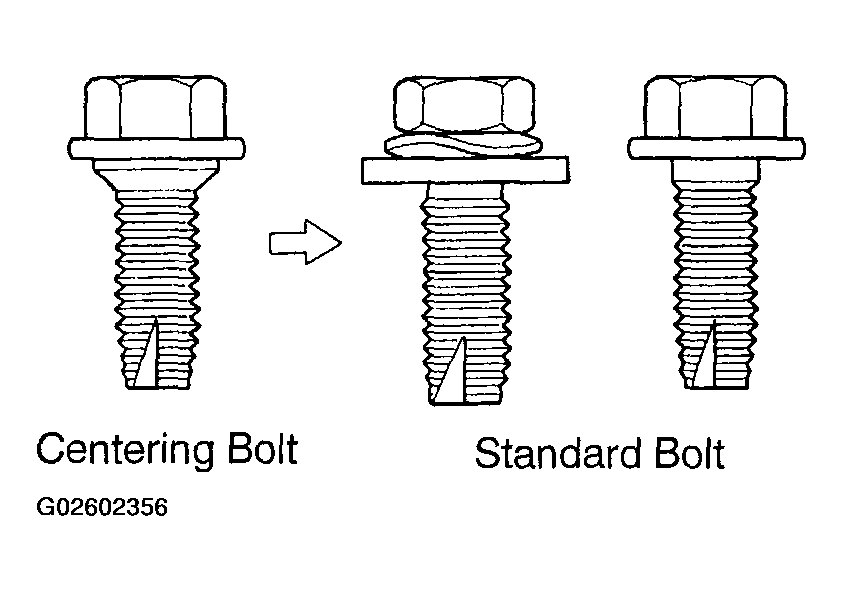

Since the centering bolt is used as the door side hinge bolt, the door hinge cannot be adjusted with it on. Substitute the bolt with washer for the centering bolt.

Fig 1: Identifying Centering Bolts

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

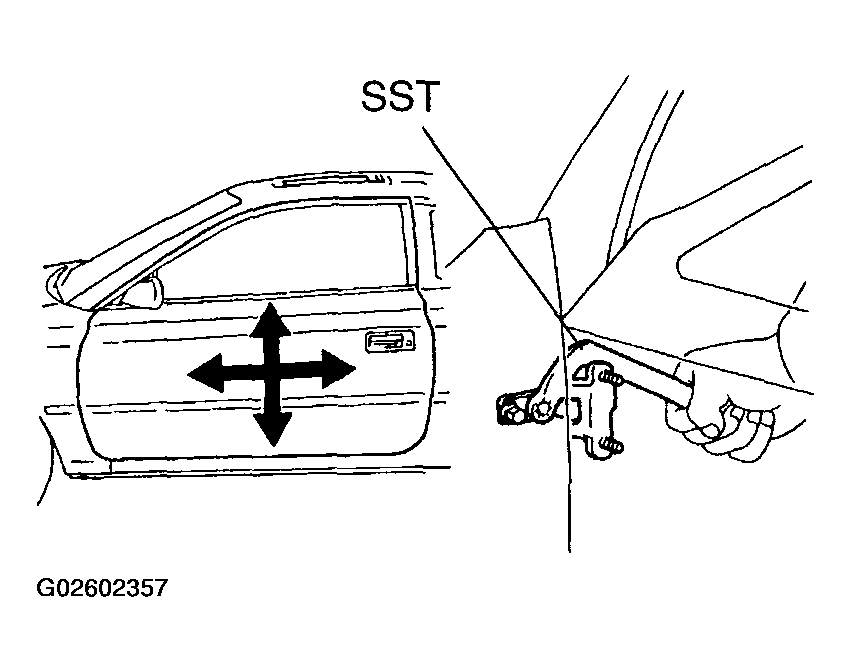

1. Adjust the front door in forward/rearward and vertical directions.

   Using SST, adjust the door by loosening the body side hinge bolts.

   SST 09812-00010

   Torque: 25 N.m (260 kgf.cm, 19 ft.lbf)

   Fig 2: Adjusting Door By Loosening Body Side Hinge Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

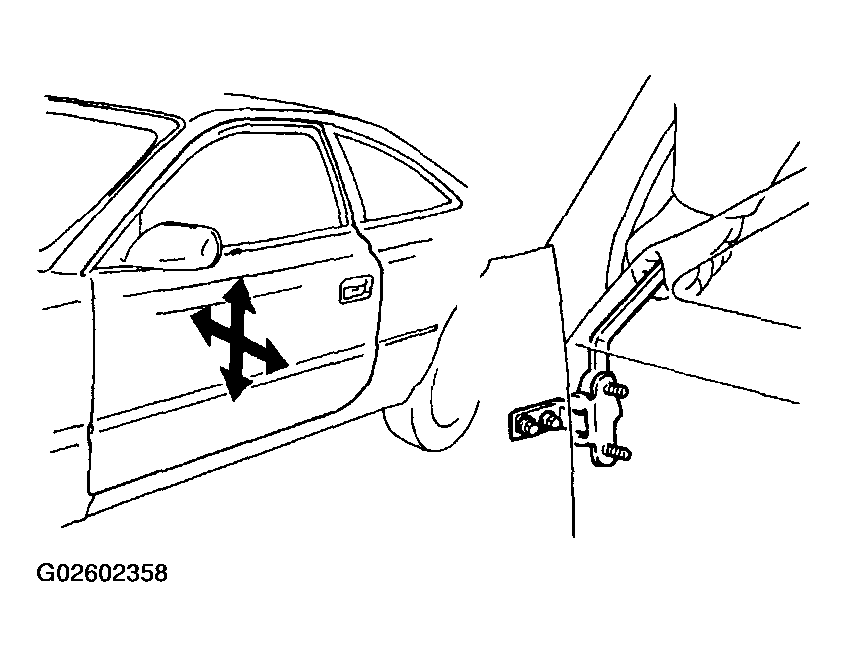

2. Adjust the front door in left/right and vertical directions. Adjust the door by loosening the door side hinge bolts.

   Torque: 25 N.m (260 kgf.cm, 19 ft.lbf)

   Fig 3: Adjusting Door By Loosening Door Side Hinge Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

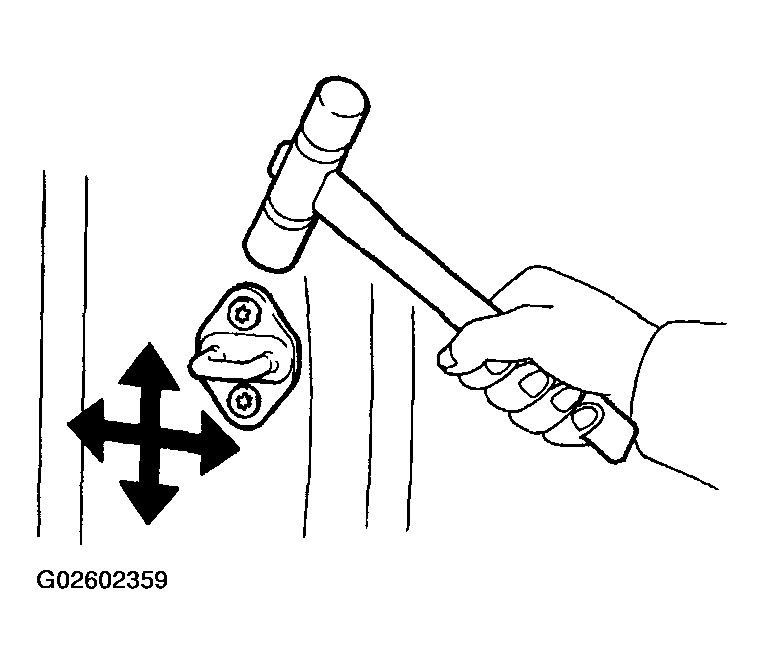

3. Adjust front door lock striker.
   1. Check that the door fit and door lock linkages are adjusted correctly.
   2. Adjust the striker position by slightly loosening the striker mounting screws and hitting the striker with a hammer.
   3. Tighten the striker mounting screws again.

   Torque: 23 N.m (230 kgf.cm, 17 ft.lbf)

   Fig 4: Adjusting Front Door Lock Striker

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

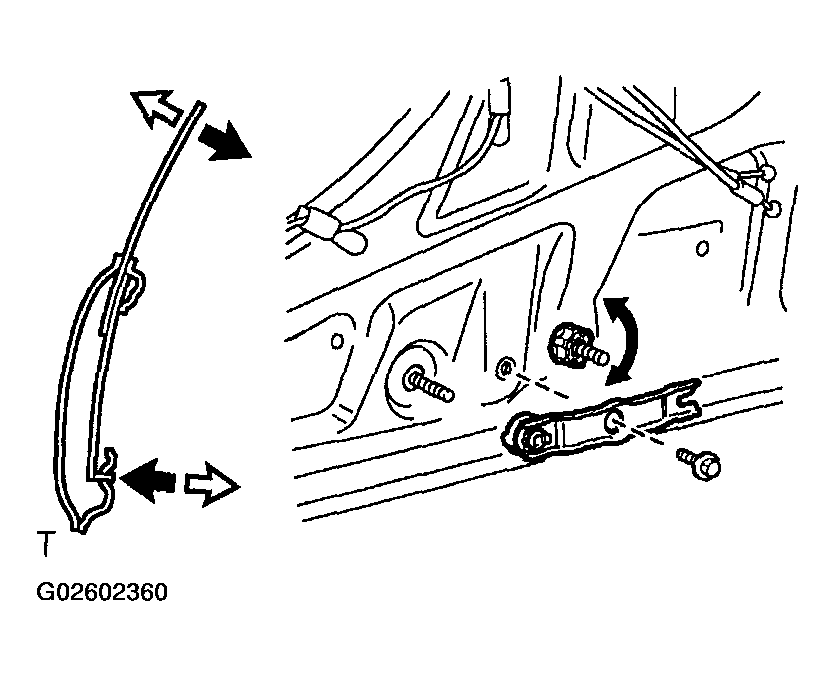

1. Adjust the upper part of the glass inward/outward.
   1. Remove the bolt and lower plate.
   2. Pull the lower plate so that the snap is unlocked.
   3. Remove the snap and lower plate.
   4. Adjust the glass by turning the setting nut.
   5. Reinstall the lower plate, snap and bolt.

      Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)

   Fig 5: Adjusting Upper Part Of Glass Inward/Outward

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

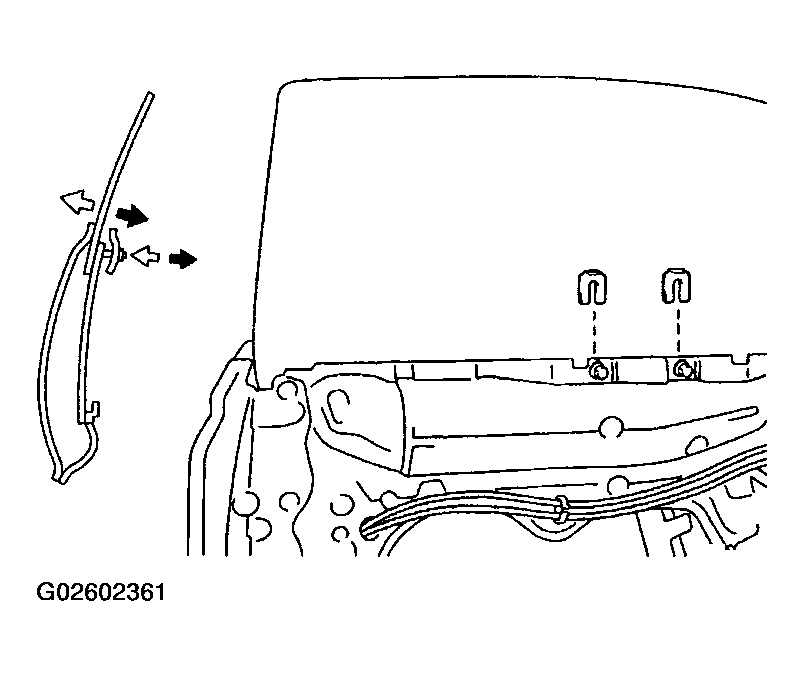

2. Adjust the lower part of the glass inward/outward.
   1. Loosen the 2 nuts on the top of the window regulator.
   2. Insert the shim to adjust the glass position (inside/outside).

      Shim thickness:

      1.0 mm (0.039 in.)

      2.0 mm (0.079 in.)

   3. Tighten the nuts.

      Torque: 8.3 N.m (85 kgf.cm, 69 in.lbf)

      Fig 6: Adjusting Lower Part Of Glass Inward/Outward

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

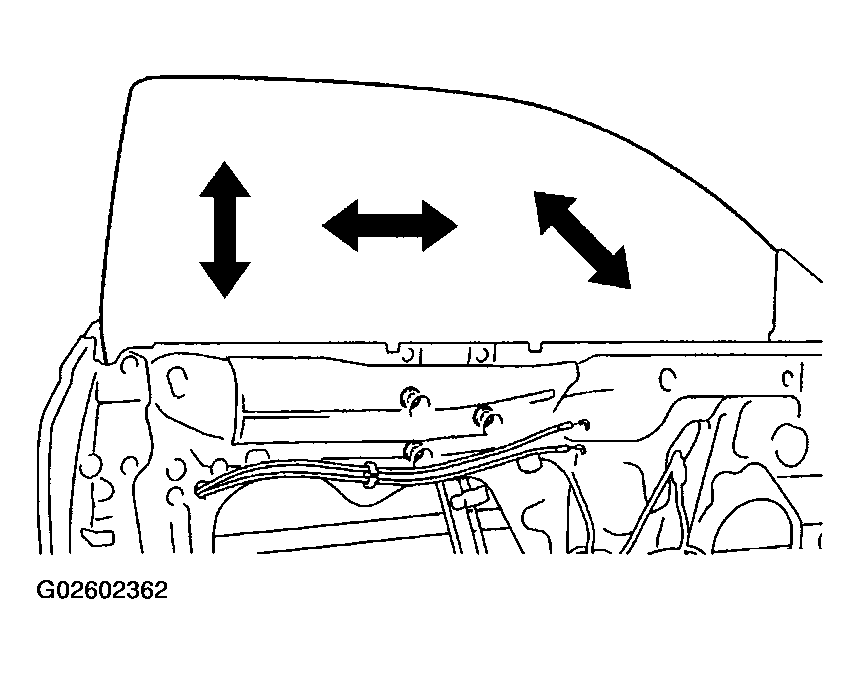

3. Adjust the glass to the proper position (forward/rearward). Loosen the 3 nuts of the carrier plate for adjustment.
   Fig 7: Adjusting Glass To Proper Position

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

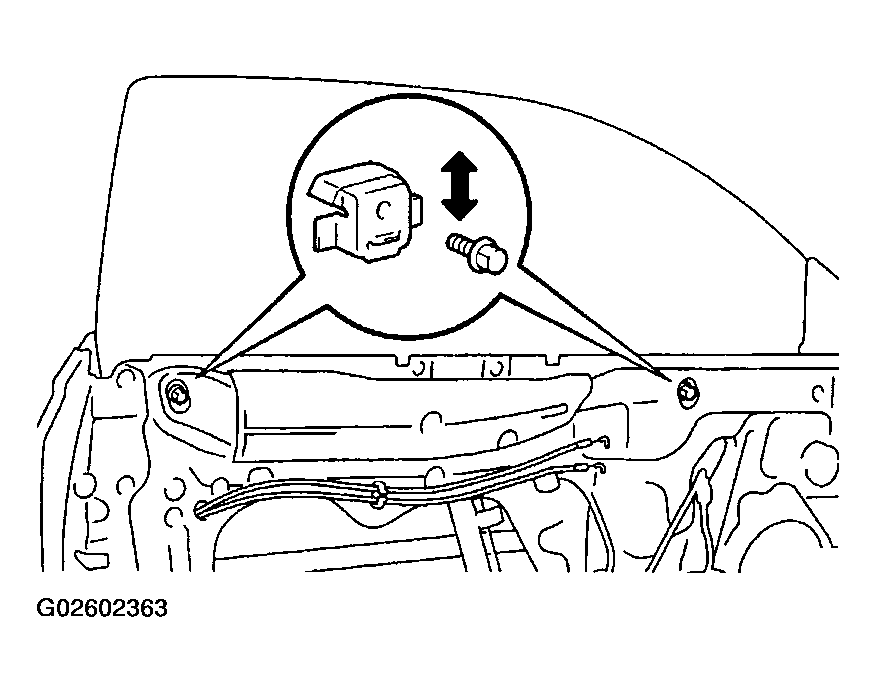

4. Adjust the glass to the proper position vertically. (With the glass fully closed).

   Adjust the door window upper stops.

   Torque: 11 N.m (115 kgf.cm, 8 ft.lbf)

   Fig 8: Adjusting Glass To Proper Position Vertically

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
