Power Door Lock Control System: Location

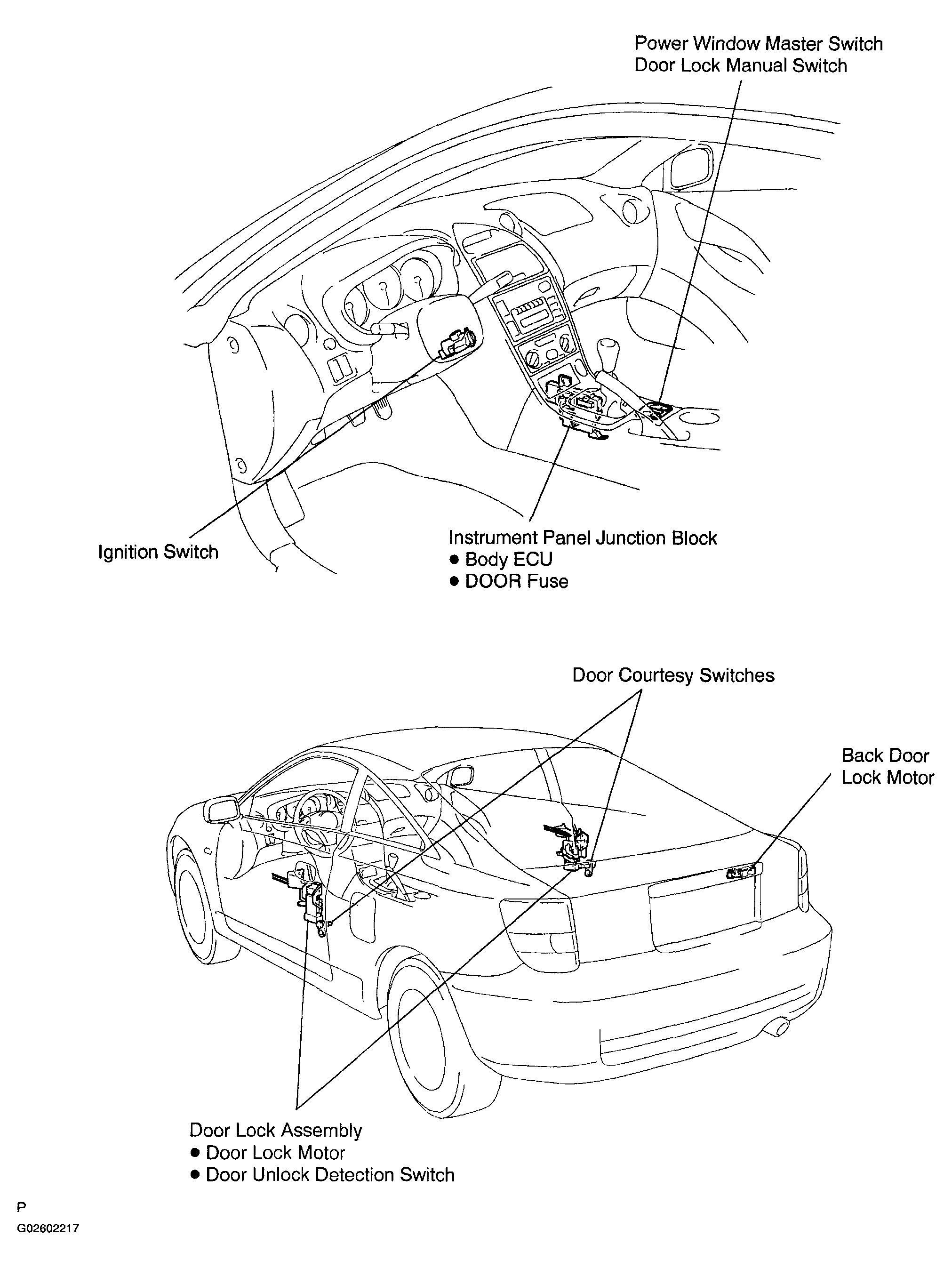

Fig 1: Identifying Power Door Lock Control System Components

G02602217

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
