Home >> Toyota >> 2005 >> Celica GT, Standard >> Repair and Diagnosis >> Restraints >> Restraints Control Systems >> Seat Belt >> Components

Seat Belt: Components

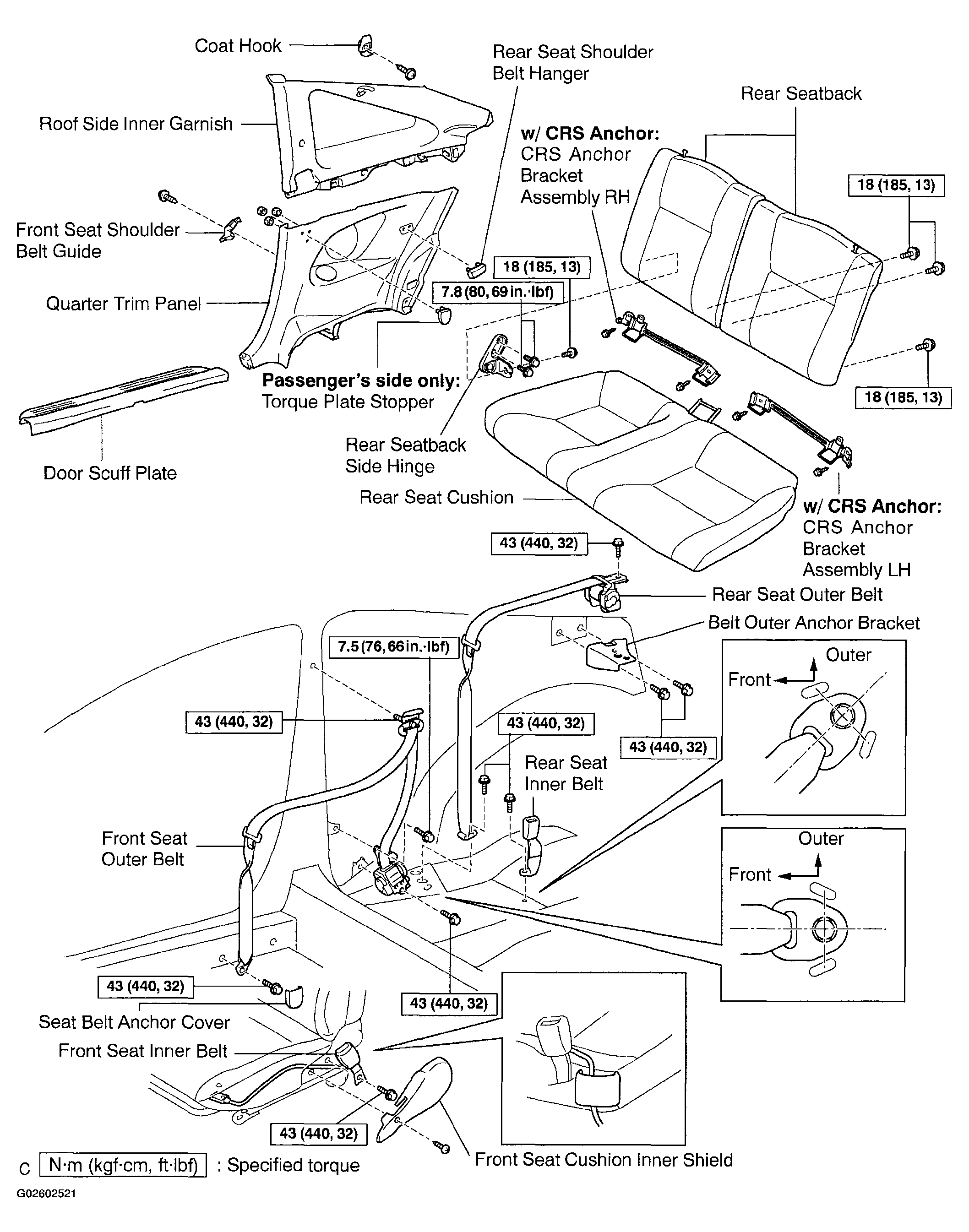

Fig 1: Identifying Seat Belt Components

G02602521

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
