Vehicle Lift And Support Locations

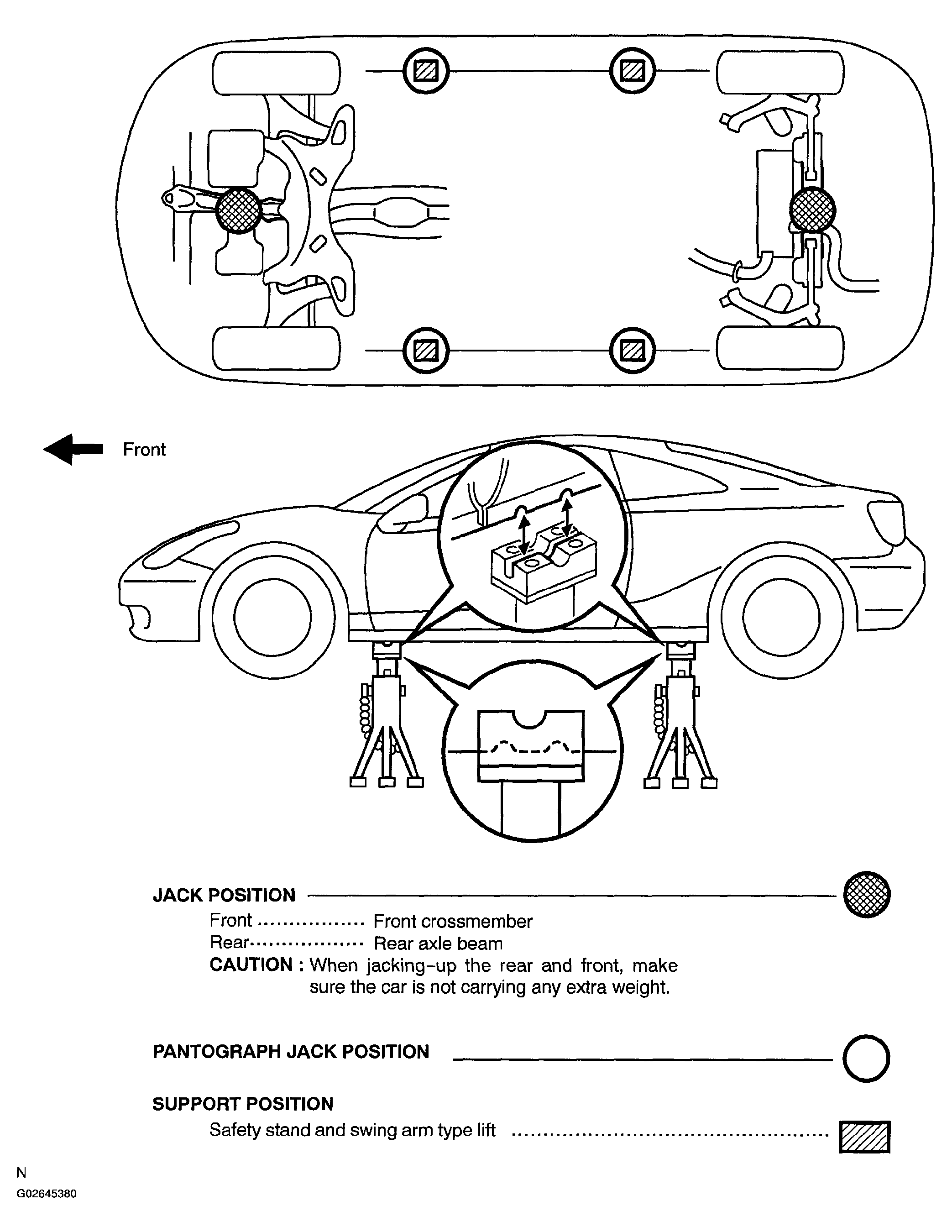

Fig 1: Identifying Vehicle Lift & Support Locations
G02645380Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

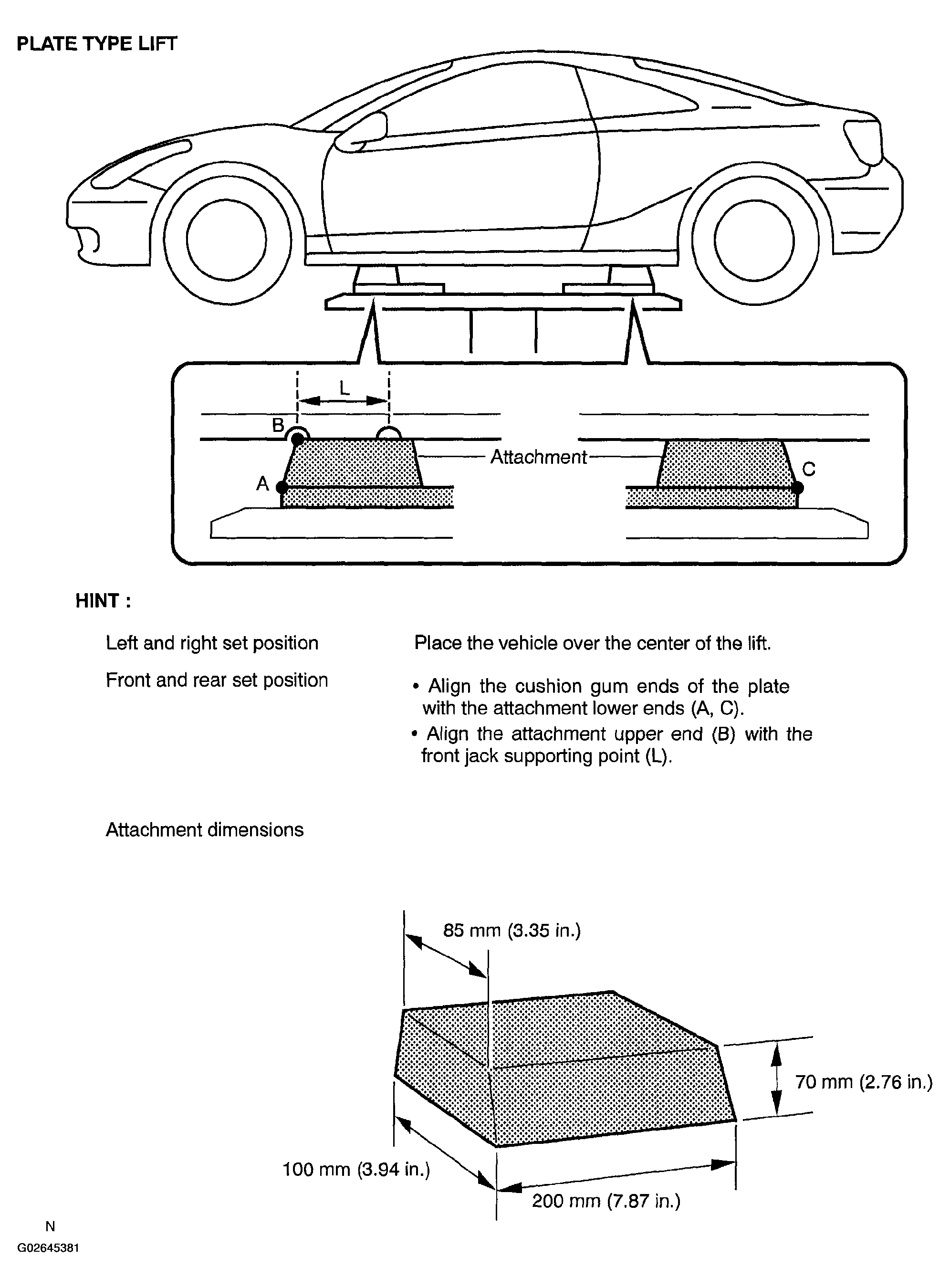

Fig 2: Identifying Vehicle Lift & Support Locations Plate Type Left
G02645381Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
