Crankshaft Position Sensor: Removal

  1. REMOVE INTAKE MANIFOLD (See  REMOVAL  )
  2. REMOVE ENGINE UNDER COVER RH
  3. REMOVE CRANKSHAFT POSITION SENSOR
    1. Disconnect the crankshaft position sensor connector.

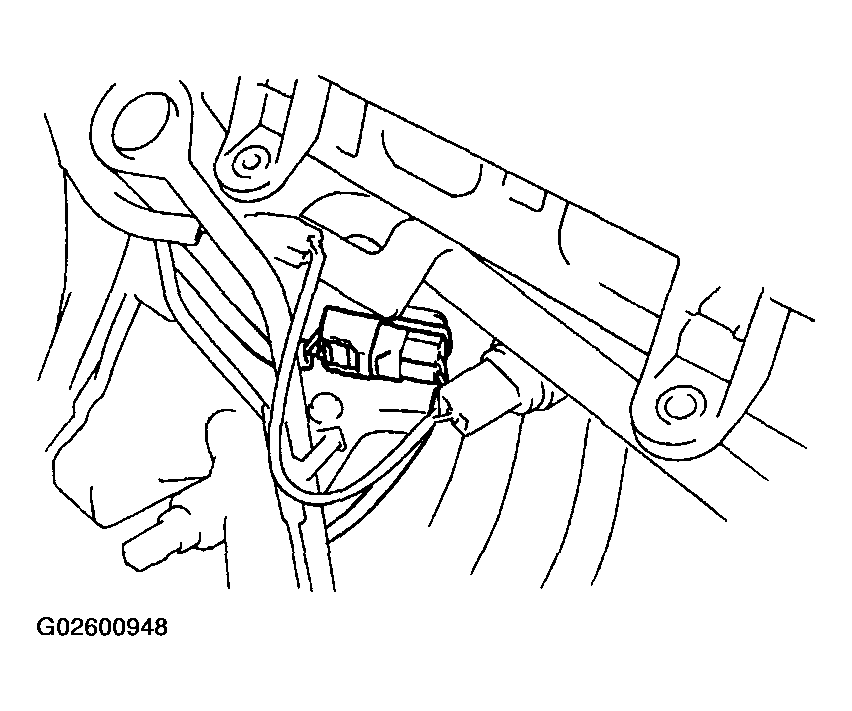

      Fig 1: Disconnecting Crankshaft Position Sensor Connector
      G02600948Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 2 bolt and crankshaft position sensor.

      Torque: 8.8 N.m (90 kgf.cm, 78 in.lbf)

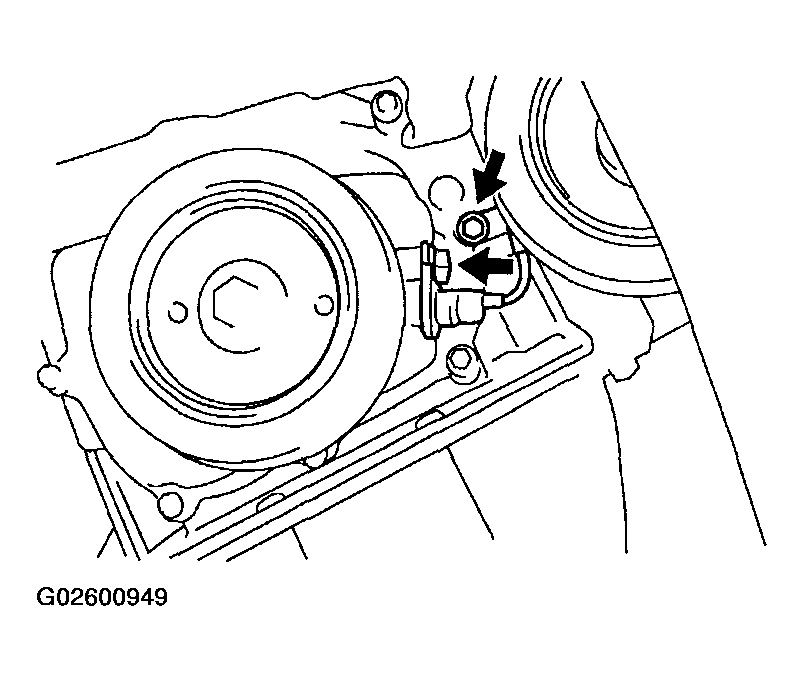

    Fig 2: Removing Crankshaft Position Sensor
    G02600949Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
