Camshaft Position Sensor: Removal

  1. REMOVE NO. 2 CYLINDER HEAD COVER
  2. 1ZZ-FE: REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the connector.
    2. Remove the bolt and camshaft position sensor.

      Torque: 8.8 N.m (90 kgf.cm, 78 in.lbf)

    Fig 1: Removing Camshaft Position Sensor (1ZZ-FE)
    G02600944Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. 2ZZ-GE: REMOVE CAMSHAFT POSITION SENSOR
    1. Disconnect the connector.
    2. Remove the 2 bolts and camshaft position sensor.

      Torque: 8.8 N.m (90 kgf.cm, 78 in.lbf)

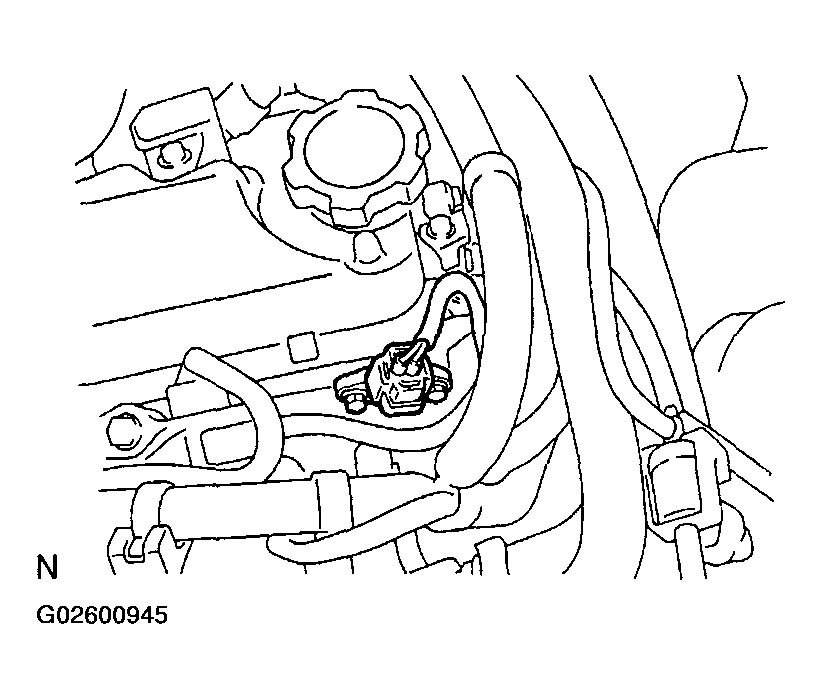

    Fig 2: Removing Camshaft Position Sensor (2ZZ-GE)
    G02600945Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
