Throttle Body (1ZZ-FE): Components

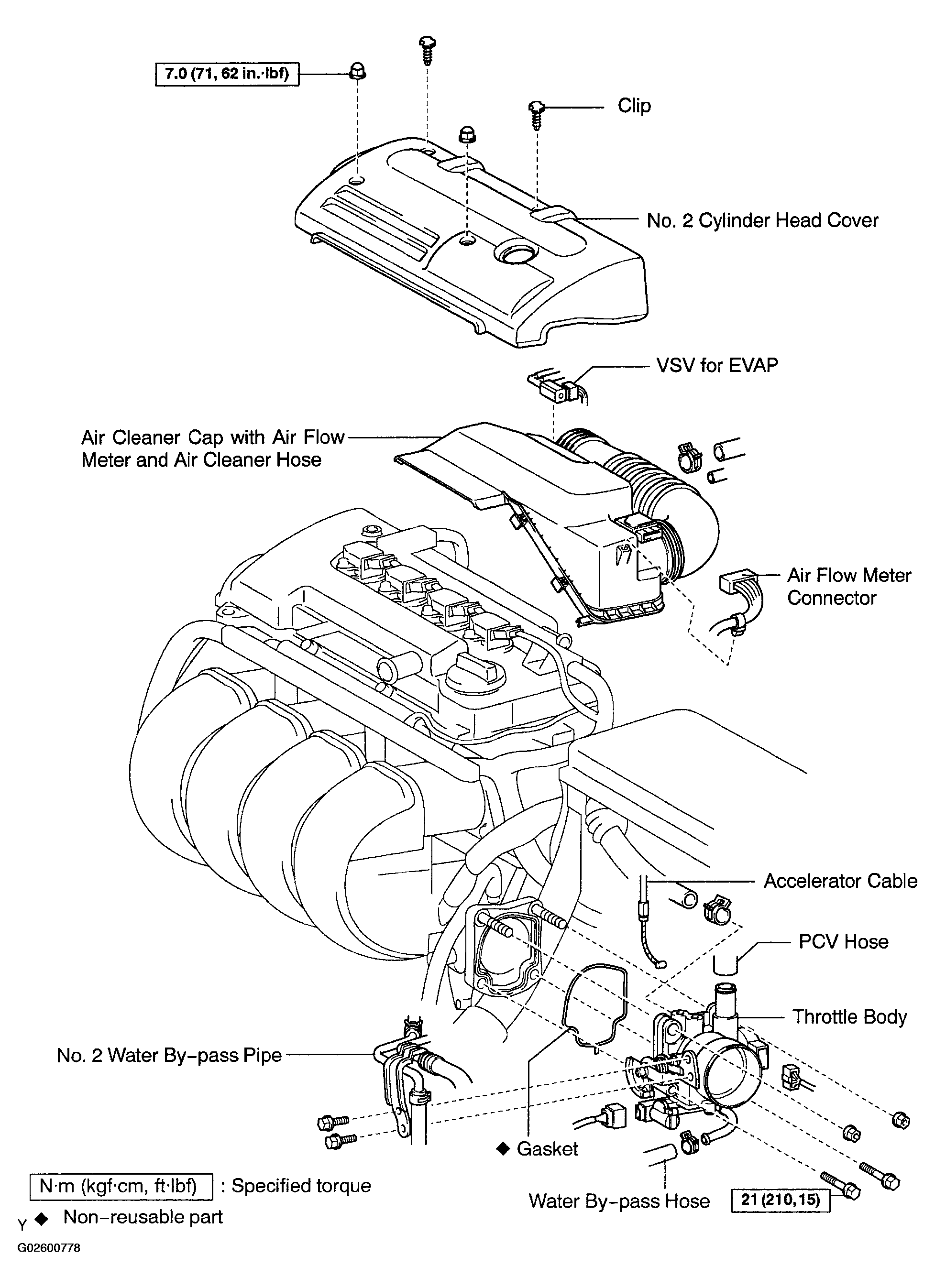

Fig 1: Identifying Throttle Body Components (1ZZ-FE)
G02600778Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
