Idle Air Control (IAC) Valve: Components

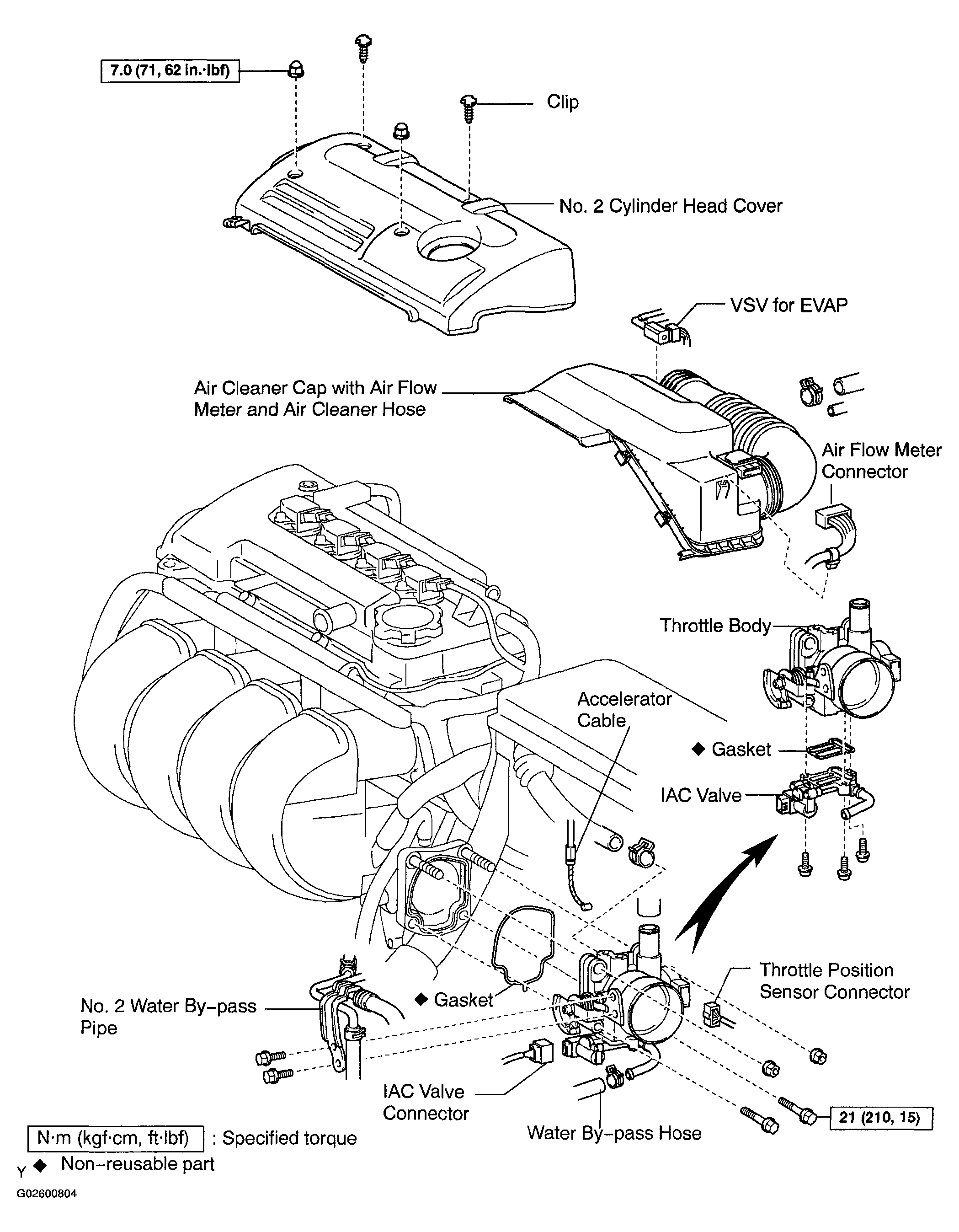

Fig 1: Identifying IAC Valve Components

G02600804

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
