Fuel Pump: Components

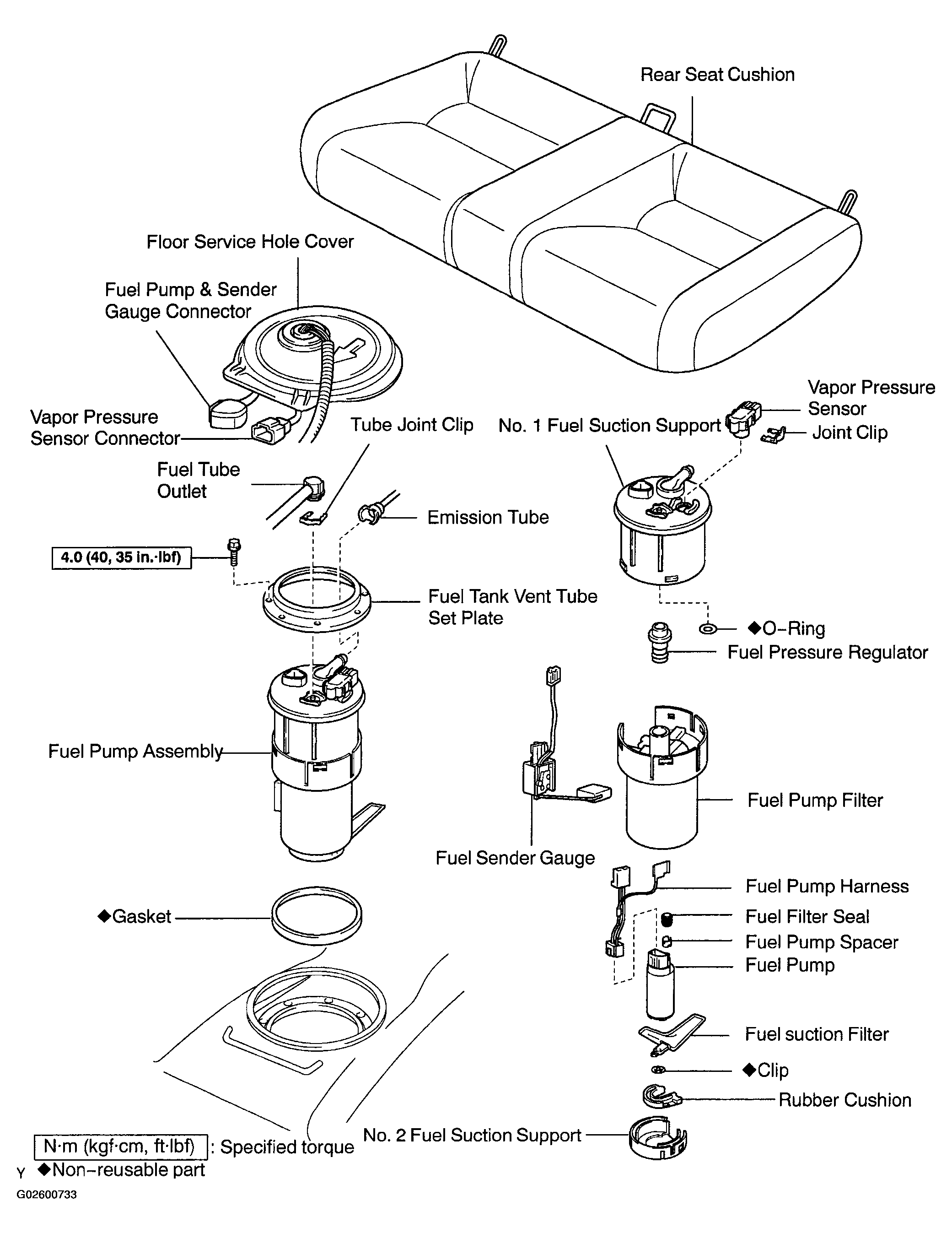

Fig 1: Identifying Fuel Pump Components

G02600733

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
