Charging System: Generator: Removal

REMOVE DRIVE BELT
1. Turn the drive belt tensioner clockwise to relieve tension on the belt, and then remove the belt.
2. Carefully return the tensioner to the unloaded position.

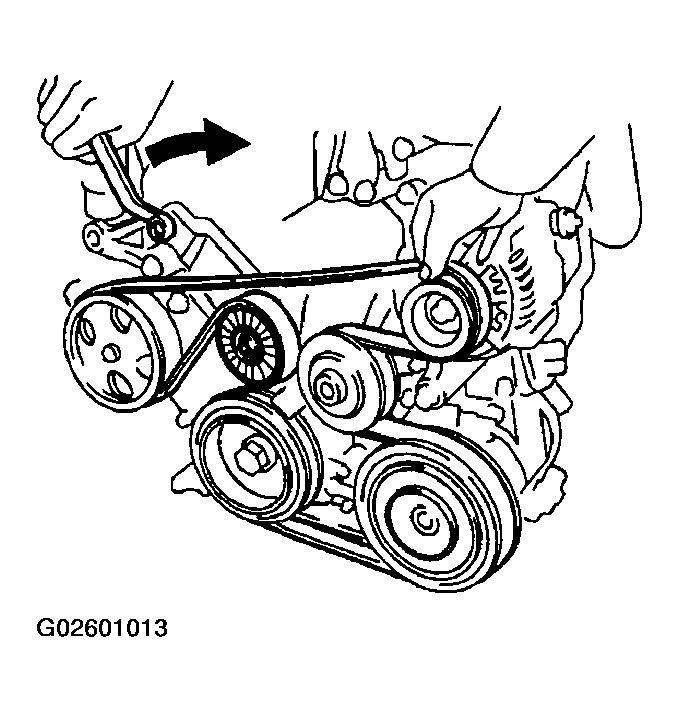

Fig 1: Removing Drive Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE GENERATOR
1. Disconnect the wire clamp from the wire clip on the rectifier end frame.
2. Remove the rubber cap and nut, and disconnect the generator wire.
3. Disconnect the generator connector.

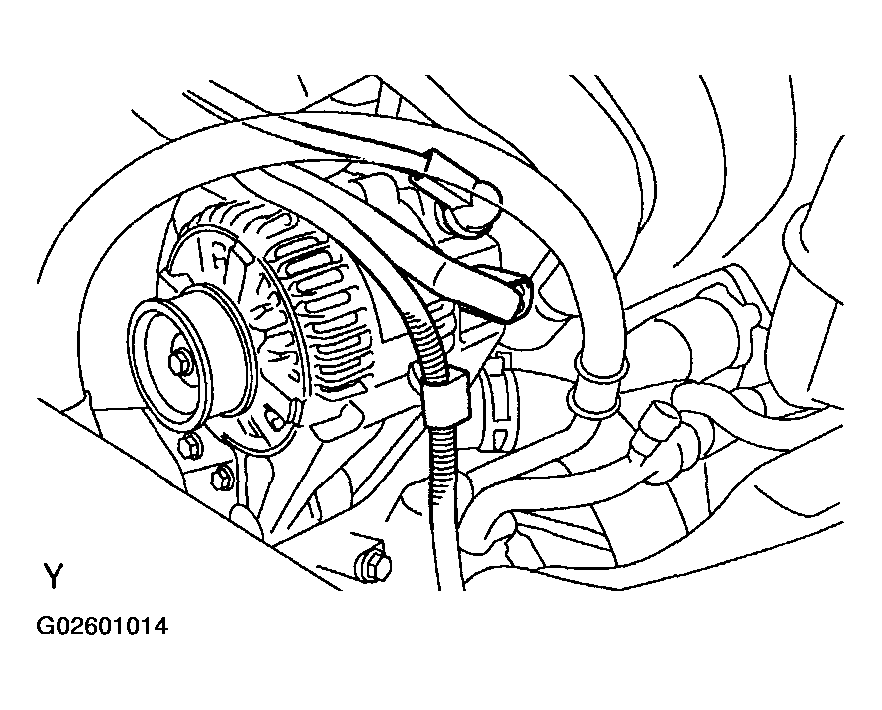

  Fig 2: Disconnecting Wire Clamp From Wire Clip On Rectifier End Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. 2ZZ-GE:
  Remove the 2 bolts and generator bracket.
5. Remove the 2 bolts and generator.

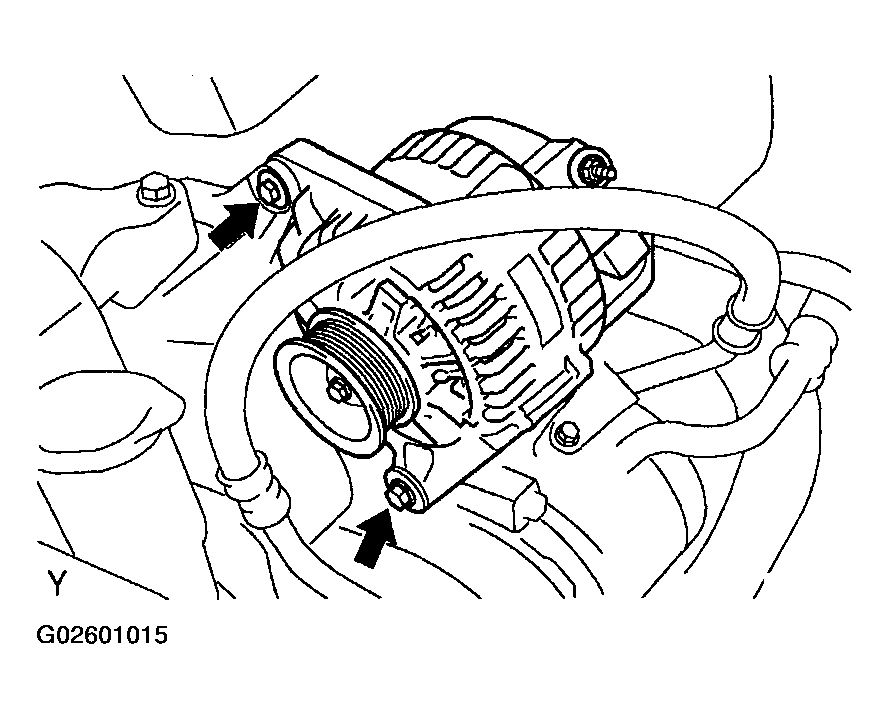

Fig 3: Removing Generator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
