Charging System: Generator: Reassembly

INSTALL ROTOR TO DRIVE END FRAME
1. Place the drive end frame on the pulley.
2. Install the rotor to the drive end frame.
Fig 1: Installing Rotor To Drive End Frame
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RECTIFIER END FRAME

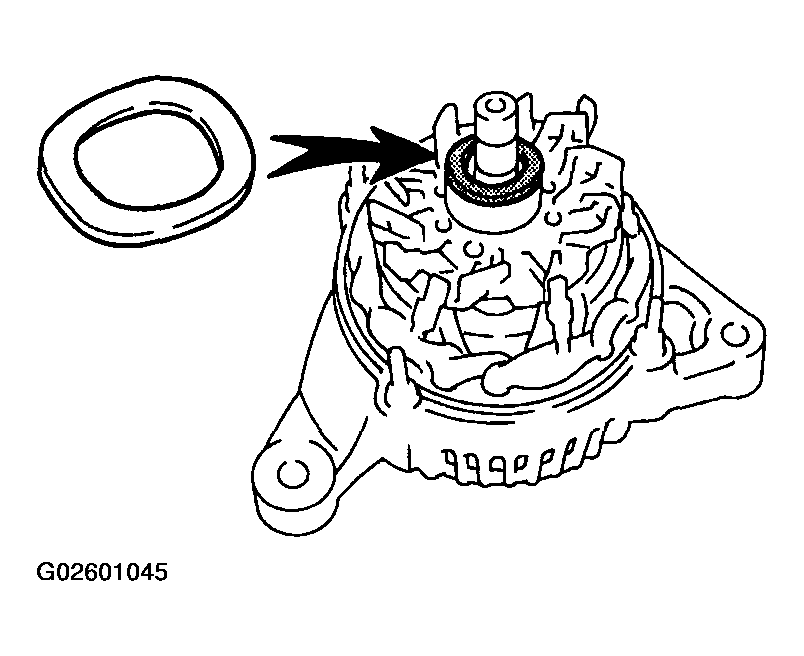

1. Place the generator washer on the rotor.

  Fig 2: Placing Generator Washer On Rotor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

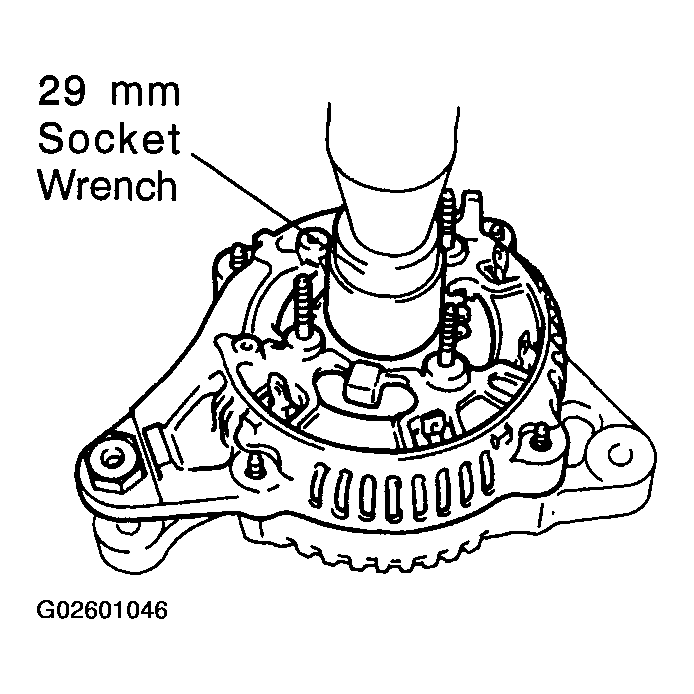

2. Using a 29 mm socket wrench and press, slowly press in the rectifier end frame.

  Fig 3: Pressing In Rectifier End Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

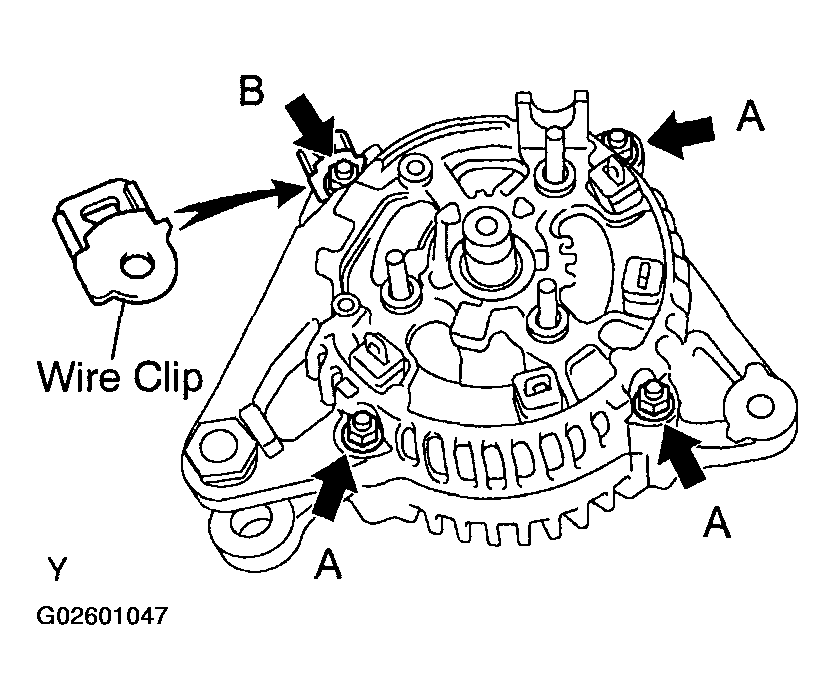

3. Install the wire clip and 4 nuts.
  Torque:

  Nut A 4.5 N.m (46 kgf.cm, 40 in.lbf)

  Nut B 5.4 N.m (55 kgf.cm, 48 in.lbf)
Fig 4: Installing Wire Clip & Nuts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL PULLEY
1. Install the pulley to the rotor shaft by tightening the pulley nut by hand.

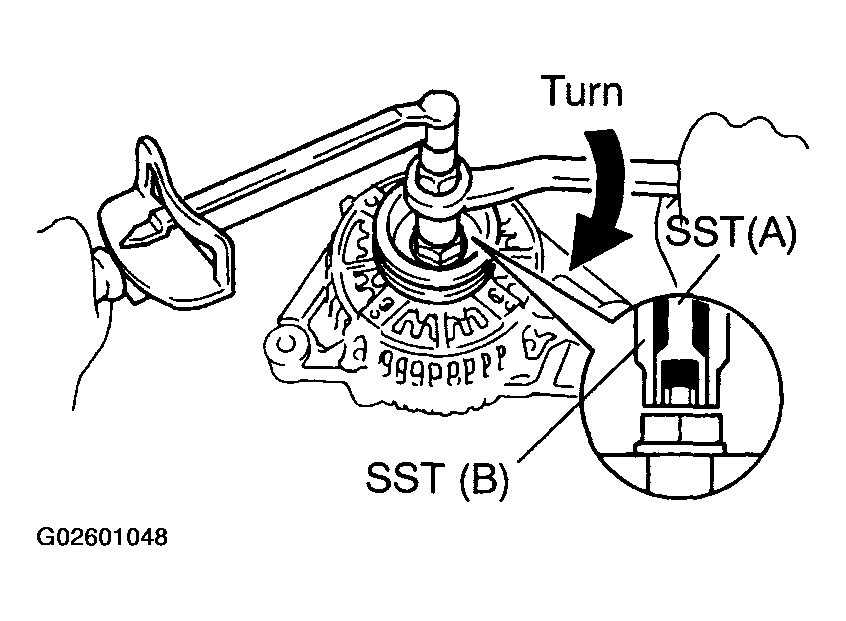

2. Hold SST (A) with a torque wrench, and tighten SST (B) clockwise to the specified torque.
  SST 09820-63011

  Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)
3. Check that SST (A) is secured to the pulley shaft.

  Fig 5: Installing Pulley To Rotor Shaft
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Mount SST (C) in a vise.
5. Insert SST (B) into SST (C), and attach the pulley nut to SST (C).

  Fig 6: Inserting SST (B) Into SST (C)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

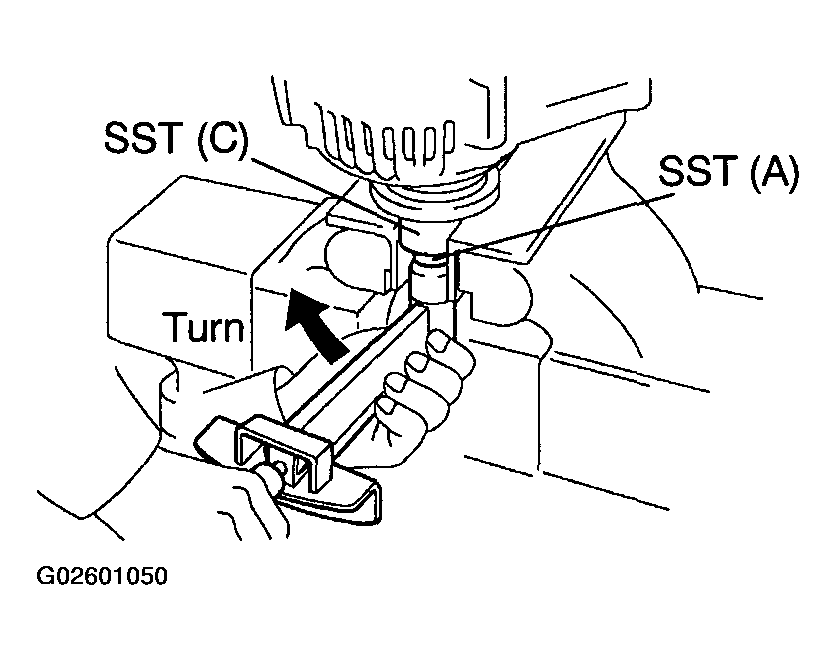

6. To torque the pulley nut, turn SST (A) in the direction shown in the illustration.
  Torque: 111 N.m (1,125 kgf.cm, 81 ft.lbf)
7. Remove the generator from SST (C).

  Fig 7: Removing Generator From SST (C)
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

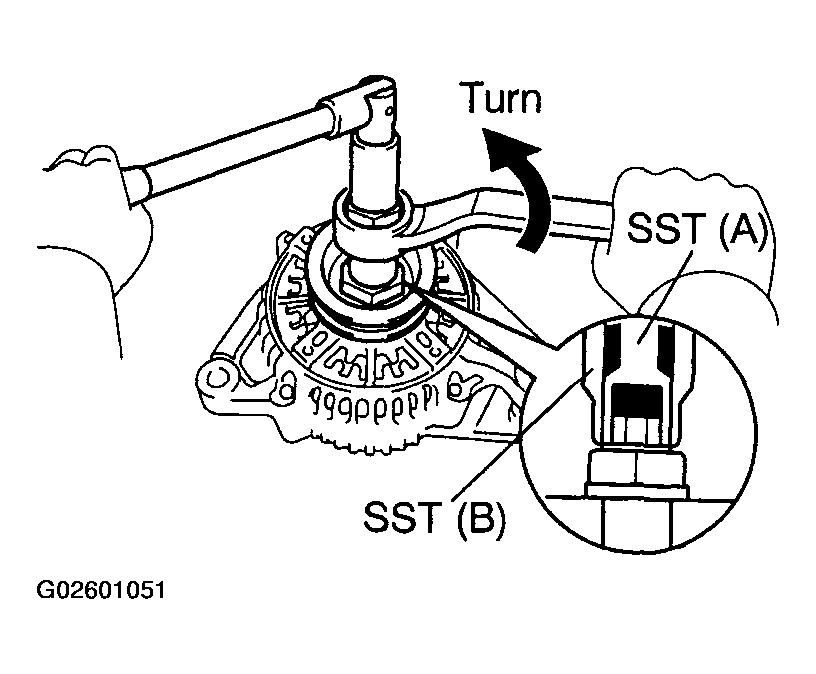

8. Turn SST (B), and remove SST (A and B).
Fig 8: Removing SST (A & B)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL RECTIFIER HOLDER

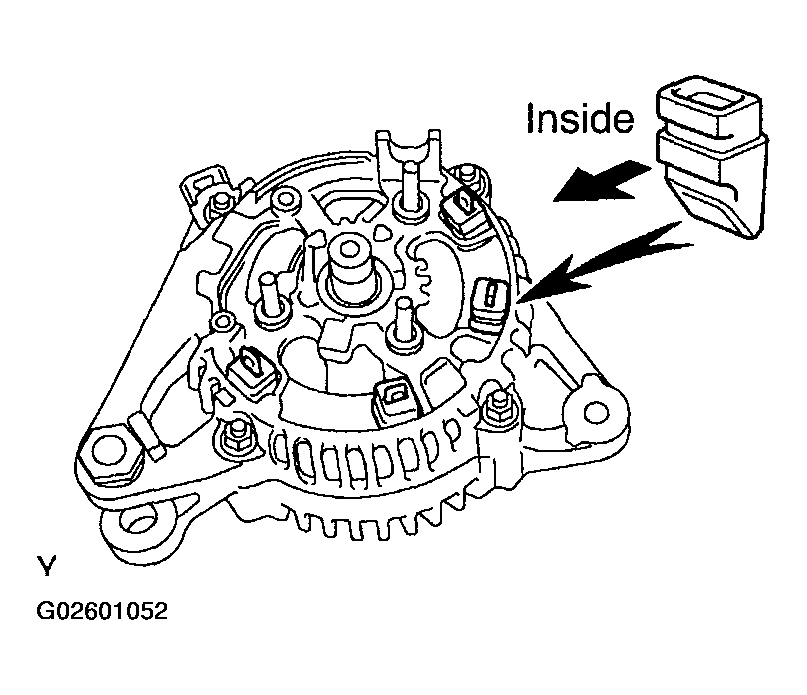

1. Install the 4 rubber insulators on the lead wires.
  NOTE: Be careful of the rubber insulators installation direction.

  Fig 9: Installing Rubber Insulators On Lead Wires
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

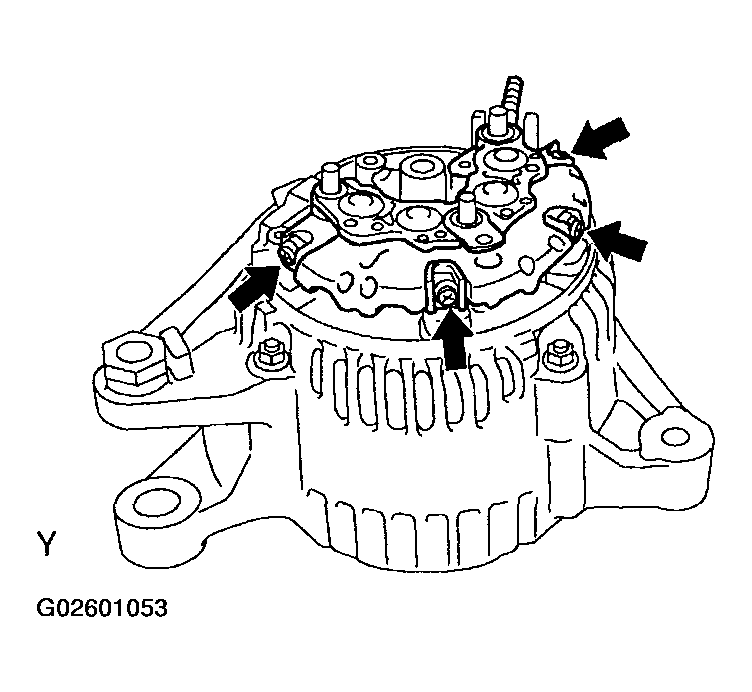

2. Install the rectifier holder while pushing it with the 4 screws
  Torque: 2.9 N.m (30 kgf.cm, 26 in.lbf)
Fig 10: Installing Rectifier Holder
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL VOLTAGE REGULATOR AND BRUSH HOLDER

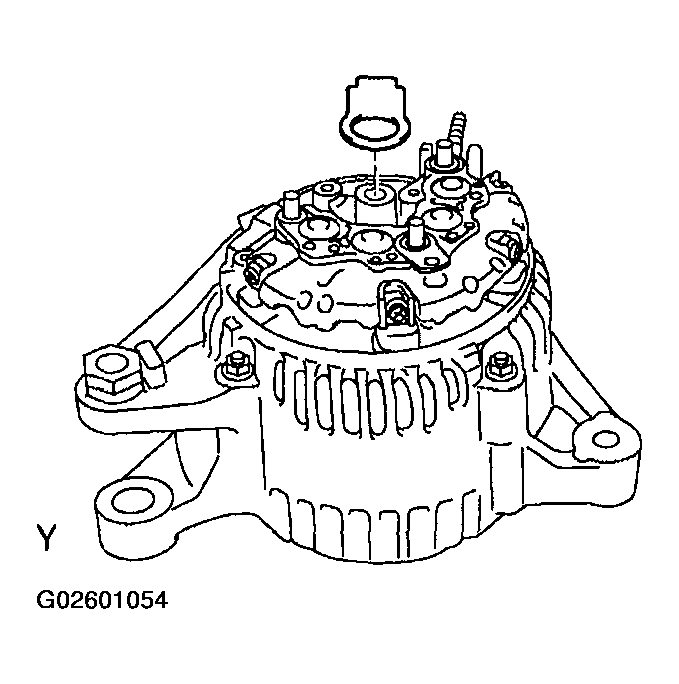

1. Place the seal plate on the rectifier end frame.

  Fig 11: Placing Seal Plate On Rectifier End Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

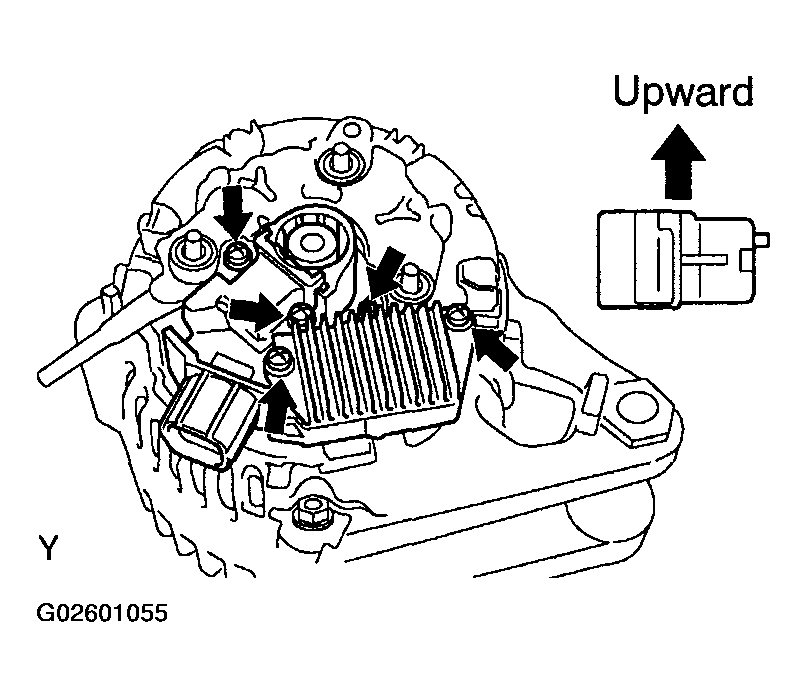

2. Place the voltage regulator and brush holder on the rectifier end frame.
  NOTE: Be careful of the holder installation direction.
3. Install the 5 screws.
  Torque: 2.0 N.m (20 kgf.cm, 18 in.lbf)

  Fig 12: Placing Voltage Regulator & Brush Holder On Rectifier End Frame
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

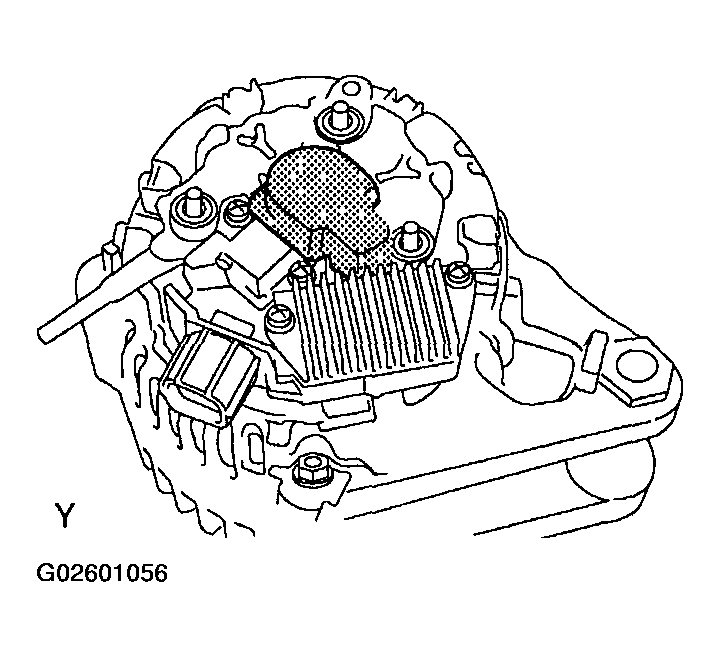

4. Place the brush holder cover on the brush holder.
Fig 13: Placing Brush Holder Cover On Brush Holder
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL REAR END COVER

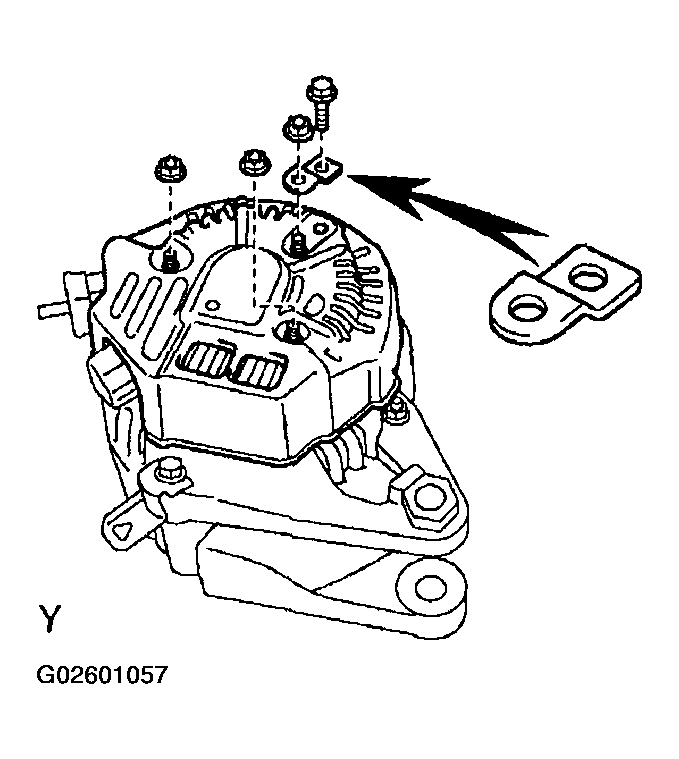

1. Install the end cover and plate terminal with the bolt and 3 nuts.
  Torque:

  Nut 4.4 N.m (45 kgf.cm, 39 in.lbf)

  Bolt 3.9 N.m (39 kgf.cm, 35 in.lbf)
2. Install the terminal insulator with the nut.
  Torque: 4.1 N.m (42 kgf.cm, 36 in.lbf)
CHECK THAT ROTOR ROTATES SMOOTHLY

Fig 14: Installing Rear End Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
