Charging System: Generator: Installation

INSTALL GENERATOR
1. Install the 2 bolts and generator.
  Torque:

  mm head 25 N.m (250 kgf.cm, 18 ft.lbf)

  mm head

  1ZZ-FE: 54 N.m (550 kgf.cm, 40 ft.lbf)

  2ZZ-GE: 58 N.m (590 kgf.cm, 43 ft.lbf)
2. 2ZZ-GE:

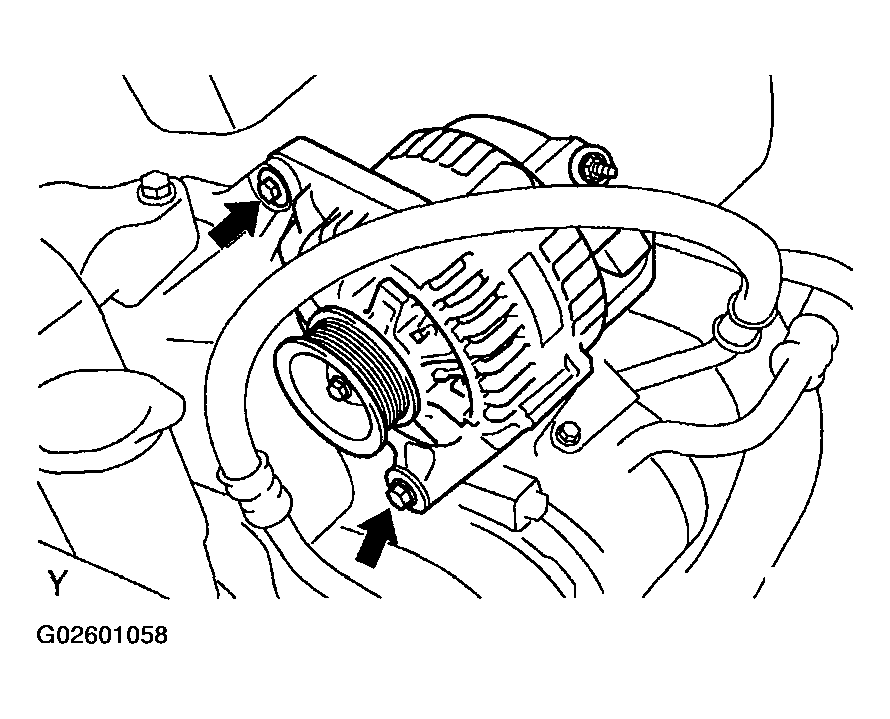

  Fig 1: Installing Generator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  Install the generator bracket with the 2 bolts.

  Torque: 29 N.m (295 kgf.cm, 21 ft.lbf)
3. Connect the generator connector.
4. Connect the generator wire, and install the nut and rubber cap.
5. Connect the generator wire, and install the rubber cap and nut.
INSTALL DRIVE BELT
