Power Mirror Control System: Inspection

INSPECT LEFT SIDE MIRROR SWITCH CONTINUITY

TESTER CONNECTION SPECIFIED CONDITION

Switch position	Tester connection	Specified condition
OFF	-	No continuity
UP	4 - 8 6 - 7	Continuity
DOWN	4 - 7 6 - 8	Continuity
LEFT	5 - 8 6 - 7	Continuity
RIGHT	5 - 7 6 - 7	Continuity

INSPECT RIGHT SIDE MIRROR SWITCH CONTINUITY

TESTER CONNECTION SPECIFIED CONDITION

Switch position	Tester connection	Specified condition
OFF	-	No continuity
UP	3 - 8 6 - 7	Continuity
DOWN	3 - 7 6 - 8	Continuity
LEFT	2 - 8 6 - 7	Continuity
RIGHT	2 - 7 6 - 8	Continuity

If continuity is not as specified, replace the switch.

If continuity is as specified, inspect the switch circuit.

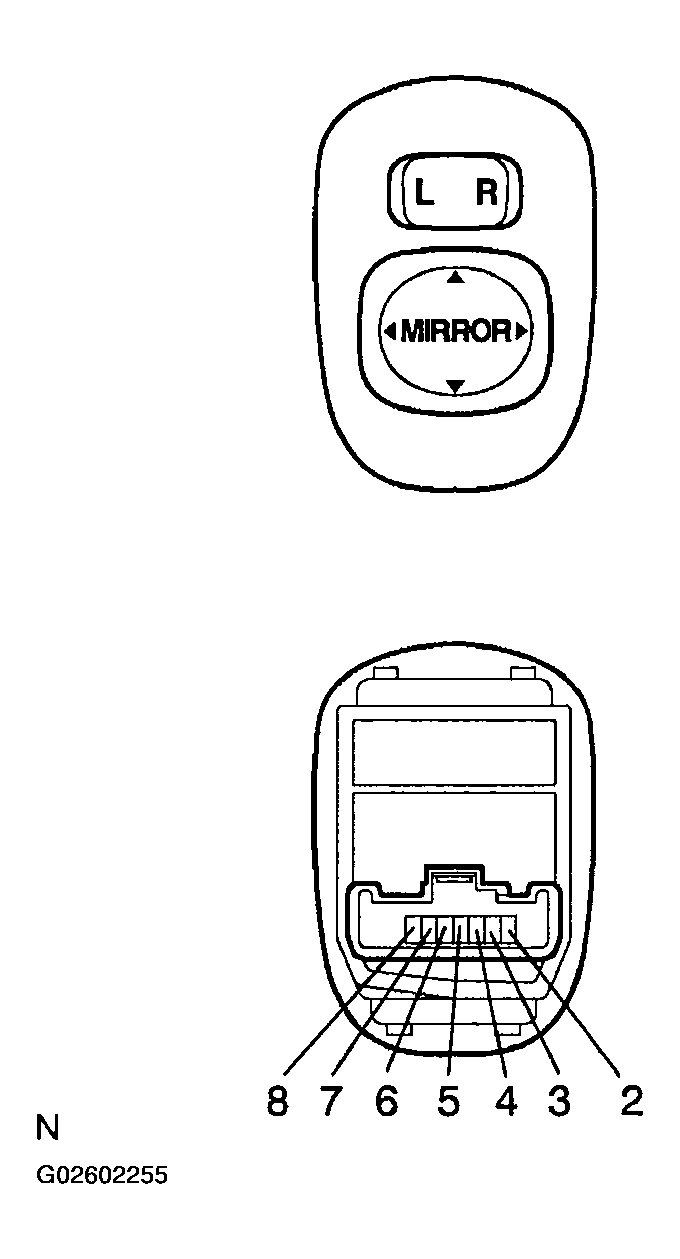

Fig 1: Inspecting Right Side Mirror Switch Continuity

G02602255

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT MIRROR MOTOR OPERATION
1. Connect the battery positive (+) lead from the battery to terminal 3 and the battery negative (-) lead to terminal 1, and check that the mirror turns right side.

  Fig 2: Connecting Battery (+) Lead From Battery To Terminal 3 & Battery (-) Lead To Terminal 1
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Reverse the polarity, and check that the mirror turns left side.

  Fig 3: Checking Mirror Turns Left Side
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Connect the battery positive (+) lead to terminal 3 and the battery negative (-) lead to terminal 5, and check that the mirror turns downward.

  Fig 4: Connecting Battery (+) Lead To Terminal 3 & Battery (-) Lead To Terminal 5
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Reverse the polarity, and check that the mirror turns to the upward.
If operation is not as specified, replace the mirror assembly.

Fig 5: Checking That Mirror Turns To Upward
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
