Restraints Control Systems: Preparation: Clutch: Preparation

SST

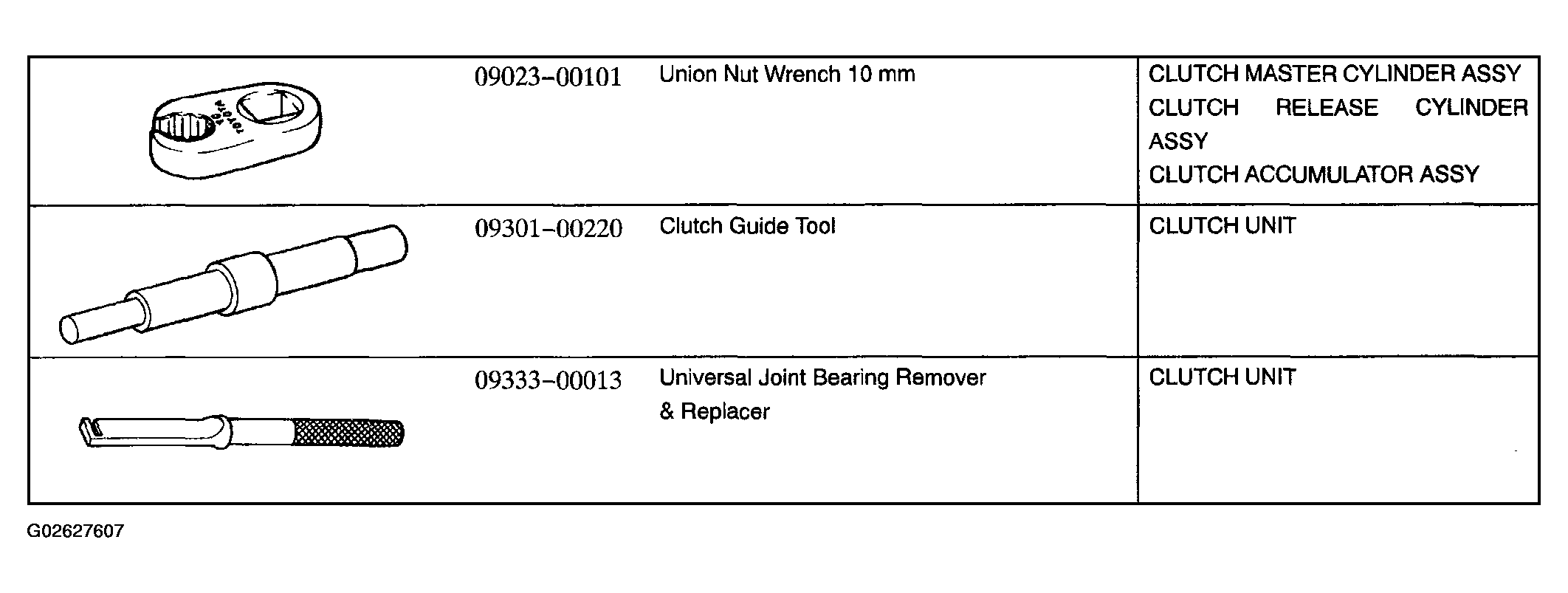

Fig 1: Clutch Special Tool Description Chart
G02627607Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

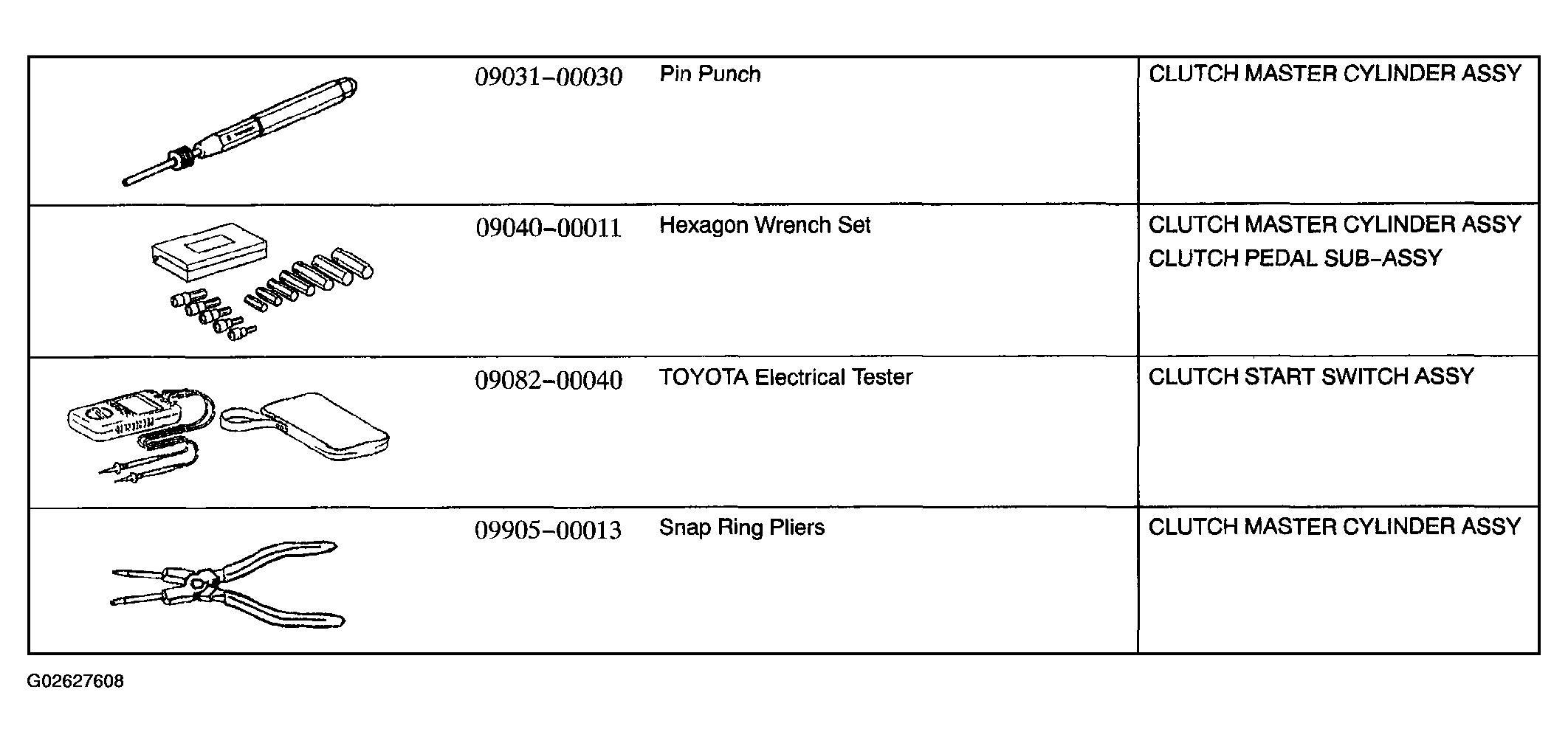

Fig 2: Clutch Recommended Tools Chart
G02627608Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Equipment

CLUTCH EQUIPMENT DESCRIPTION

Vernier calipers
Dial indicator with magnetic base
Torque wrench

Lubricant

LUBRICANT SPECIFICATION

Item Capacity Classification
Brake fluid - SAE J1703 or FMVSS No. 116 DOT3
