Automatic Transmission / Trans: Preparation

SST (Special Service Tools)

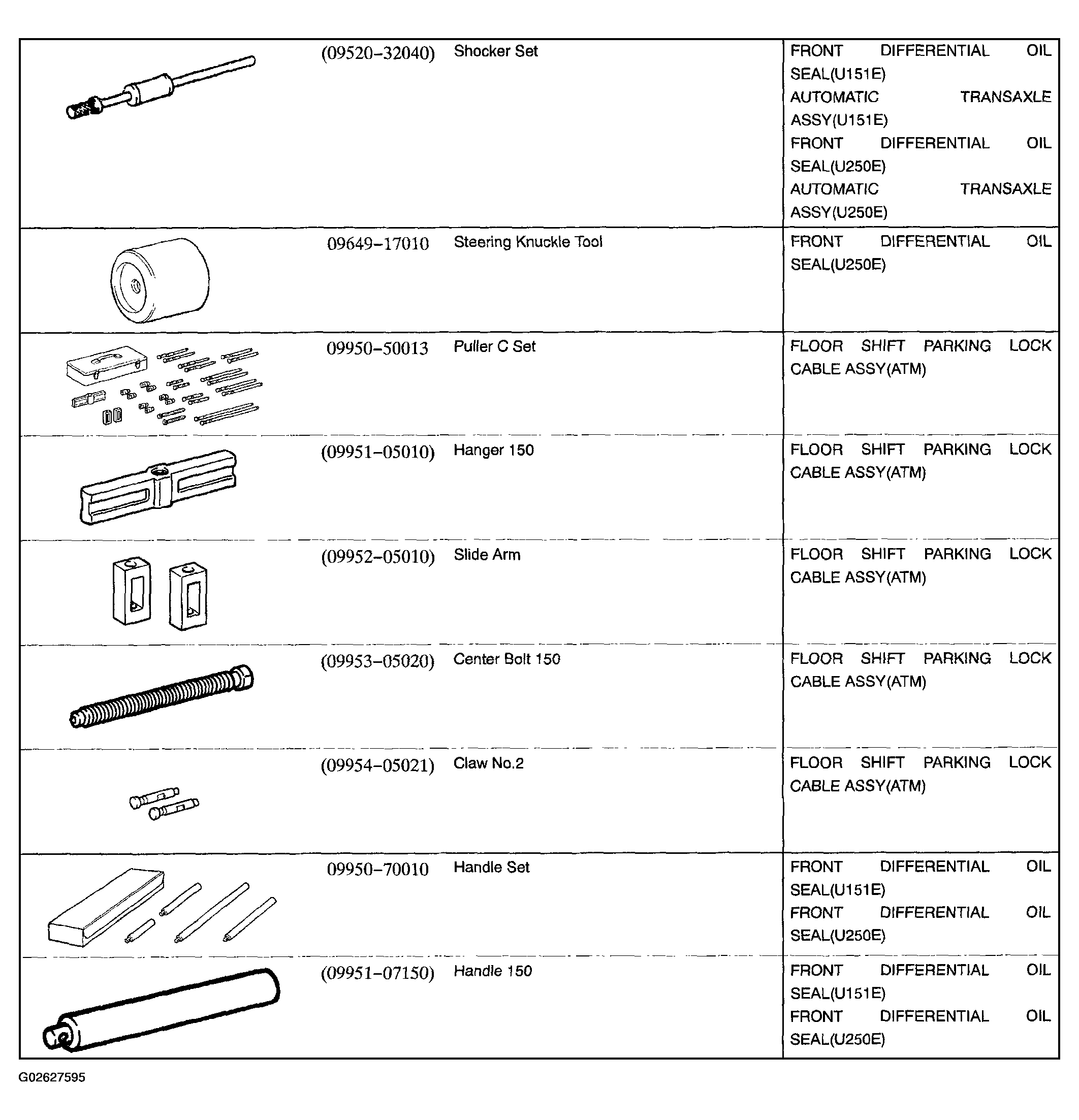

Fig 1: Automatic Transmission / Trans Special Tool Description Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 2: Automatic Transmission / Trans Special Tool Description Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

Fig 3: Automatic Transmission / Trans Recommended Tools Chart (1 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Automatic Transmission / Trans Recommended Tools Chart (2 Of 2)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Torx is a registered trademark of Textron Inc.

SSM (Special Service Materials)

Fig 5: Automatic Transmission / Trans SSM Tool No Description

Equipment

AUTOMATIC TRANSMISSION / TRANS EQUIPMENT DESCRIPTION

Straight edge	Torque converter
Vernier calipers	Torque converter
Dial indicator or dial indicator with magnetic base	Drive plate
Punch
Torque wrench

Lubricant

Fig 6: Lubricant Specification Chart
