Camry Solara SLE, 2D Convertible
>>
Repair and Diagnosis
>>
Engine Performance
>>
Ignition System
>>
Engine Ignition System
>>
Ignition System (2AZ-FE)
>>
System Diagram
System Diagram
Ignition timing is determined by the ECM based on signals from various sensors.

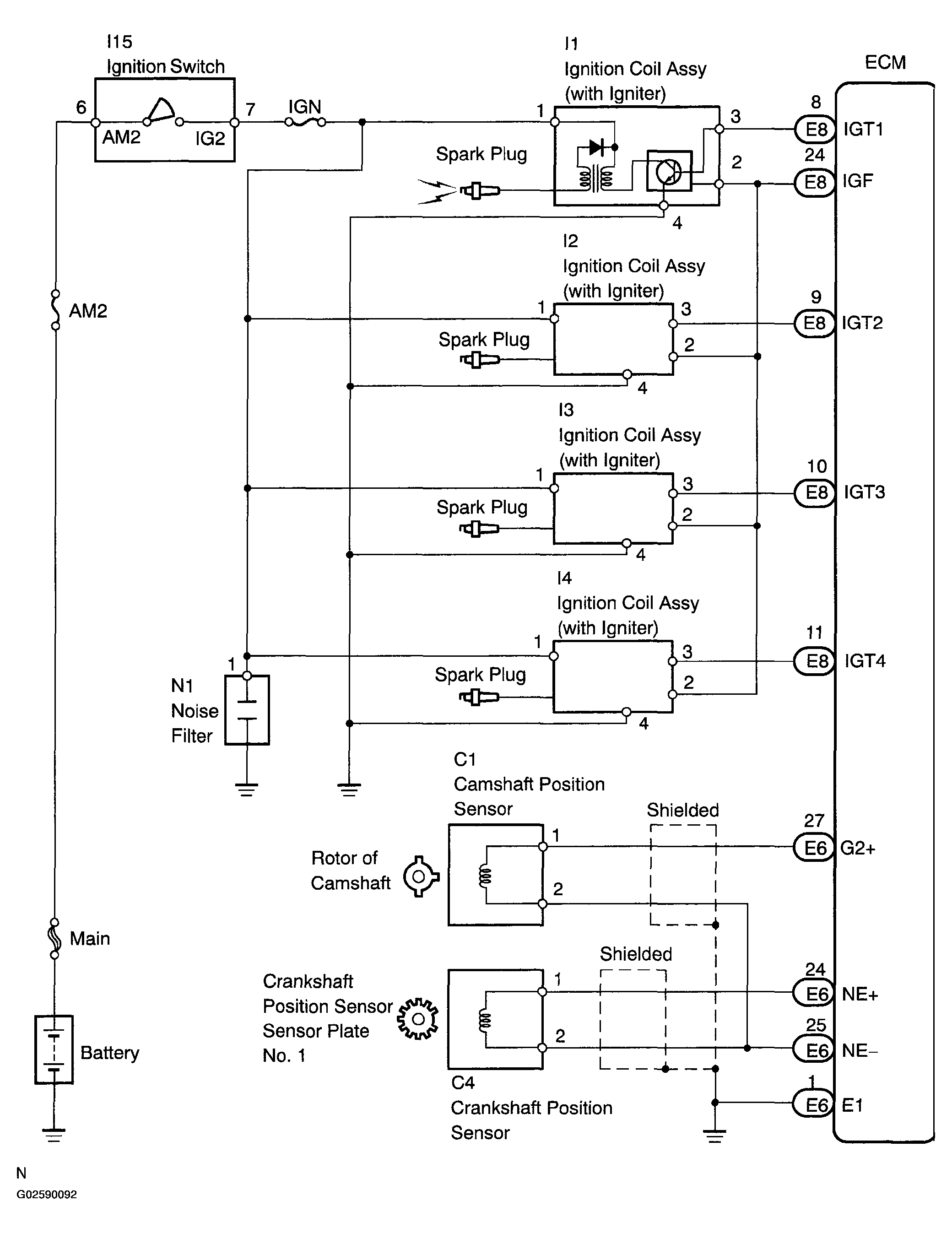

Fig 1: System Diagram of Ignition System (2AZ-FE)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
