Restraints Control Systems: Preparation: Brake: Preparation: SST

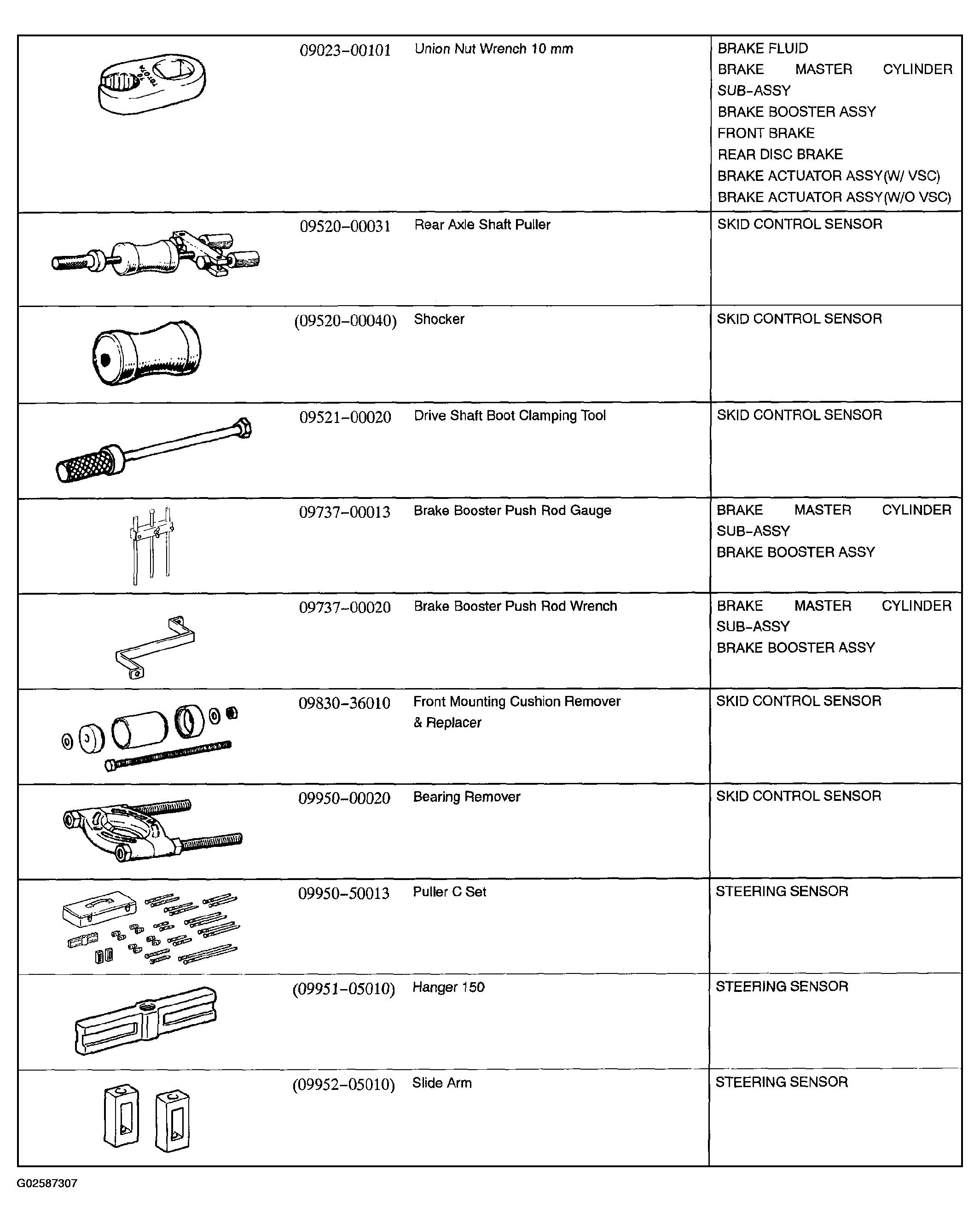

Fig 1: Brake Special Tool Description Chart (1 Of 2)
G02587307Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

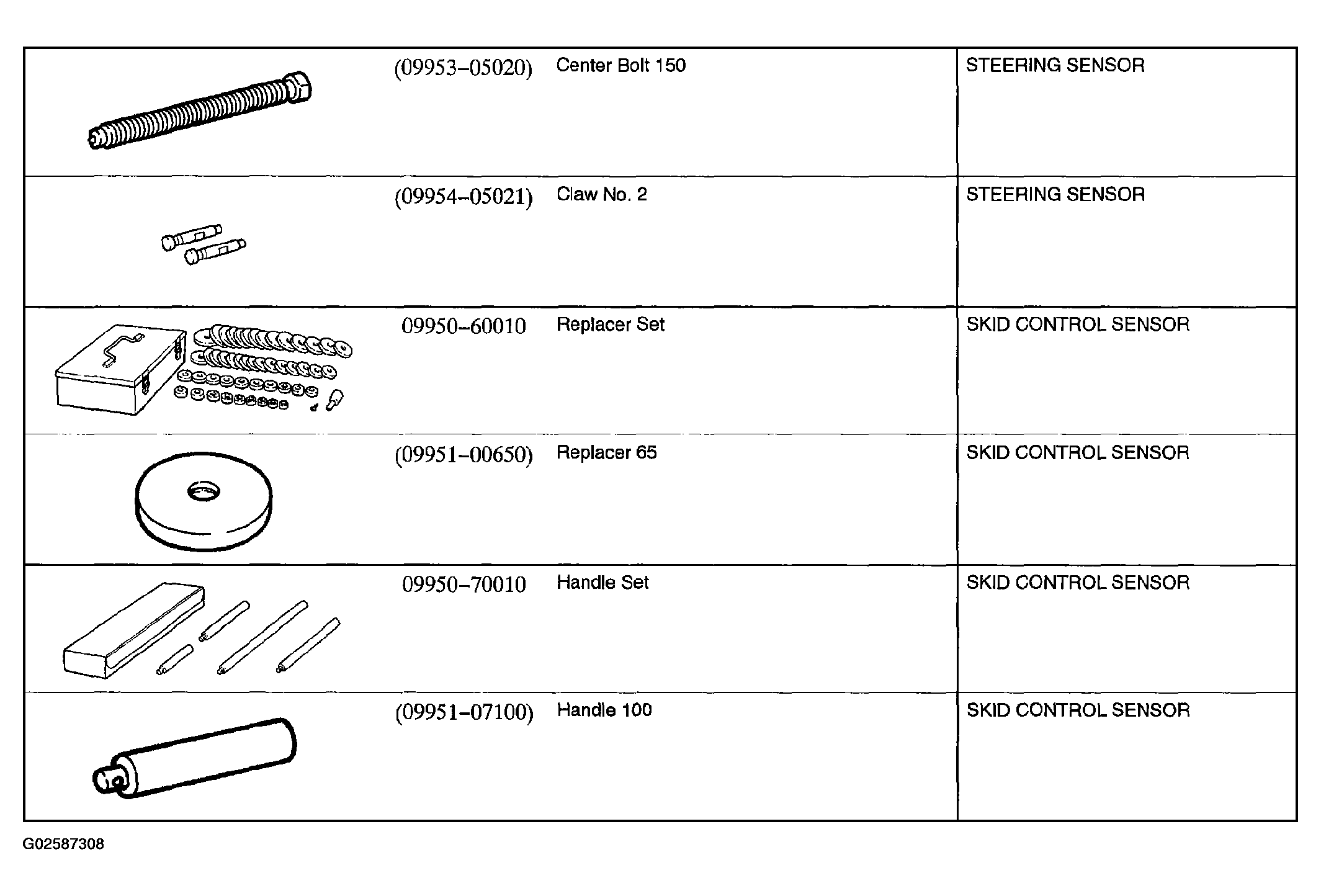

Fig 2: Brake Special Tool Description Chart (2 Of 2)
G02587308Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
