Front Suspension: Preparation

SST

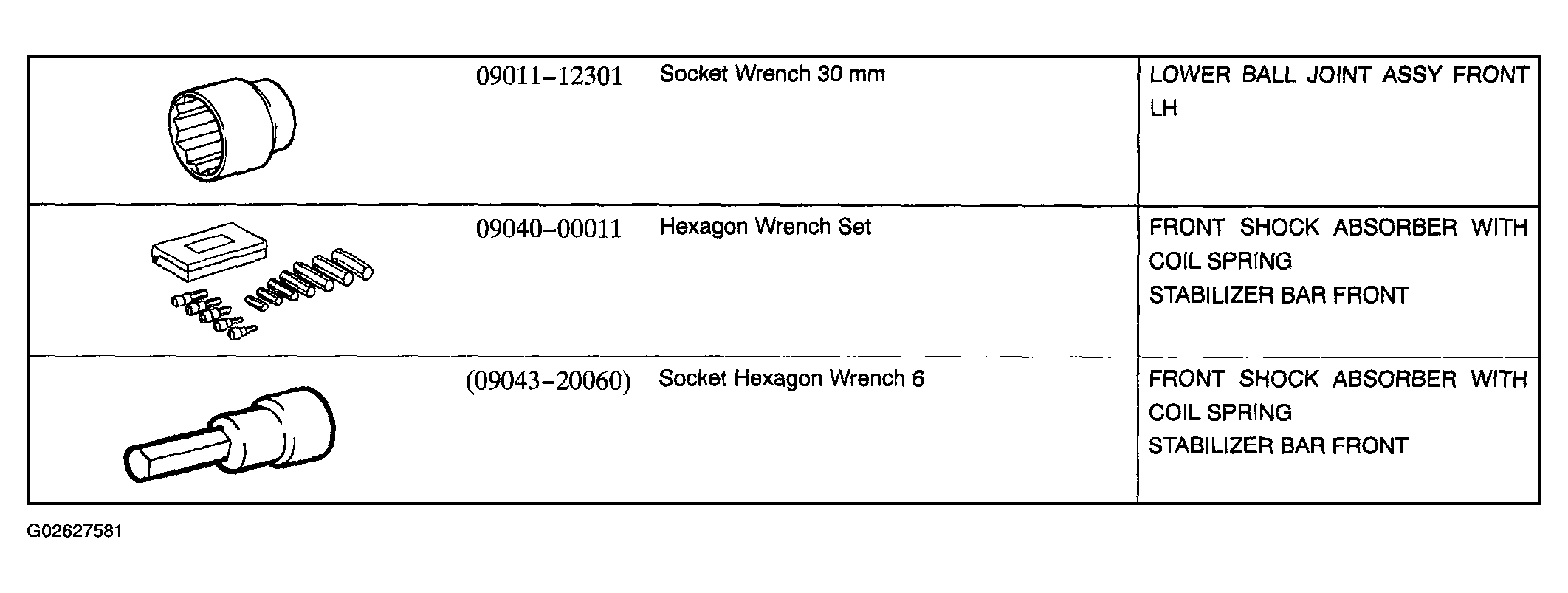

Fig 1: Front Suspension Special Tool Description Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Recommended Tools

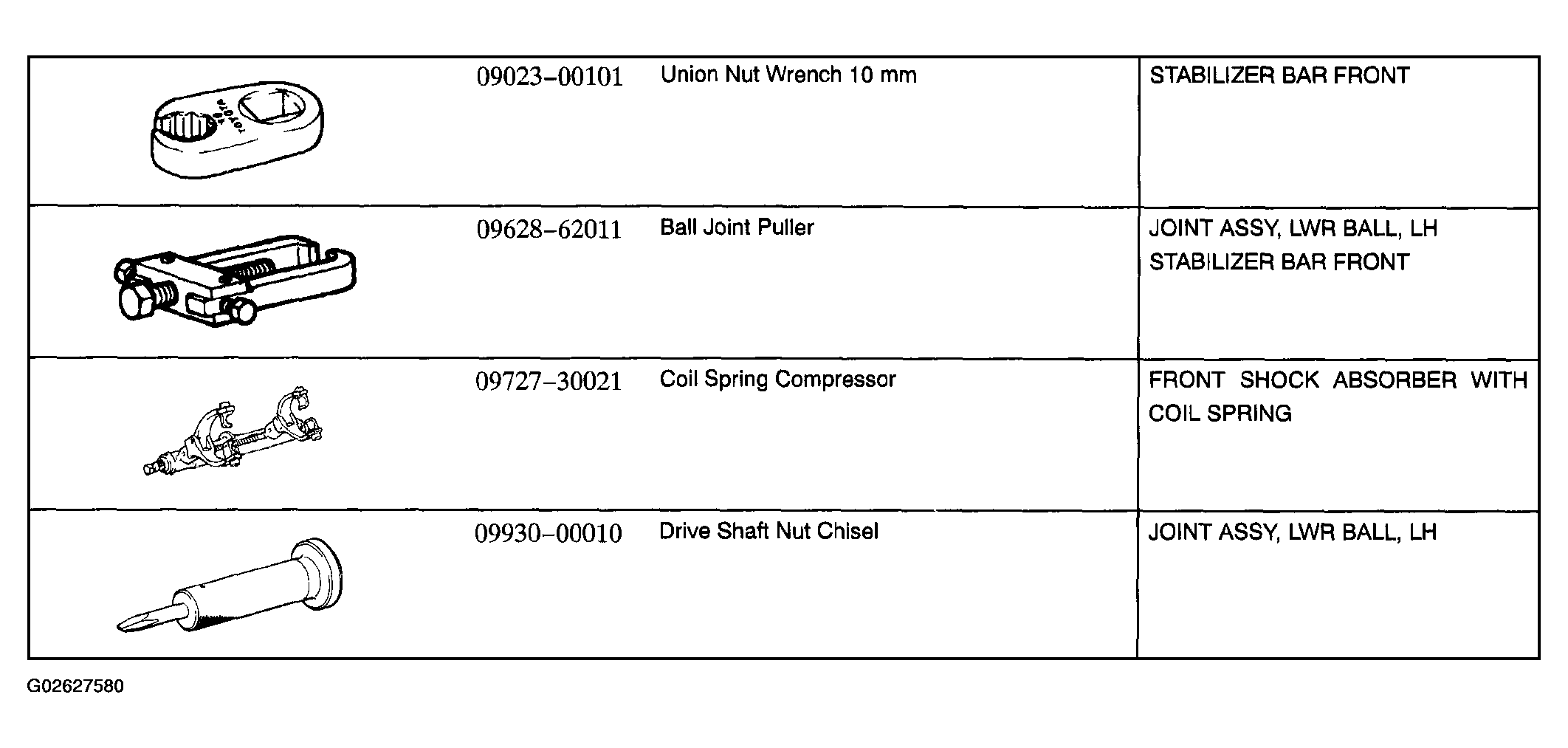

Fig 2: Front Suspension Special Tool Description Chart

Equipment

FRONT SUSPENSION EQUIPMENT DESCRIPTION

Torque wrench
Dial indicator with magnetic base
Tire pressure gauge
Alignment tester
Toe-in gauge
Angle gauge
Plastic hammer
Engine Sling Device
Universal Engine Lifter
Chain Block
