Throttle Body ASSY (2AZ-FE): Components

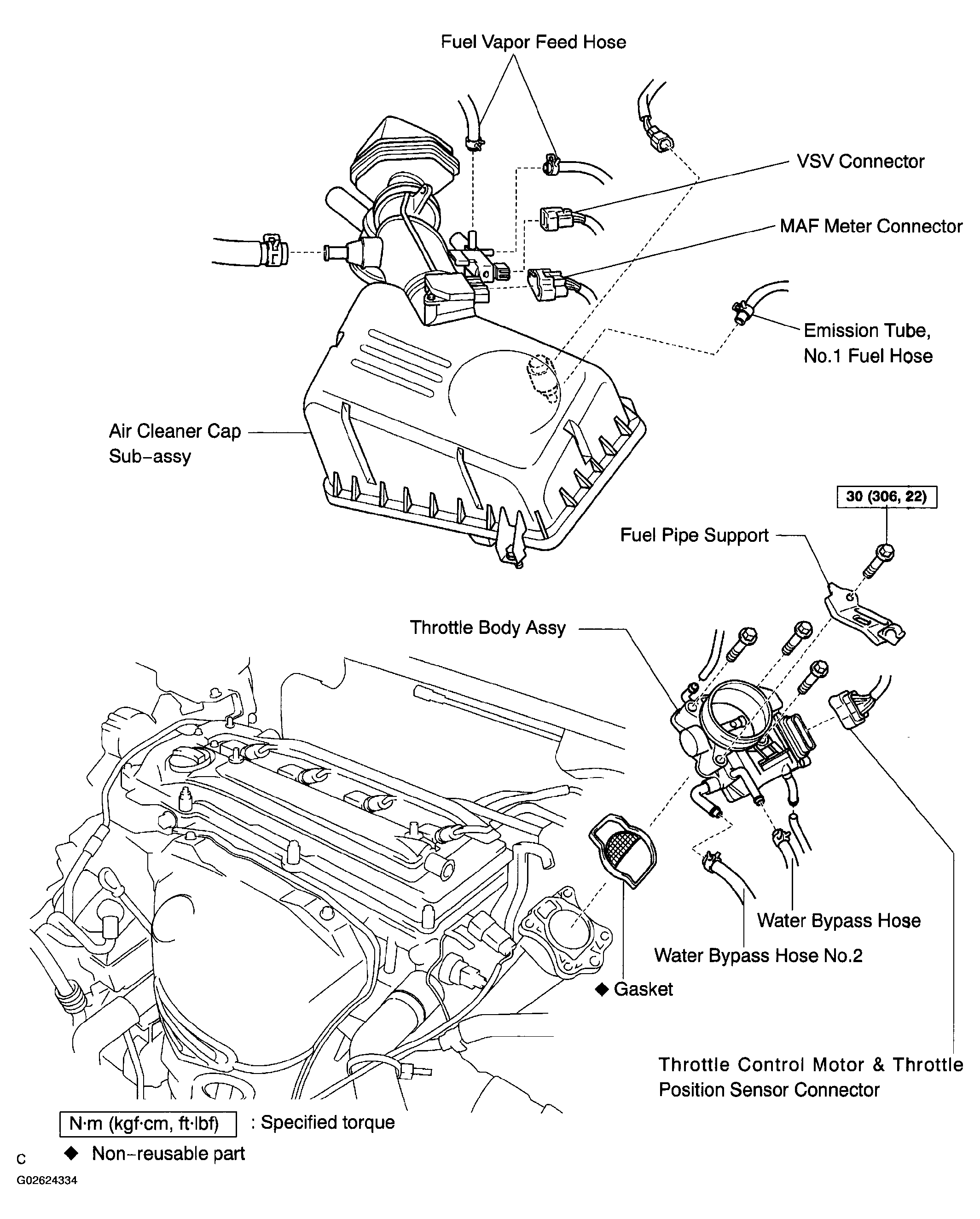

Fig 1: Throttle Body Assembly Connector Terminals With Torque Specifications (2AZ-FE)

G02624334

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
