Fuel Injector ASSY (1MZ-FE/3MZ-FE): Components

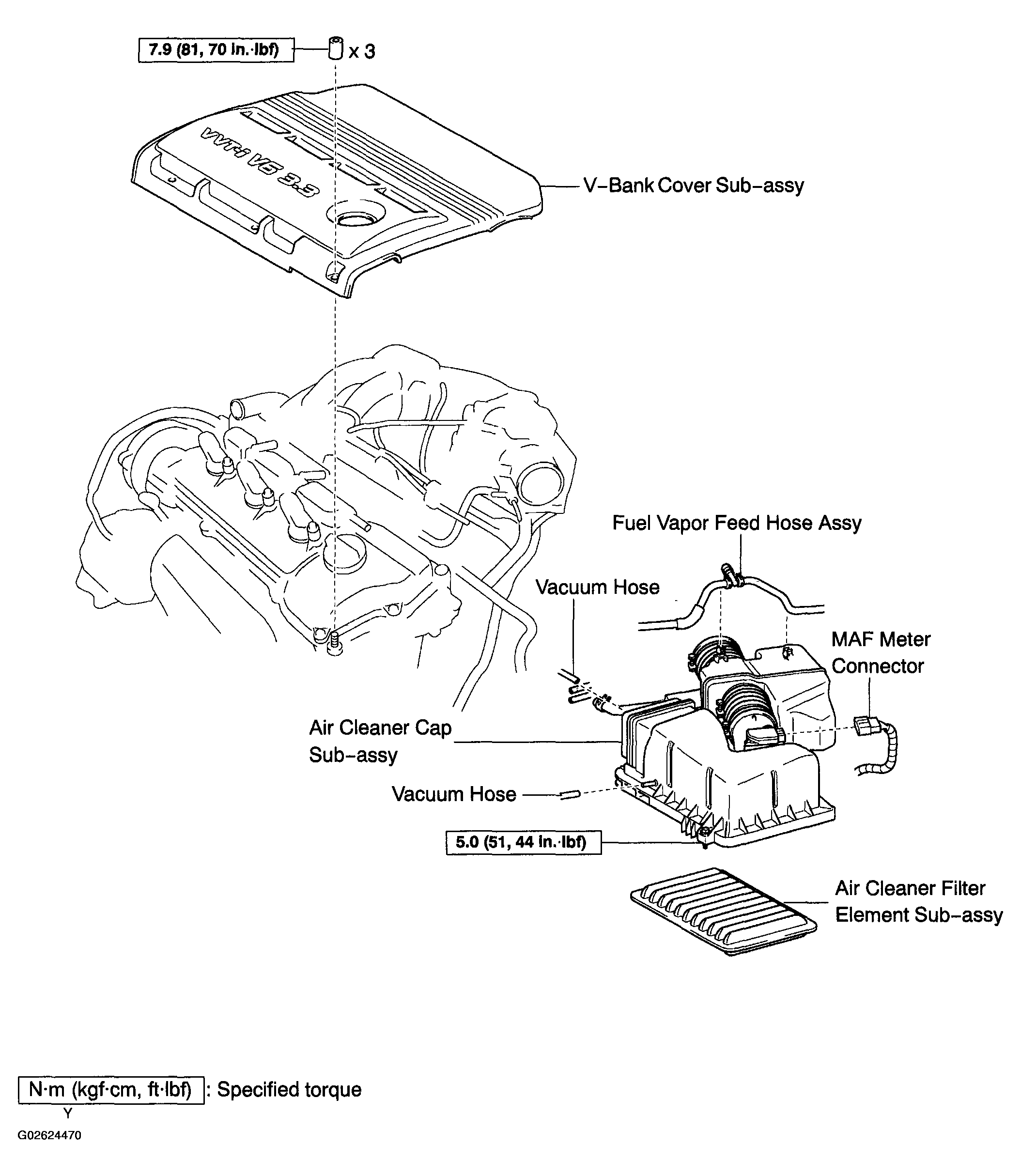

Fig 1: Fuel Injector Assy (1Mz-Fe/3Mz-Fe) Replacement Components With Torque Specifications (1 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

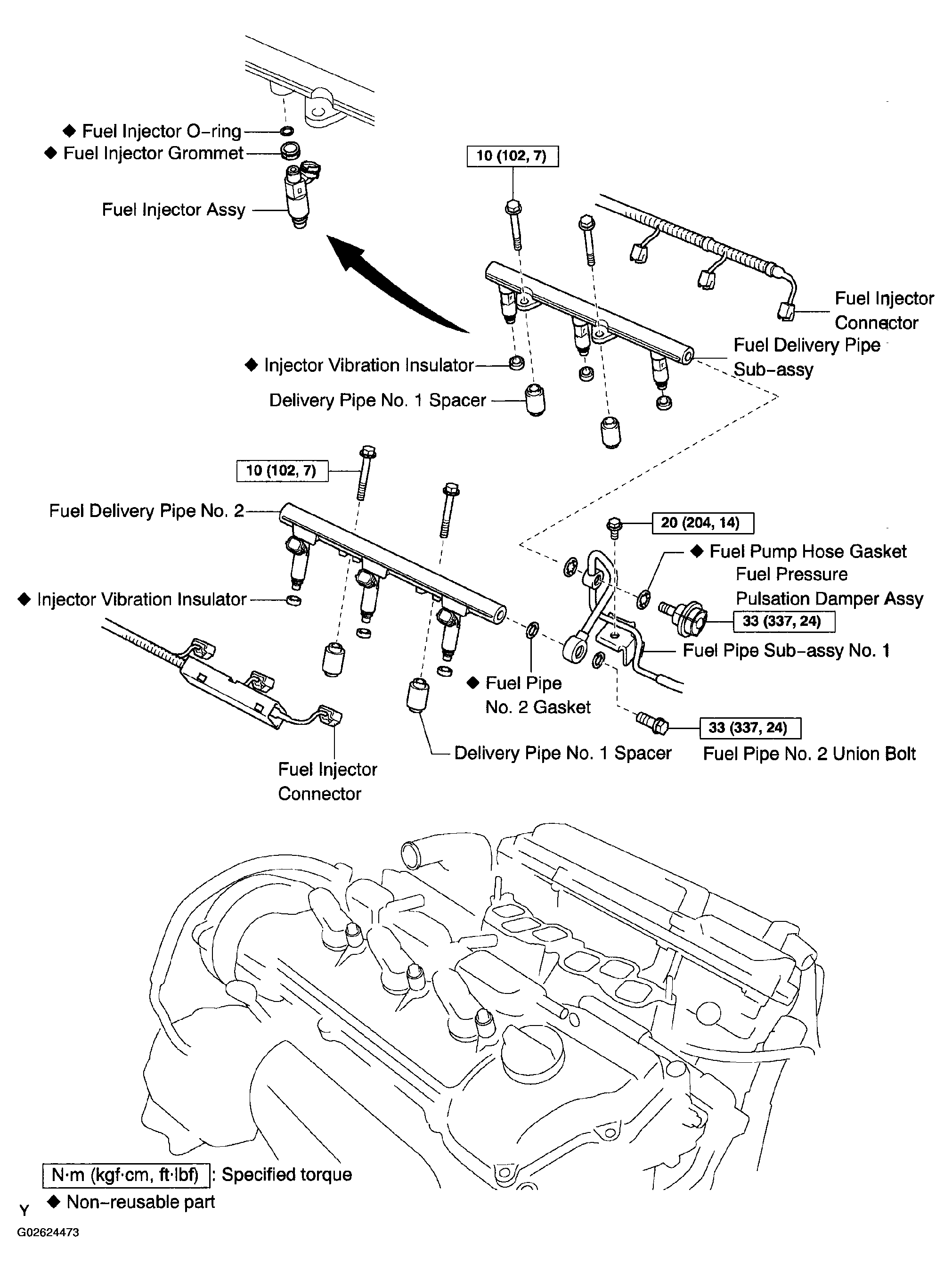

Fig 2: Fuel Injector Assy (1Mz-Fe/3Mz-Fe) Replacement Components With Torque Specifications (2 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

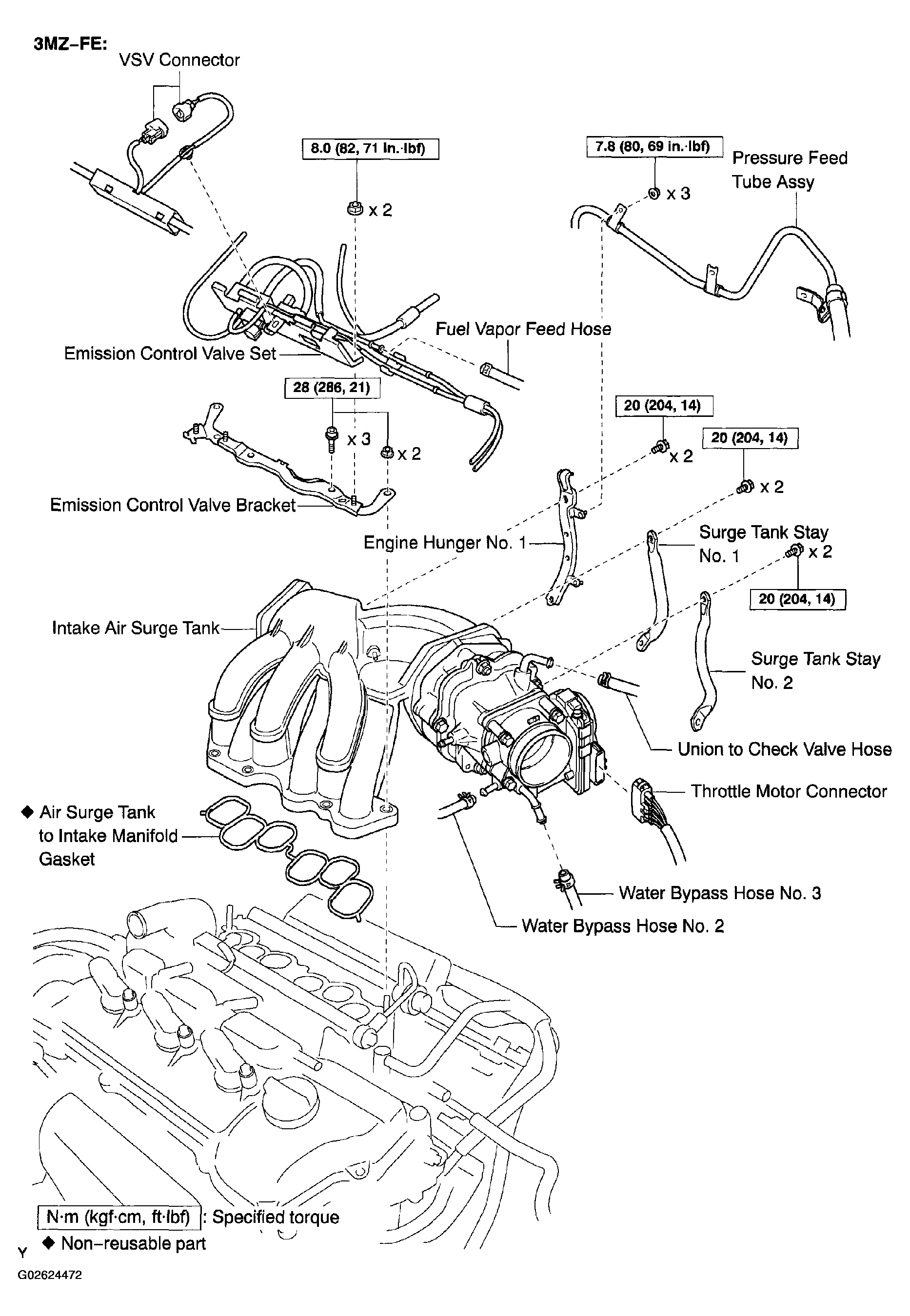

Fig 3: Fuel Injector Assy (1Mz-Fe/3Mz-Fe) Replacement Components With Torque Specifications (3 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Fig 4: Fuel Injector Assy (1Mz-Fe/3Mz-Fe) Replacement Components With Torque Specifications (4 Of 4)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
